DAPAudio PR-52 - Description of the Device; Overview; Installation

5
Ordercode: D3503
PR-52 50W
Description of the device
Features
 Power consumption: 50W RMS
 Impedance: 16 Ω
 Woofer: 5,25”
 Tweeter: 12,6 mm Mylar Dome Tweeter
 Frequency range (-10 dB): 50 Hz - 20 kHz
 Connections: speaker cable connector IN
 Color: Black
 IP rating: IP20
 Dimensions: 170 x 180 x 235 mm (LxWxH)
 Weight: 4 kg

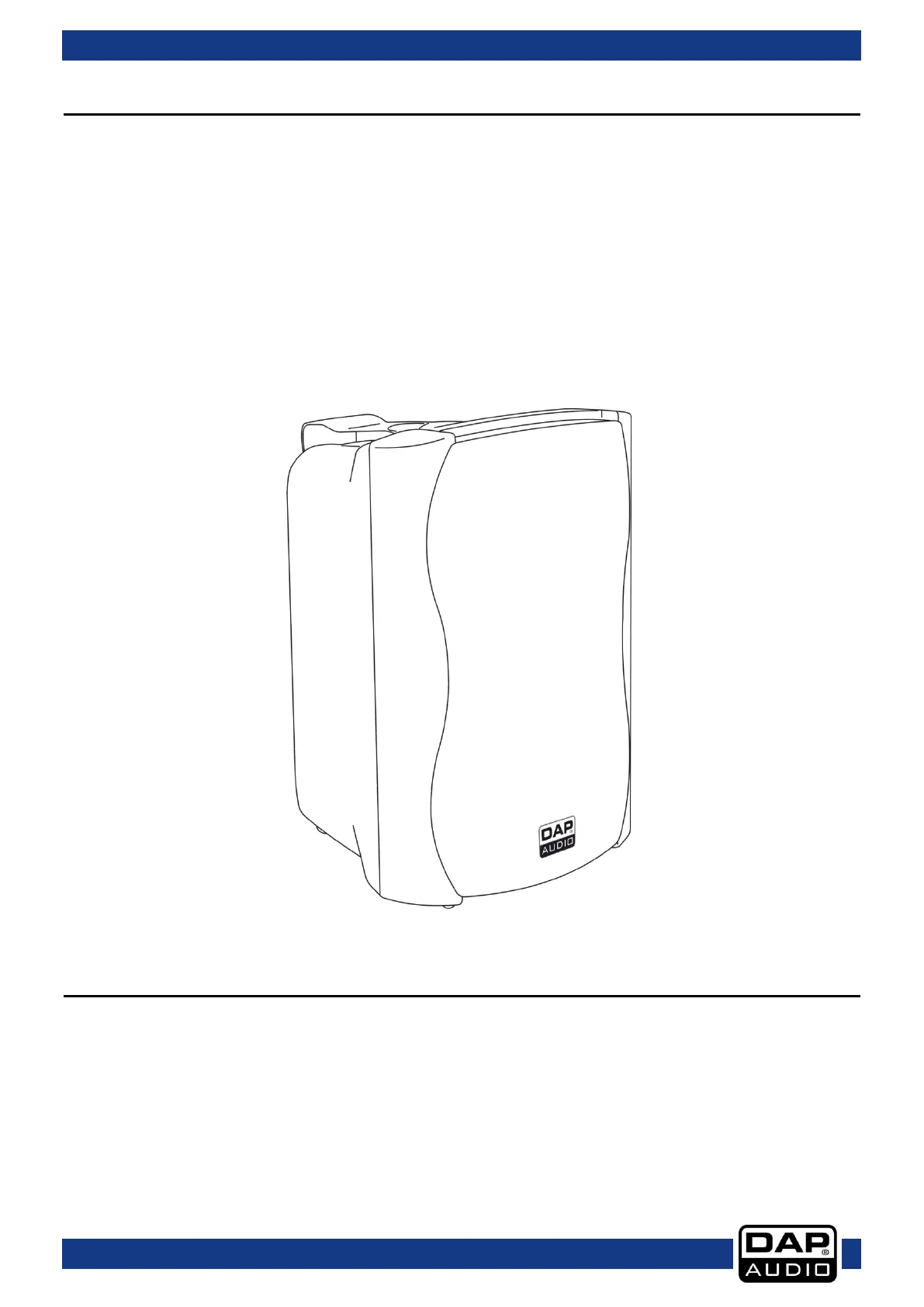

Overview
Fig. 01
Installation
Remove all packing materials from the PR-52. Check that all foam and plastic padding is removed.
Connect all cables.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
