DAS Action Series - Full-Range Speaker Specifications; Subwoofer Specifications

13
Manual del Usuario / action 500 series / User’s Manual
SPECIFICATIONS
Model
Power Amplifier
Input Type
Input Impedance
Sensitivity
Frequency Range (-10 dB)
HF Horn Coverage Angles (-6 dB)
Maximum Peak SPL at 1m
Transducers/ Replacement Parts
Enclosure Material
Color/Finish
Connectors
AC Power Requeriments
Dimensions (H x W x D)
Weight
Accessories
ACTION-M512A
1000 W peak
500 W continuous
(Class D Bi-amplified)
Balanced Differential Line
Line: 20 kOhms
Mic: 20 kOhms
Line: 1.95V (+8dBu)
Mic: 20mV (-32dBu)
60 Hz - 20 kHz
80º x 50º (Rotatable)
130 dB
LF: 12MI4 / GM-12MI4
HF: M-34 / GM-M34
Birch Plywood
Black Paint
INPUT: Female XLR
AUX INPUT: 3.5mm Mini Jack
LOOP THRU: Male XLR
AC INPUT: PowerCon
AC OUPUT: PowerCon
115V, 2.2A, 50 Hz / 60 Hz
230V, 1.1A, 50 Hz / 60 Hz
42 x 64.5 x 31.8 cm
16.5 x 25.4 x 12.5 in
19 kg (41.8 lb)
TRD-2
TRD-6
TRD-7
ACTION-508A
720 W peak
360 W continuous
(Class D Bi-amplified)
Balanced Differential Line
Line: 20 kOhms
Mic: 20 kOhms
Line: 1.95V (+8dBu)
Mic: 20mV (-32dBu)
65 Hz - 20 kHz
90º x 60º (Rotatable)
122 dB
LF: 1 x 8GV / 8GV
HF: 1 x M-34 / GM-M34
Birch Plywood
Black Paint
INPUT: Female XLR-Jack
AUX INPUT: 3.5mm Mini Jack
LOOP THRU: Male XLR
AC INPUT: PowerCon
115V, 1.6A, 50 Hz / 60 Hz
230 V, 0.8A, 50 Hz / 60 Hz
47.5 x 28.0 x 25.5 cm
18.7 x 11 x 10 in
9.9 kg (21.8 lb)
AXW-3
AXU-ACT8
TRD-2
TRD-6
TRD-7
ACTION-512A
1000 W peak
500 W continuous
(Class D Bi-amplified)
Balanced Differential Line
Line: 20 kOhms
Mic: 20 kOhms
Line: 1.95V (+8dBu)
Mic: 20 mV (-32dBu)
50 Hz - 20 kHz
90º x 60º (Rotatable)
131 dB
LF: 12MI4 / GM-12MI4
HF: M-34 / GM-M34
Birch Plywood
Black Paint
INPUT: Female XLR
AUX INPUT: 3.5mm Mini Jack
LOOP THRU: Male XLR
AC INPUT: PowerCon
115V, 2.2A, 50 Hz / 60 Hz
230V, 1.1A, 50 Hz / 60 Hz
61.8 x 38.0 x 37.8 cm
24.3 x 15.0 x 14.9 in
21 kg (46.2 lb)
ANL-2
AXU-ACT12
TRD-2
TRD-6
TRD-7
ACTION-515A
1000 W peak
500 W continuous
(Class D Bi-amplified)
Balanced Differential Line
Line: 20 kOhms
Mic: 20 kOhms
Line: 1.95V (+8dBu)
Mic: 20mV (-32dBu)
45 Hz - 20 kHz
90º x 60º (Rotatable)
131 dB
LF: 15MI4 / GM-15MI4
HF: M-34 / GM-M34
Birch Plywood
Black Paint
INPUT: Female XLR
AUX INPUT: 3.5mm Mini Jack
LOOP THRU: Male XLR
AC INPUT: PowerCon
115V, 2.2A, 50 Hz / 60 Hz
230V, 1.1A, 50 Hz / 60 Hz
71.8 x 44.4 x 37.5 cm
28.3 x 17.5 x 14.8 in
24 kg (52.8 lb)
ANL-2
TRD-2
TRD-6
TRD-7
Model
Power Amplifier
Input Type
Input Impedance
Sensitivity
Frequency Range (-10 dB)
HF Horn Coverage Angles (-6 dB)
Maximum Peak SPL at 1m
Transducers/ Replacement Parts
Enclosure Material
Color/Finish
Connectors
AC Power Requirements
Dimensions (H x W x D)
Weight
Accessories
ACTION-525A
1000 W peak
500 W continuous
(Class D Bi-amplified)
Balanced Differential Line
Line: 20 kohms
Mic: 20 kOhms
Line: 1.95V (+8dBu)
Mic: 20mV (-32dBu)
45 Hz - 20 kHz
90º x 60º (Rotatable)
134 dB
LF: 2x 15MI / GM-15MI
HF: M-44 / GM-M44
Birch Plywood
Black Paint
INPUT: Female XLR
AUX INPUT: 3.5mm Mini Jack
LOOP THRU: Male XLR
AC INPUT: PowerCon
115V, 2.2A, 50 Hz / 60 Hz
230V, 1.1A, 50 Hz / 60 Hz
108.7 x 50.2 x 50.2 cm
42.8 x 19.8 x 19.8 in
41 kg (90.2 lb)
ANL-2
ACTION-S18A
1500 W peak
750 W continuous
(Class D)
Balanced Differential Line
Line: 20 kOhms
Line: 1.95V (+8dBu)
35 Hz - 125 Hz
(variable LPF)
134 dB
LF: 18FW4 / GM-18FW4
Birch Plywood
Black Paint
INPUT: 2x Female XLR
LOOP THRU: 2x Male XLR
AC INPUT: Male IEC
115V, 2.8A, 50 Hz / 60 Hz
230V, 1.4A, 50 Hz / 60 Hz
71.8 x 54.0 x 67.0 cm
28.3 x 21.3 x 26.4 in
40.5 kg (89.1 lb)
TRD-6
TRD-7
ACTION-218A
3200 W peak
1600 W continuous
(Class D)
Balanced Differential Line
Line: 20 kOhms
Line: 1.95V (+8dBu)
35 Hz - 125 Hz
(variable LPF)
140 dB
LF: 2x 18FW4 / GM-18FW4
Birch Plywood
Black Paint
INPUT: 2x Female XLR
LOOP THRU: 2x Male XLR
AC INPUT: PowerCon
AC OUTPUT: PowerCon
115V, 6A, 50 Hz / 60 Hz
230V, 3A, 50 Hz / 60 Hz
106.7 x 54.0 x 67.0 cm
42.0 x 21.3 x 26.4 in
63 kg (138.6 lb)
TRD-6
TRD-7
ACTION-S118A
3200 W peak
1600 W continuous
(Class D)
Balanced Differential Line
Line: 20 kOhms
Line: 1.95V (+8dBu)
35 Hz - 125 Hz
(variable LPF)
137 dB
LF: 1x 18LX / GM-18LX
Birch Plywood
Black Paint
INPUT: 2x Female XLR
LOOP THRU: 2x Male XLR
AC INPUT: PowerCon
AC OUTPUT: PowerCon
115V, 3.6A, 50 Hz / 60 Hz
230V, 1.8A, 50 Hz / 60 Hz
79.1 x 69.0 x 56.6 cm
31.1 x 27.2 x 22.3 in
55 kg (121 lb)
TRD-6
TRD-7
DAS Audio Group, S.L., continuously strives to enhance its products through investigation and development. All specifications are subject to change without
prior notice.

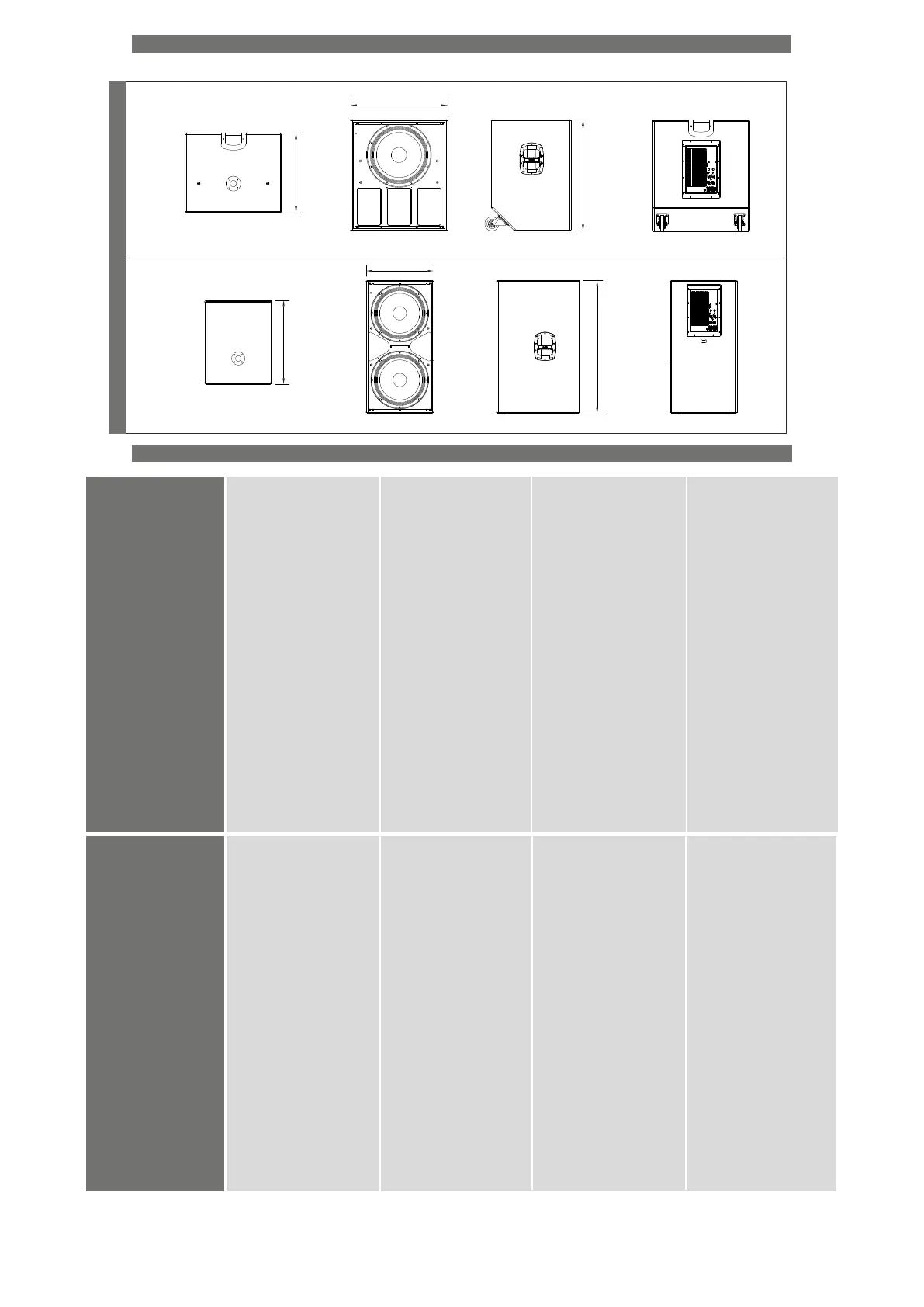

ACTION-S118A
Rear View
Left View
Front View
ALL DIMENSIONS IN MILLIMETRES
Top View
ACTION-S218A
Rear View
Left View
Front View
Top View
W
H
D
W
H
D
LINE DRAWINGS (cont'd)
