Shodex RI-101 3 Installation Procedure
3 Installation Procedure
3.1 Shodex RI-101 detector communication
The Shodex RI-101 is controlled by serial (RS232) communication. It uses
a standard serial DB9F-DB9M straight cable (p/n SK02) described in the
picture below.

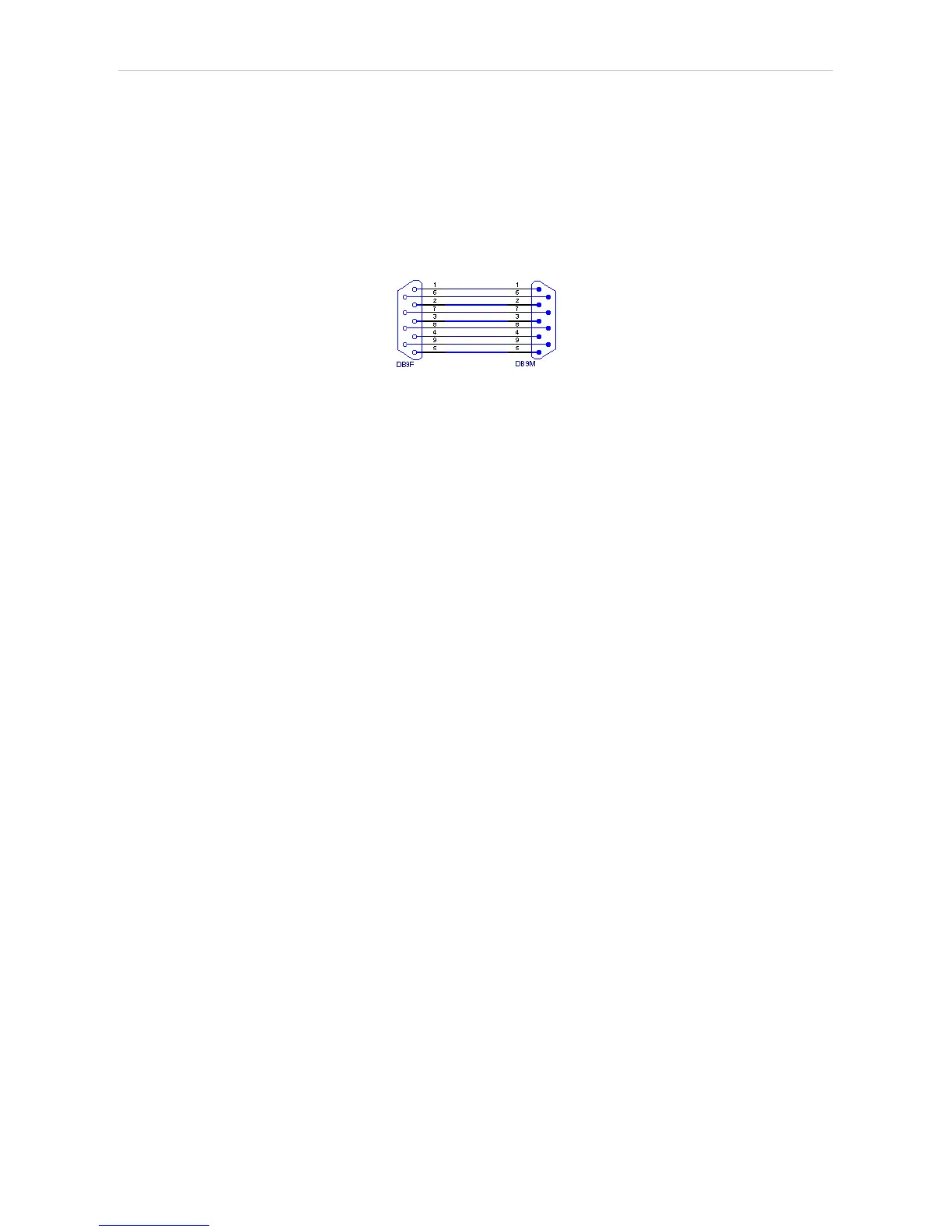

Fig 2: Serial DB9F-DB9M straight cable
