DKG-116 User Manual V-02 (
11.08.2010)

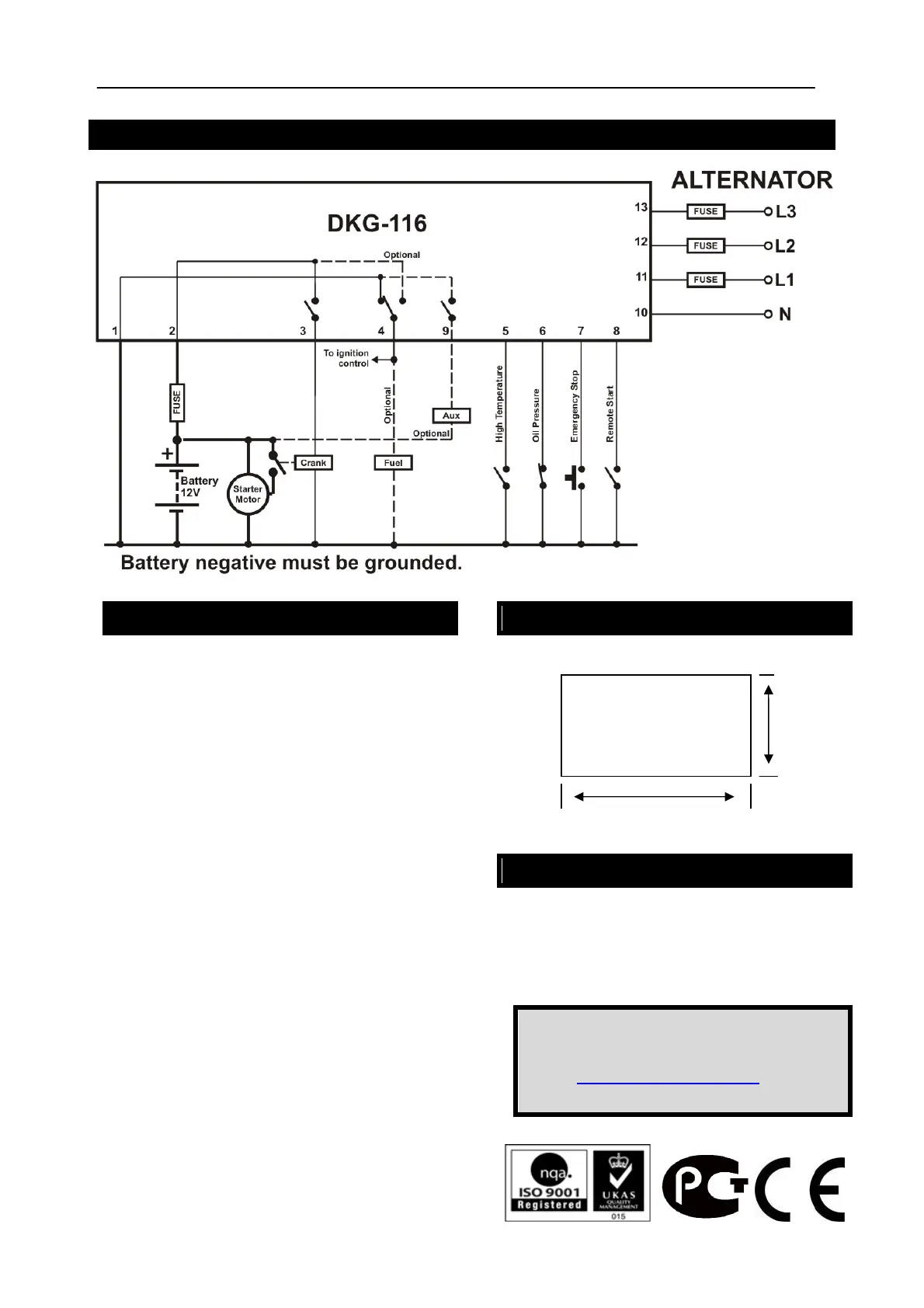

CONNECTION DIAGRAM
TECHNICAL SPECIFICATIONS
Alternator voltage: 15 to 300 V-AC (Ph-N)
Alternator frequency: 50 or 60 Hz nominal.
Measurement Accuracy: 0.5% + 1 digit
Overspeed: nominal frequency + 14%
(+24% overshoot)
Underspeed: 30 Hz
Crank time: 10 sec.
Crank rest: 10 sec.
Crank attempts: 3
Stop timer: 10 sec.
Cooldown timer: 30 sec.
Holdoff timer: 10 sec.
DC Supply Range: 9.0 to 16.0 V-DC
Cranking dropouts: survives 0 V for 100ms.
Typical Standby Current: 12mA-DC (display off)
Maximum Operating Current: 130 mA-DC
Fuel and Crank outputs: 10A @ 12V-DC
Auxiliary Output: 1A @ 12V-DC (negative pulling
protected semiconductor output)
Operating temp.: -40°C (-40°F) to 80 °C (176°F).
Maximum humidity: 95% non-condensing.
Dimensions: 102 x 55 x 40 mm (WxHxD)
Packed weight: 140 g
Case Material: High Temp. ABS/PC (UL94-V0)
IP Protection: IP65 (front panel), IP30 (rear)
Conformity (EU directives)
-2006/95/EC (low voltage)
-2004/108/EC (EMC)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)
PANEL CUTOUT DIMENSIONS
PACKAGING INFORMATION
Pieces per Package: 24
Package Size: 280 x 170 x 215mm (LxWxH)
Package Weight: 3.6 kg
