Datakom DKG-116 - Programming Parameter Adjustment; Adjusting Low AC Voltage Limit; Adjusting High AC Voltage Limit; Setting Nominal Frequency and Oil Input

DKG-116 User Manual V-02 ( 11.08.2010)

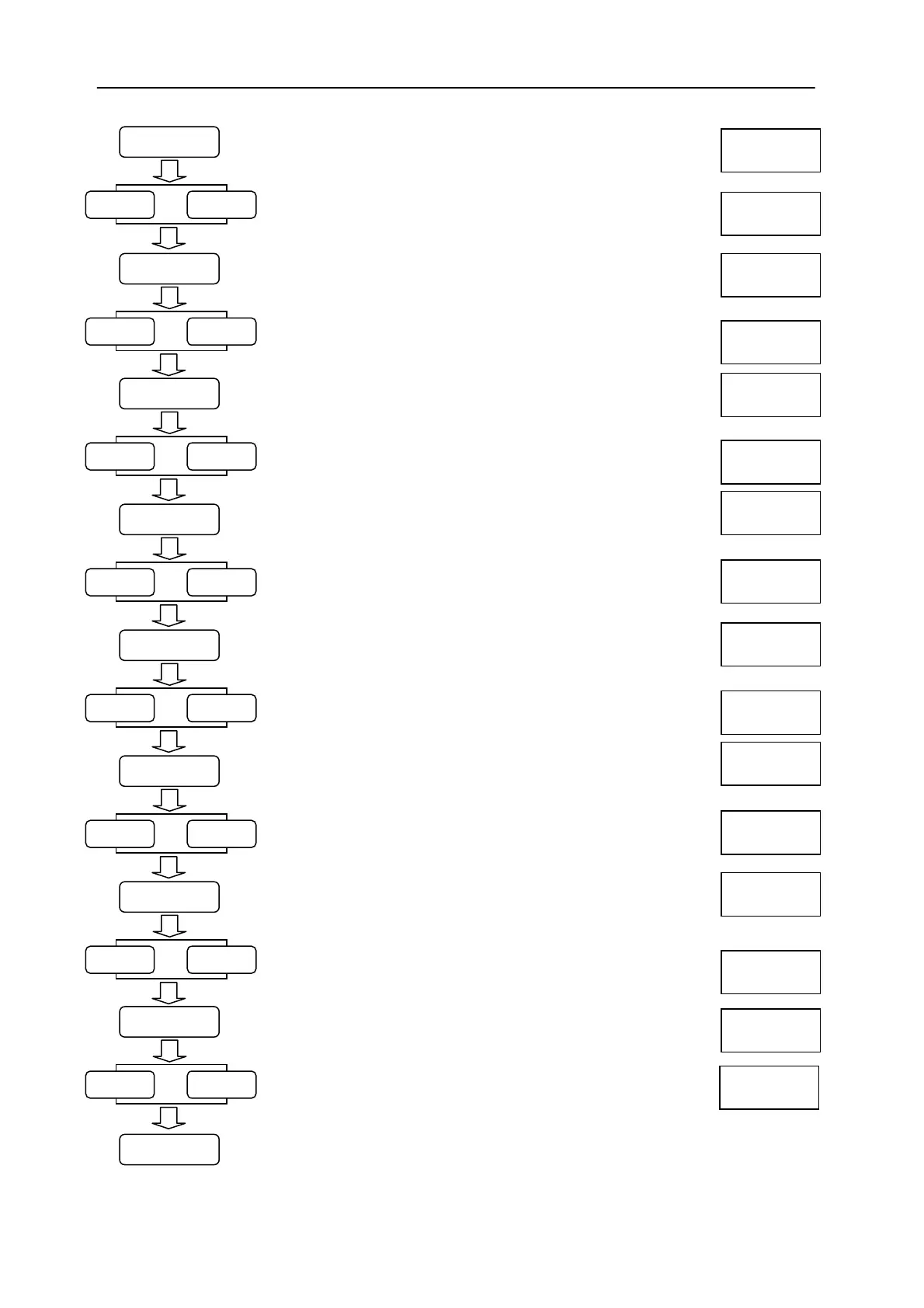

When genset is in off mode; press
MENU
button
for 3 sec. to enter program mode and display the
Low AC Voltage limit.
Press
RUN
or
STOP
buttons until requested value
is displayed.
Press
MENU
button for saving the Low AC Voltage
limit and displaying the High AC Voltage limit.
Press
RUN
or
STOP
buttons until requested value
is displayed.
Press
MENU
button for saving the High AC Voltage
limit and displaying the Nominal frequency
parameter.
Press
RUN
or
STOP
buttons until requested value
is displayed.
Press
MENU
button for saving the Nominal
frequency parameter and displaying the Oil input
type.
Press
RUN
or
STOP
buttons until requested value
is displayed.
Press
MENU
button for saving the Oil input type
and displaying the Fuel output type.
Press
RUN
or
STOP
buttons until requested value
is displayed.
Press
MENU
button for saving the Fuel output type
and displaying the Relay-3 function.
Press
RUN
or
STOP
buttons until requested value
is displayed.
Press
MENU
button for saving Relay-3 function and
displaying the Choke timer.
Press
RUN
or
STOP
buttons until requested value
is displayed.
Press
MENU
button for saving the Choke timer
and displaying the number of phases.
Press
RUN
or
STOP
buttons until requested value
is displayed.
Any time on settings, press
MENU
button for 3 sec.
to exit from program mode.
U-Lo
U-LoU-Lo
U-Lo
170
170 170
170
U-
U-U-
U-
HI
HIHI
HI
300
300 300
300
nfrq
nfrqnfrq
nfrq
0
0 0
0
OIL
OILOIL
OIL
0
0 0
0
FUEL
FUELFUEL
FUEL
0
0 0
0
rLy3
rLy3rLy3
rLy3
0
0 0
0
CHOt
CHOtCHOt
CHOt
0
0 0
0
MENU
RUN
STOP
MENU
RUN
STOP
MENU
RUN
STOP
MENU
RUN
STOP
MENU
RUN
STOP
MENU
RUN
STOP
MENU
RUN
STOP
MENU
RUN
STOP
MENU
0
0 0
0
3-1P
3-1P3-1P
3-1P
