Datalogic BA100 User Manual

CBX800 INSTALLATION MANUAL
29
Fieldbus Gateway

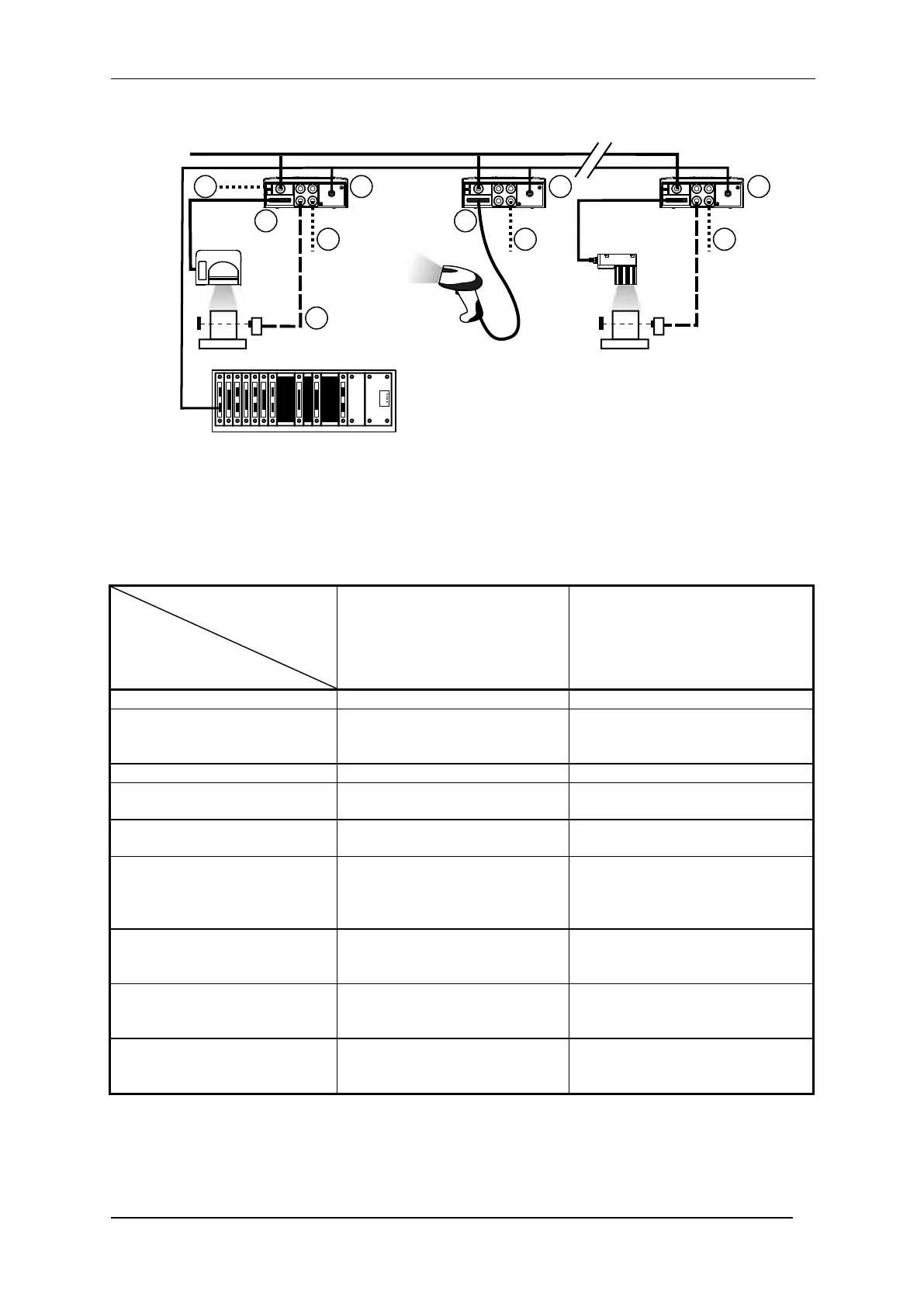

Layout
CBX800
Parameters
sw package 003 and later
Fieldbus Gateway
(ex: Profibus
interface board = BM3x0)
Note
Net Type Rotary Switch
2
Address Rotary Switches
X100 = 0, 1
X10 = 0..9
X1 = 0..9
Address Range= 00..126
Topology Role
Other
System Layout / Host Port
Type
Profibus
Communication Settings /
Gateway / Status
<checked>
Communication Settings /
Gateway / Bus
Communication / Node
Address
Aligned to the Fieldbus
Master configuration
Communication Settings /
Data Source Serial Port / Data
Destination: Gateway
<checked>
Communication Settings /
Data Source Serial Port /
Expected Termination String
Aligned to the Data Source
device configuration
if Communication Settings /Data
Source Serial Port / Send Data On =
Termination String
Communication Settings /
Data Source Serial Port / Line
Parameters/ (all parameters)
Aligned to the Data Source
device configuration
Fieldbus Slave Nodes
Fieldbus Master (Host)
 CBX800 Source Interface (RS232)
 CBX800 Host Interface>BMxxx Fieldbus Module
 CBX500 Main Interface>BMxxx Fieldbus Module
 External Trigger (for On-Line Mode)
 Host Aux for CBX800 Configuration
 Source Aux for Source Reader Configuration
 Reader Auxiliary Interface for Reader Configuration
1
1
CBX800
CBX800
CBX500
2
2
Power
3
4
5
6
Matrix 410™
DS8100A
Hand-Held
Reader
7
5
