System Connections
8 BC 9180-BT Cradle
Non-Ethernet Connection

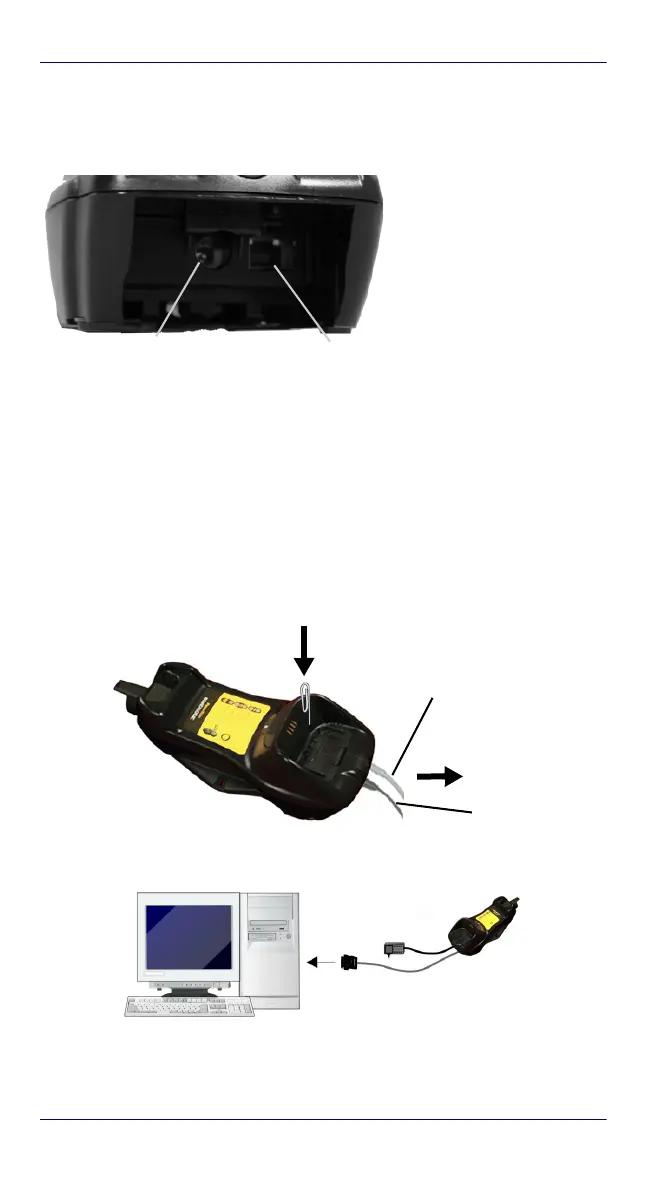

The BC9xx0-BT cradle provides a multi-interface connector and a power sup-
ply connector as shown:
Connecting and Disconnecting the Multi-Interface Cable
The BC9xx0-BT can be connected to a Host by means of a multi-interface
cable, which must be simply plugged into the Host connector, visible on the
front panel of the cradle.
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle. Push down on
the clip while unplugging the cable. Refer to the following figures:
RS-232
Power Supply
Multi-Interface Connector
Power
Interface Emulation
to Host
Connecting/Disconnecting the Cable
