Quick Reference Guide
1
Using the BCXX0-BT Base Station
The BC9XX0-BT base station, when paired with one or more PowerScan™
BT9X00 readers, builds a Cordless Reading System for the collection, decoding
and transmission of bar code data. It can be connected to a Host PC via
RS232, USB, or KBD Wedge, and is suited for single-cradle layouts. The
BC91X0 models also provide a spare battery charger slot.

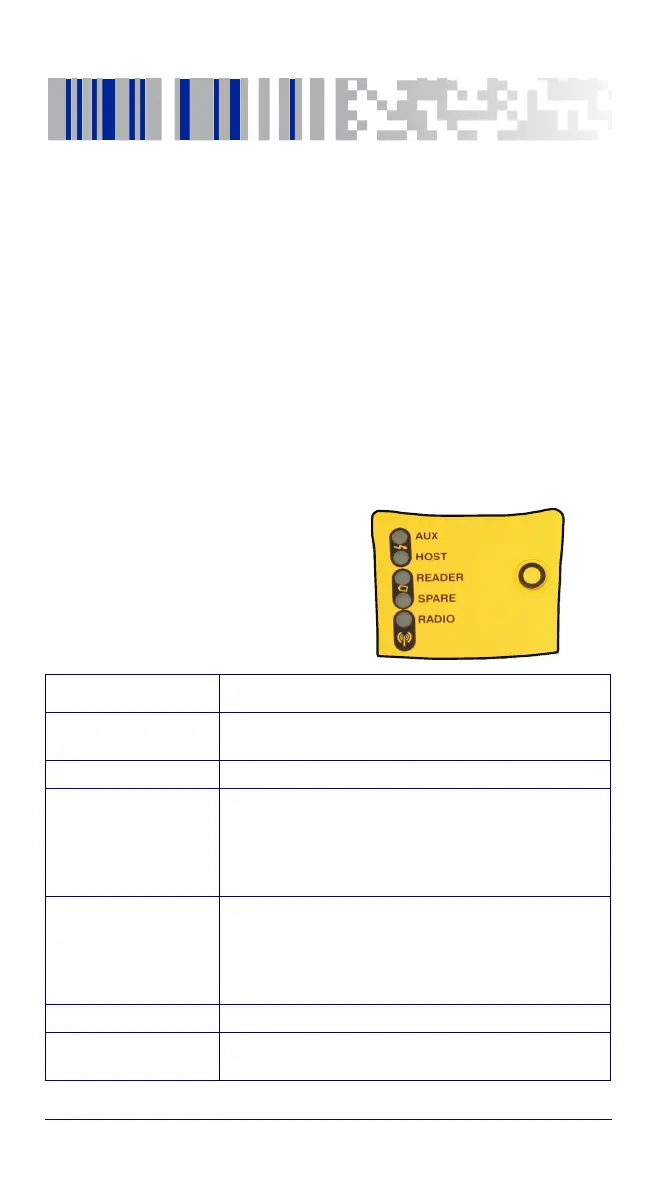

The label on the cradle contains LED indicators and a multi-function button.
When the button is pressed for less than 5 seconds, the cradle will transmit a
"broadcast" message. When the broadcast is sent, all properly configured
scanners (Radio RX Timeout set to keep the radio "awake") that are linked to
that base and within radio range coverage will emit a beep and blink within 5
seconds. This functionality is useful to:
• verify which scanners are linked to a certain base station
• detect a scanner forgotten somewhere
When the button is pressed for longer
than 5 seconds, all paired scanners will
be unpaired.
The LEDs signal the BC9XX0-BT status,
as shown in the table below:
LED STATUS
Aux
Yellow On = BC9XX0-BT is powered through an external power
supply.
Host Yellow On = BC9XX0-BT is powered by the Host.
Reader
Green On = the reader battery is completely charged.
Red On = the reader battery is charging.
Orange Blinking = reader battery fault - replace battery.
Red / Green Alternatively Blinking = charging error - see PRG.
Off = reader not in the cradle or not properly inserted.
Spare
(BC91X0-BT models only)
Green On = the spare battery is completely charged.
Orange Blinking = spare battery fault - replace spare battery.
Red/Green Alternatively Blinking = charging error - see PRG.
Off = no spare battery in the housing or battery not fully
inserted.
Radio Yellow Blinking = radio activity.
Ethernet
(Ethernet models only)
Green Blinking = Ethernet activity.
