Mounting the BC9XX0-BT Cradle
6 BC 9xx0-BT Cradle
System Connections

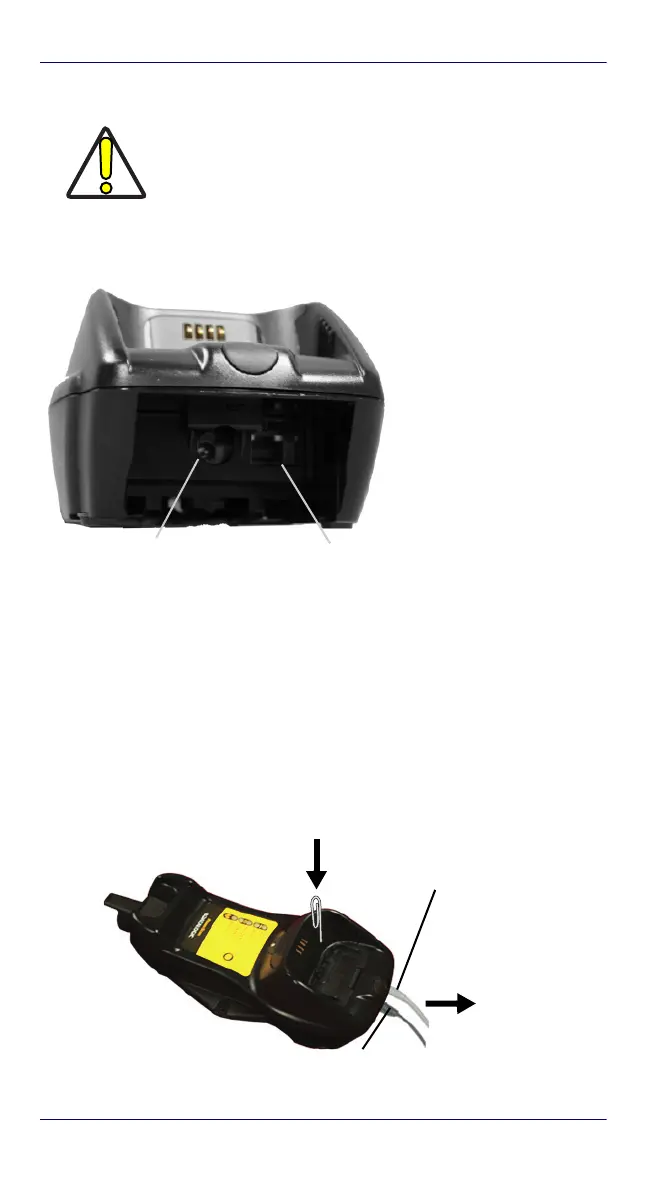

The BC9XX0-BT cradle provides a multi-interface connector and a power sup-
ply connector as shown:
Connecting and Disconnecting the Interface Cable
The BC9XX0-BT can be connected to a Host by means of a multi-interface
cable, which must be simply plugged into the Host connector, visible on the
front panel of the cradle.
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle (shown below).
Push down on the clip while unplugging the cable. Refer to the following fig-
ure:
CAUTION
Connections should always be made with power off!
Power Supply
Multi-Interface Connector
Power
Interface
Emulation to Host
Connecting/Disconnecting the Cable
