Replacing the Scan Window
Quick Reference Guide 15
Replacing the Scan Window
If the Scan Window becomes scratched, broken or contaminat-
ed with heavy dust, fix it by removing the Nose Boot and clean-
ing or installing a new window. Datalogic offers a replacement
window as an orderable accessory.
To replace the Scan Window, first remove power from the im-
ager then hold the imager with the Scan Window facing up.
Gently pull off the Nose Boot and tilt the imager to one side to
remove the window.
Holding it by its edges, carefully place the clean replacement
Scan Window in position and secure it in place by reinstalling
the Nose Boot.
CAUTION
Proceed to the next step immedi-
ately. DO NOT leave the interior of
the imager exposed.

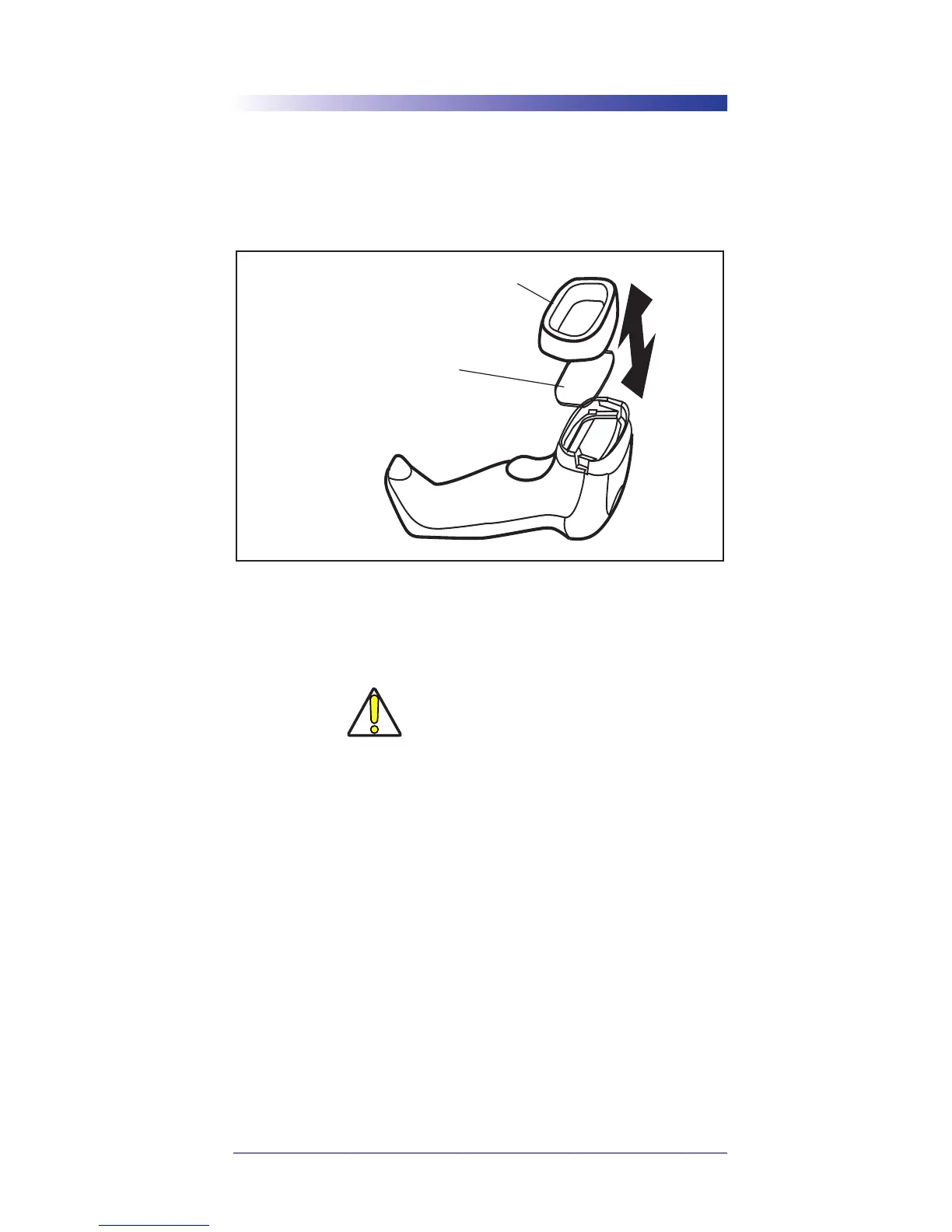

Nose Boot
Scan Window

Datalogic QuickScan i QD2100 Specifications

General

Scan speed	8 sec/page
Wavelength	610 nm
Tilt angle range	-65 - 65 °
Decoding standards	1D / GS1 DataBar China Post GS1 DataBar Expanded/ Stacked/ Stacked Omnidirectional
Dimensions (WxDxH)	170 x 66 x 71 mm
Standard interfaces	RS-232, USB, Keyboard wedge
Input voltage	5 V
Power consumption	340 mA
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	121.9 g
