When equipped with the Internal Rewind option, labels can be rewound or, with the addition of a
Peel and Present option, dispensed automatically for application. If equipped, follow the
instructions below to begin using the Internal Rewinder:

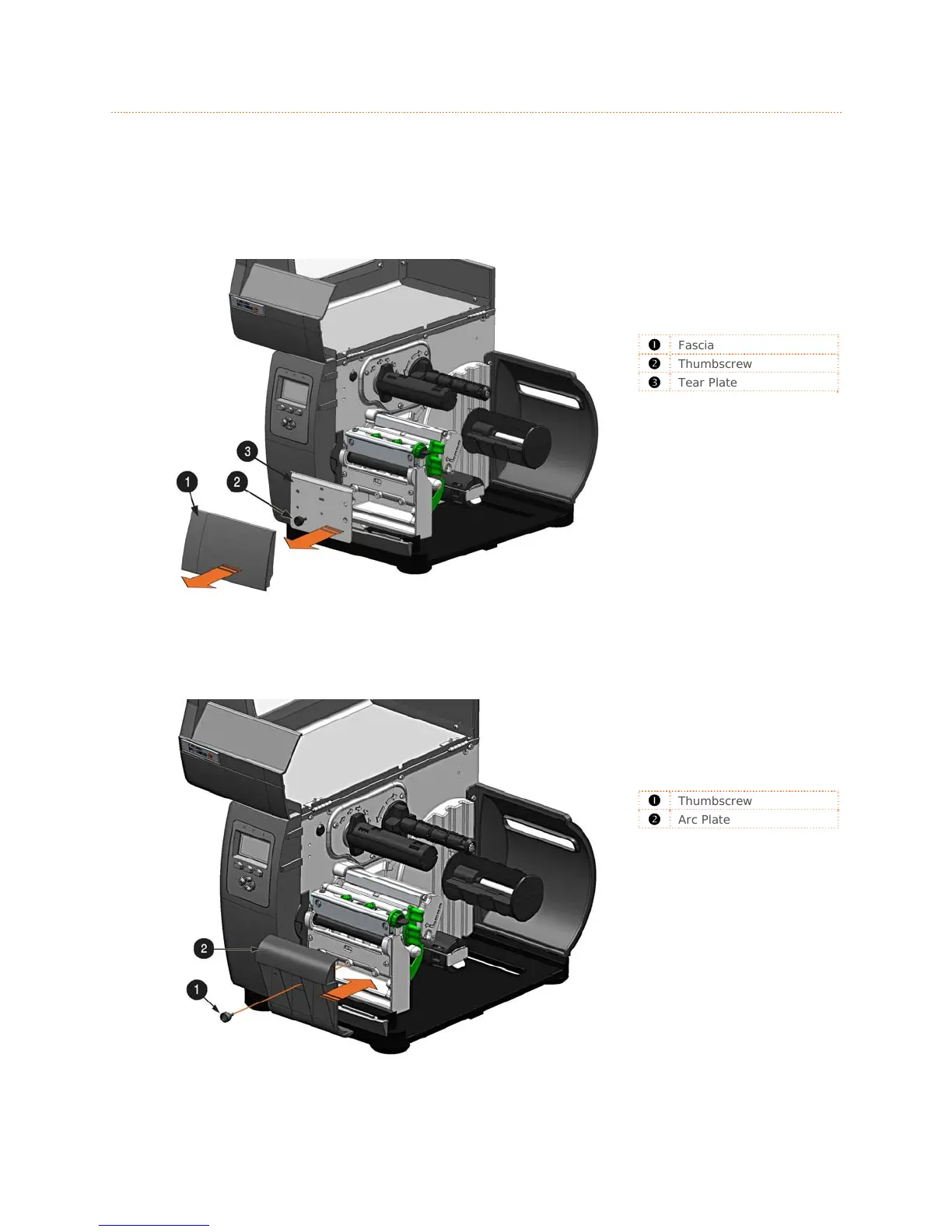

1. Press down then pull outward to remove the Front Fascia.
2. Remove Thumbscrew and Tear Plate.
Fascia
Thumbscrew
Tear Plate
3. Place the Ar
c Plate on the front of the printer (as shown below) and tighten the Thumbscrew
to secure it.
Thumbscrew
Arc Plate
To Next Page
