Installing the Capture Card
You are likely to need a at blade and /or a cross head screwdriver for the installation of the
VisionSC-HD4+ card; it would be useful to have these to hand before you begin.
• Power down the PC (including peripherals), switch o at the mains and disconnect all the cables
connected to the computer, noting the positions for accurate reconnection
• Remove the PC cover
• Locate a vacant PCI Express slot (x4 or higher) on the motherboard and remove the blanking plate
(retain all screws)
If you are in doubt consult your motherboard documentation to correctly identify a PCI Express slot. If
the card is forced into a 32 or 64 bit PCI or PCI-X slot it will be irreparably damaged when the system is
powered up and the warranty will be void.
• Reconnect all cables to the PC then connect input cables (not supplied) distributing the video source
signal to a connectors on the VisionSC-HD4+ capture card
• Power up the PC and commence the software installation
How to Connect Input Sources

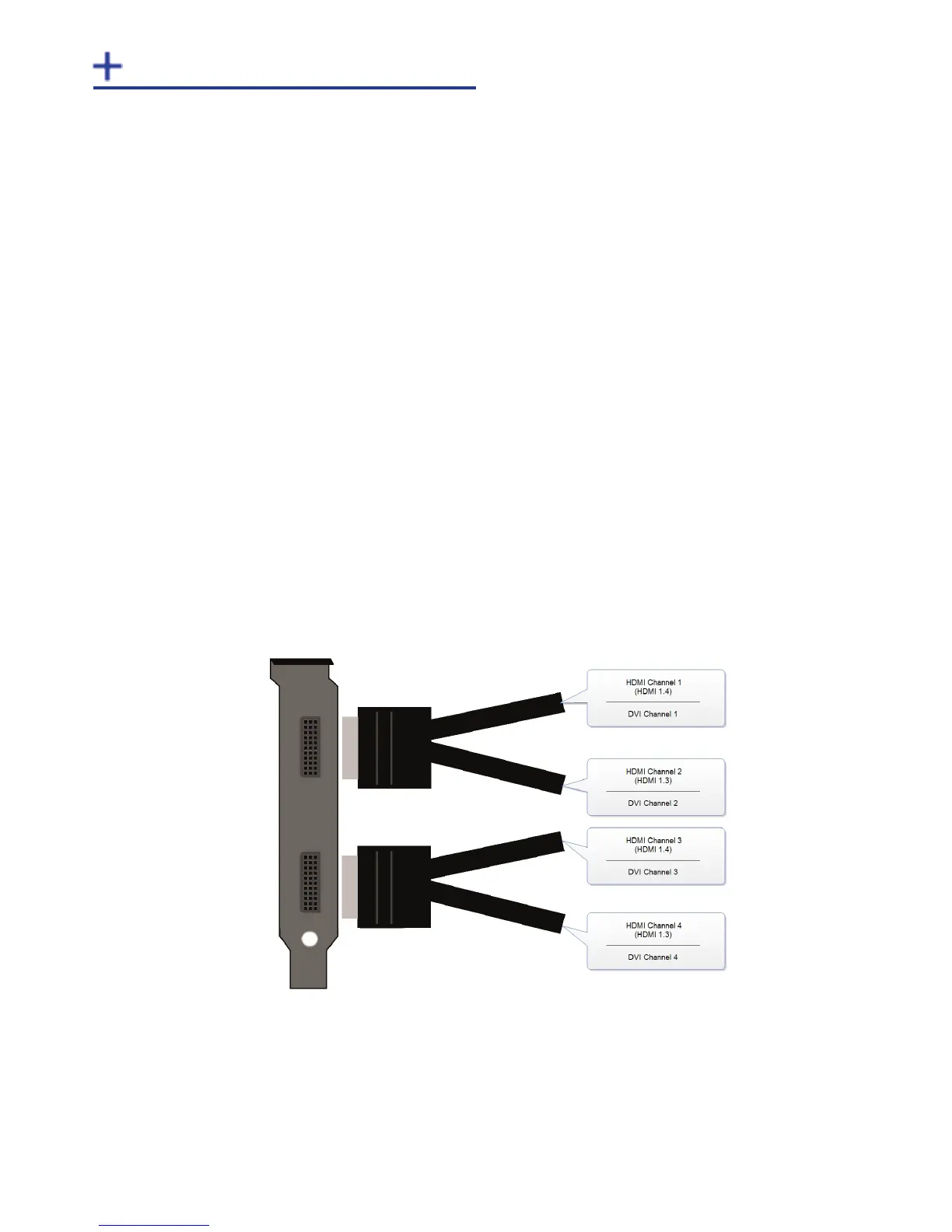

The VisionSC-HD4+ card has two DSM59 connectors, the connectors support DVI or HDMI using the
supplied splitter cables where required.
9
Fig.4
Care should be taken when connecting the splitter cables to the VisionSC-HD4+ card, there is no
requirement to force the cable into the connector. Forcing the cable into the connector could result in
damage not covered by the warranty.
