Datapath VisionSC-HD4+ User Manual

Quad Channel Video Capture
Channel TDMS Signalling HDCP Max Resolution Pixel Clock MHz
1 HDMI 1.4a HDCP 1.4 4096x2160 297
2 HDMI 1.4a HDCP 1.4 2096x2096 165
3 HDMI 1.4a HDCP 1.4 4096x2160 297
4 HDMI 1.4a HDCP 1.4 2096x2096 165
Audio Capture
• Embedded audio support across all four channels.
Datapath Vision Performance Driver
• Multiple cards per system, 16 streams per card
• Frame sync and time stamping
• Automatic signal detection
• Direct Show interface
• Datapath RGBEasy API
Models
VisionSC-HD4+/H - Capture card with 2 x HDMI splitter cables.
VisionSC-HD4+/D - Capture card with 2 x DVI splitter cables.
4

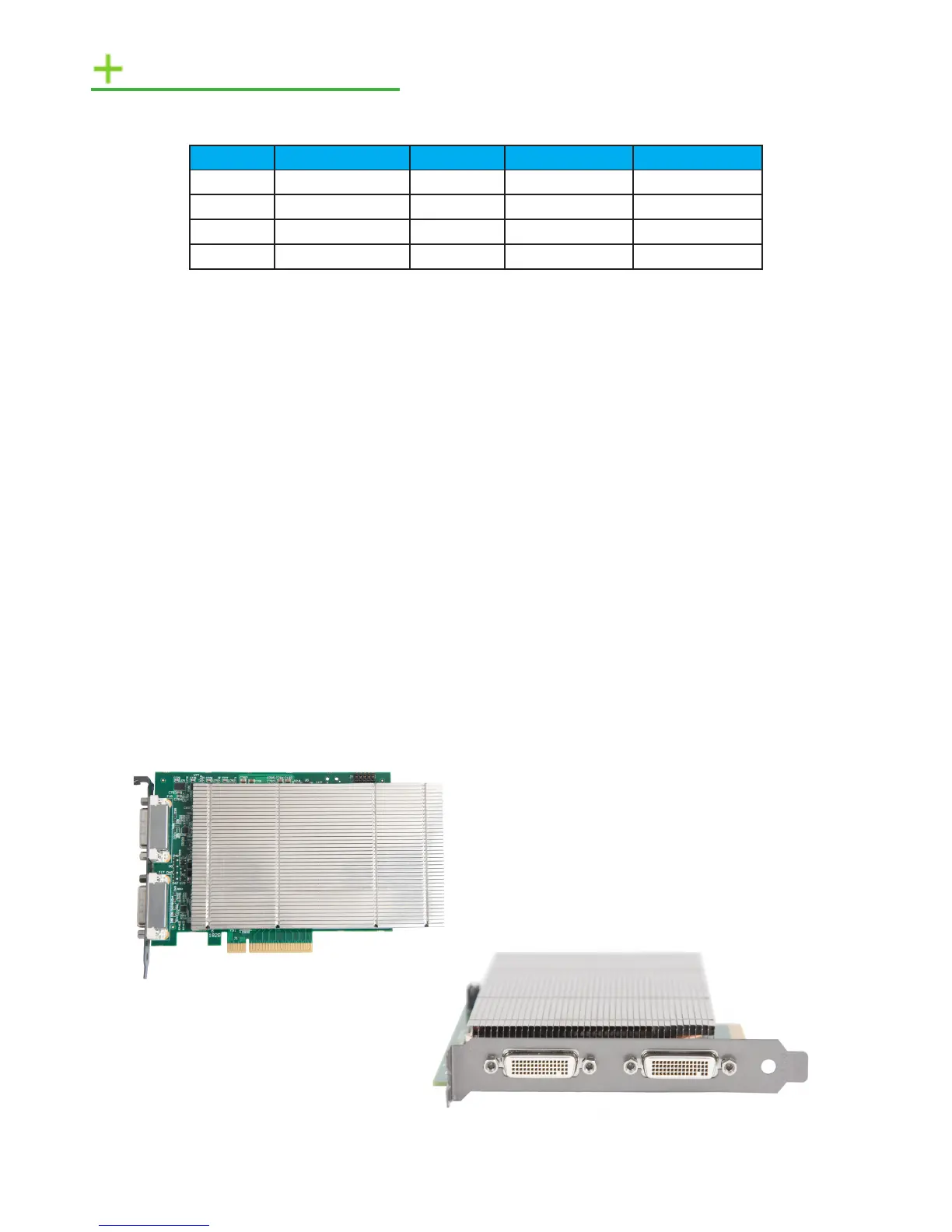

Hardware Overview
Fig.1
Fig.2

Datapath VisionSC-HD4+ Specifications

General

Brand	Datapath
Model	VisionSC-HD4+
Category	PCI Card
Language	English
