Datapath VisionSDI2 User Manual

Connections

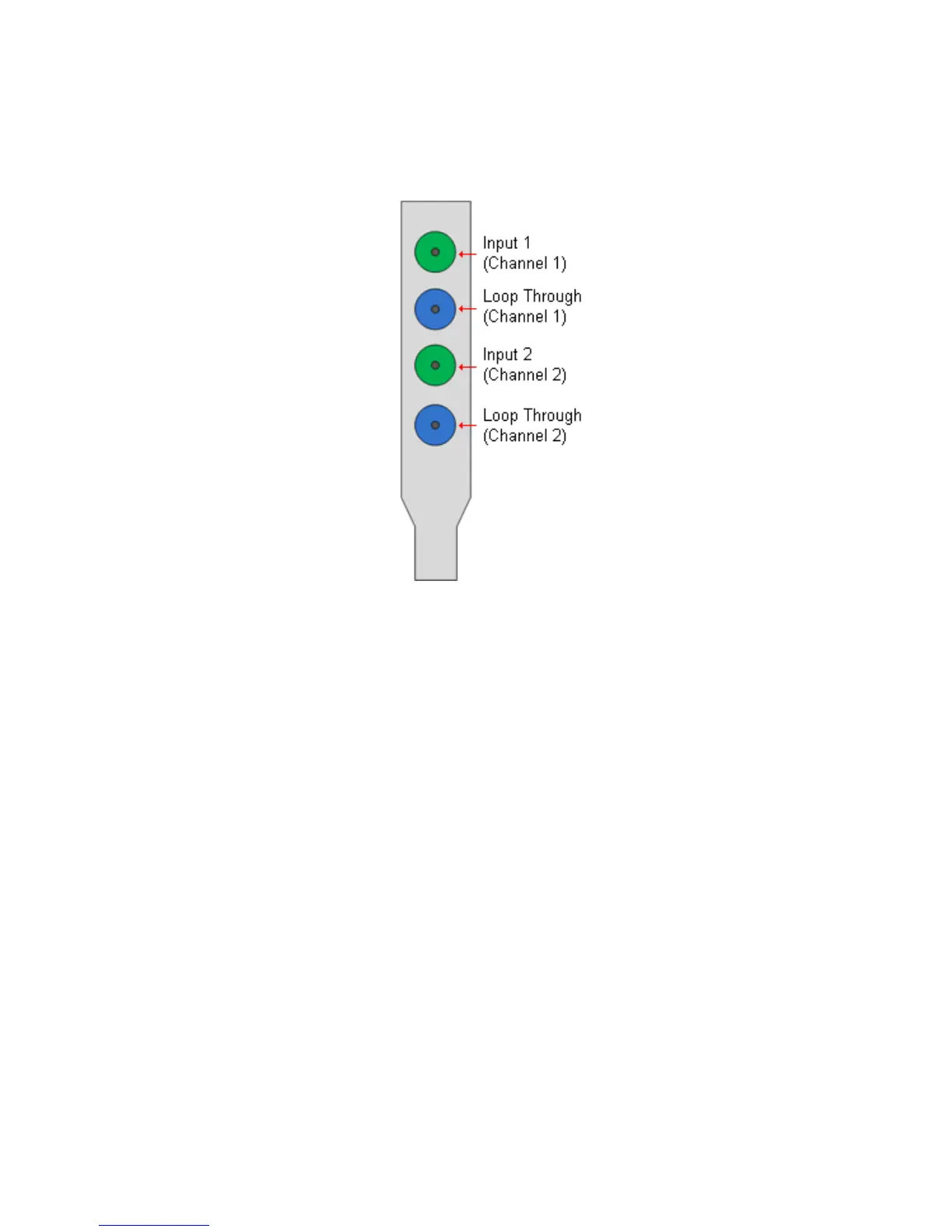

The VisionSDI2 card has four BNC type connectors for two separate, simultaneous inputs and two Loop
Through outputs. The connectors are identied by coloured LED’s; green for input and blue for Loop
Through outputs:
Supported Formats
The VisionSDI2 card supports the following formats:
• SD-SDI (480i/576i)
• HD-SDI (up to 1080i)
• 3G-SDI (upto 1080p)
Cable Length
The VisionSDI2 supports cable lengths of up to 150m for 3G-SDI and 300m for SD-SDI. These gures are
based on using low loss co-ax cables (Belden 1694A).
6

Datapath VisionSDI2 Specifications

General

Brand	Datapath
Model	VisionSDI2
Category	PCI Card
Language	English
