Installing Multiple Cards
Multiple cards can be installed in a system providing a large number of capture channels. Combinations of
Vision capture cards in the same machine are supported by the driver.
In order to control the order in which the driver uses the cards, it is recommended when installing multiple

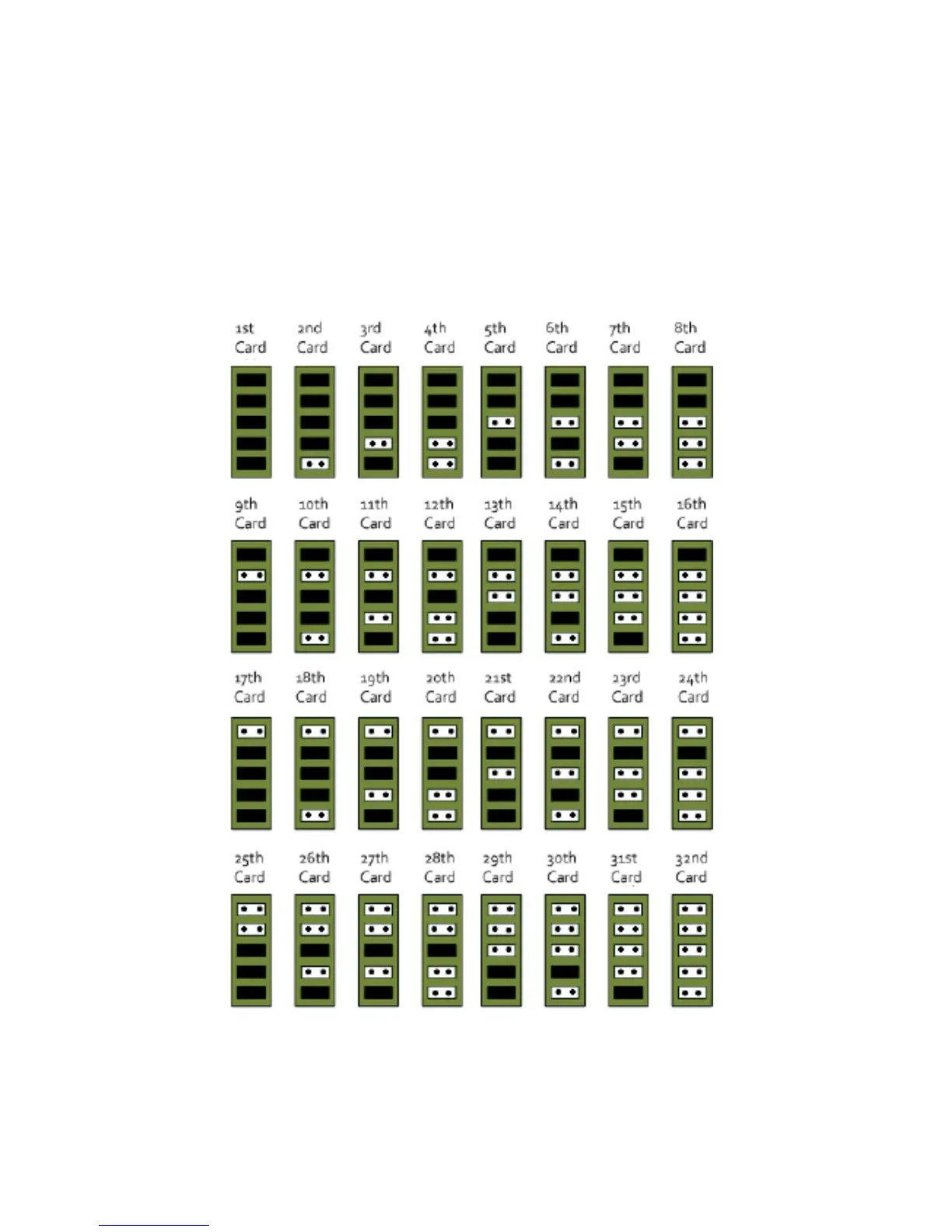

cards that the J6 links on the VisionSDI2 are congured. The example below shows the jumper link
settings for up to 32 cards in a single system. When two cards share the same link settings, their order is
determined by the PCI bus.
7
