2. INSTALLATION
2.1 MOUNTING THE BWS-T2
The BWS-T2 must be mounted in an enclosure with at least an IP54
rating. The dimensions of the BWS-T2 are given in the following

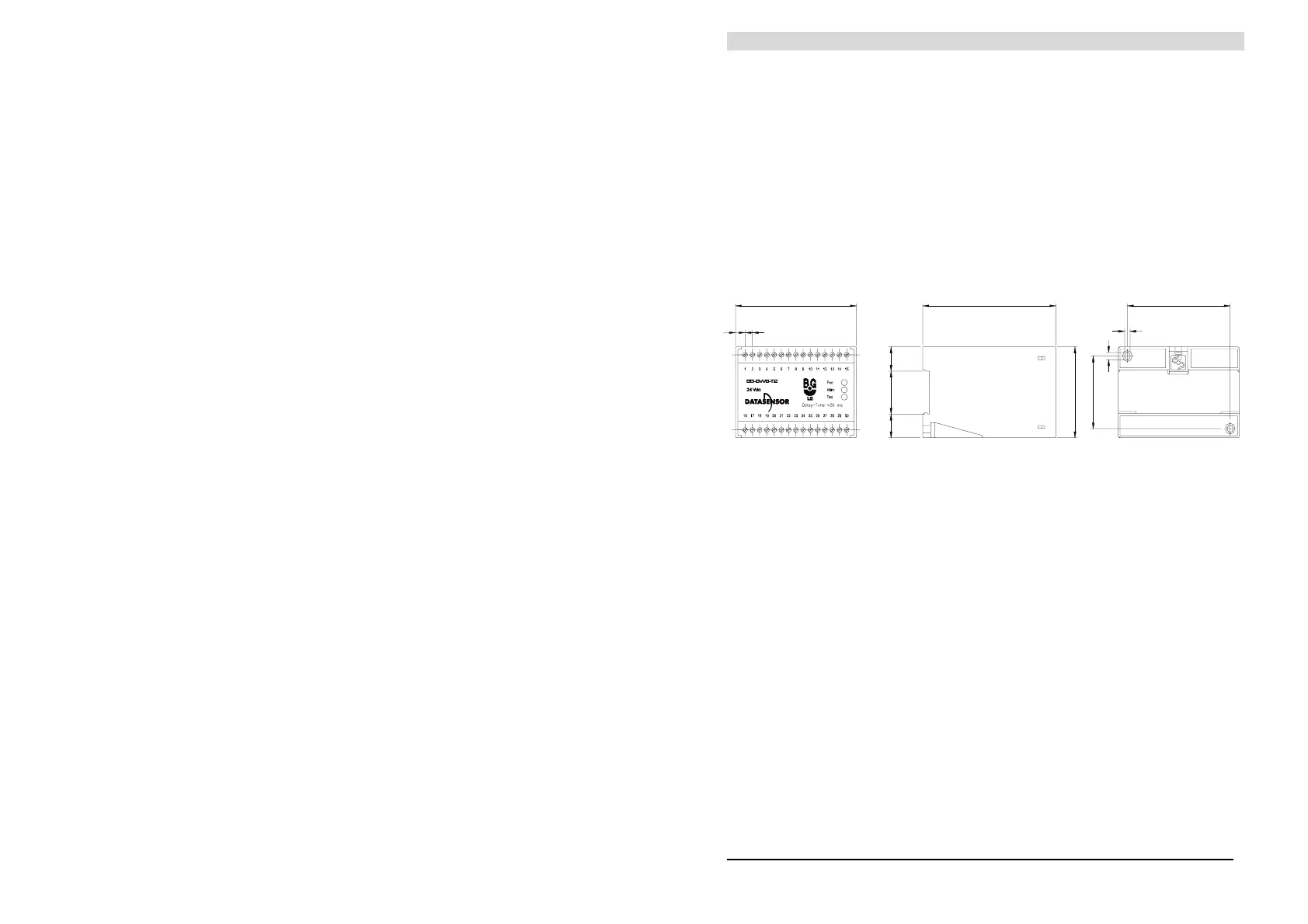

diagram for mounting purposes:
100
8 6
110
2035.519.5
75
85
6
60
4.5
mm
Figure 4
2.2 START SWITCH
The external start switch, which allows the enabling of the active
operating mode, must be installed in such a way that an unobstructed
view of the danger area is provided.
IT MUST NOT BE POSSIBLE TO ACTIVATE THE START SWITCH
FROM INSIDE THE DANGER AREA
!
By-passing the start switch in order to eliminate the START
INTERLOCK and the RESTART INTERLOCK functions is not allowed.
Therefore the start switch must be closed and then opened again to
begin the INITIAL TEST.
