Datavideo DAC-200 - Front Panel Controls and Connections

8

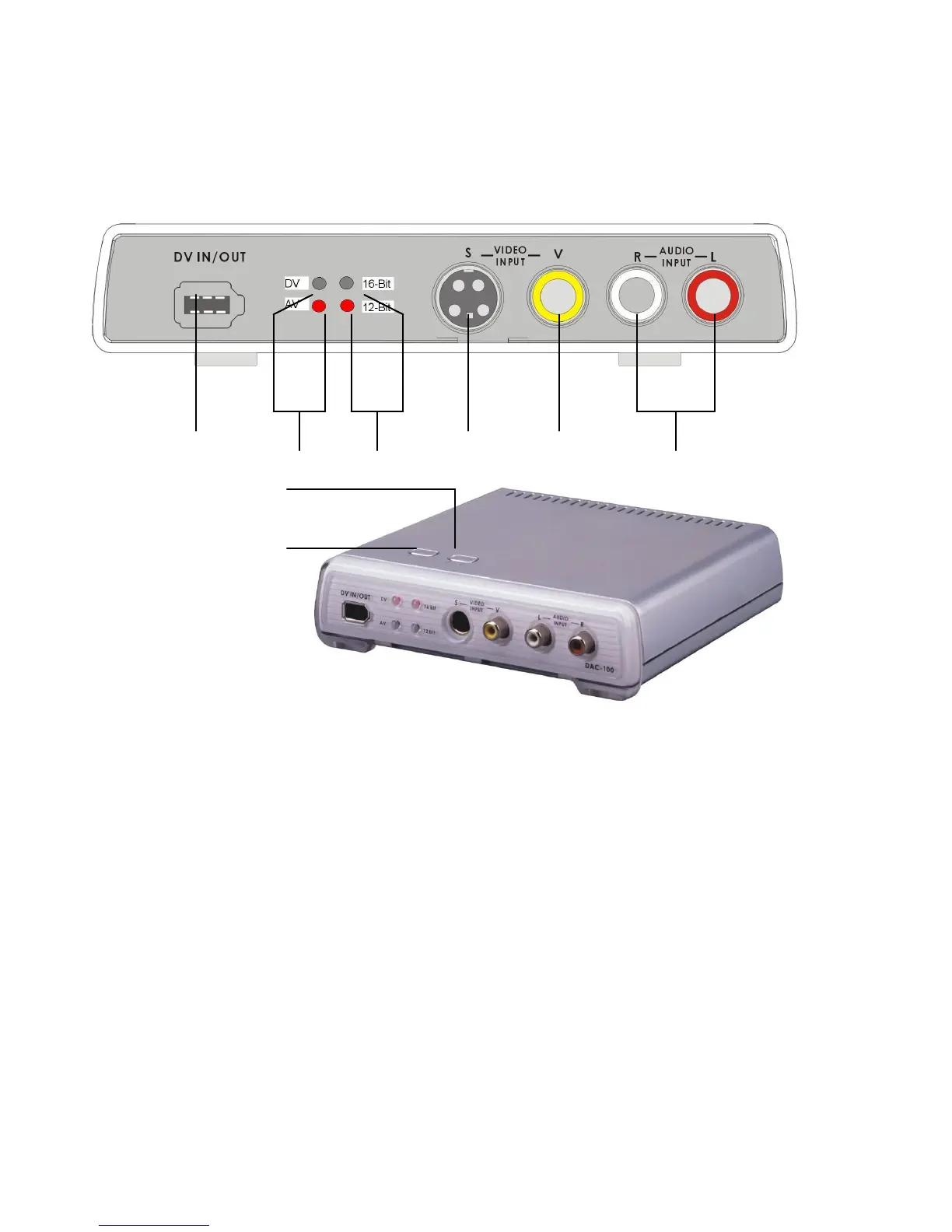

FRONTPANELCONTROL/CONNECTION
Description:
1. 6PinFireWireinterfaceforDVIn/Out
2. VideosourceindicatorsforDVorAVinput
3. LEDindicatorsforAudioencoder 12Bitor16Bit
4. SVideo(Y/C)inputconnector.
5. CompositeVideoinputRCAconnector
6. StereoAudioinputRCAconnectors
7. Pushbuttontoselect12Bitor16BitAudioencoding
8. PushbuttontoselectvideoinputsourceDVorAV
Note:Pleasewait5secondsfortheLEDreadystatustocomeonafteryoupush
thevideosourcebutton.Thesystemneedsafewsecondstorecognizea
newvideosourcesetting.
12345 6
7
8
