28
FPGA Firmware Update

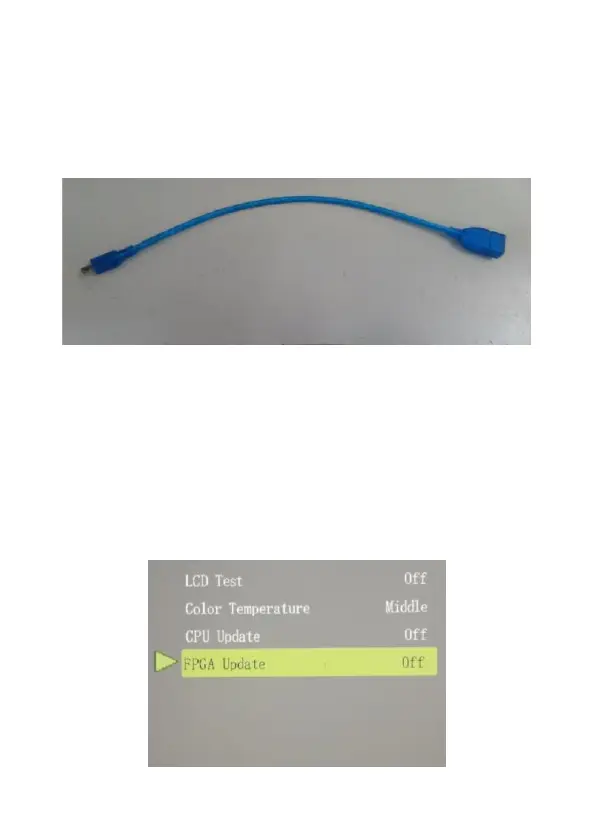

Step 1. Please prepare a USB female to mini USB transfer cable which is
shown as follows.
Step 2. Please copy the FPGA firmware upgrade file “fpga.mcs” into the
root of the USB thumb drive.
Step 3. Please long-press the EXIT button to enter the engineering
mode when the TLM-700UHD is booting.
Step 4. Please select the option “FPGA Update” and then set this option
to “On” and then the CPU firmware upgrade procedure will start
automatically. It will cost about 50 seconds to finish the firmware
update procedure.
