EN Dateq BCS70 Manual BCS71(GE) dual mono input module 7

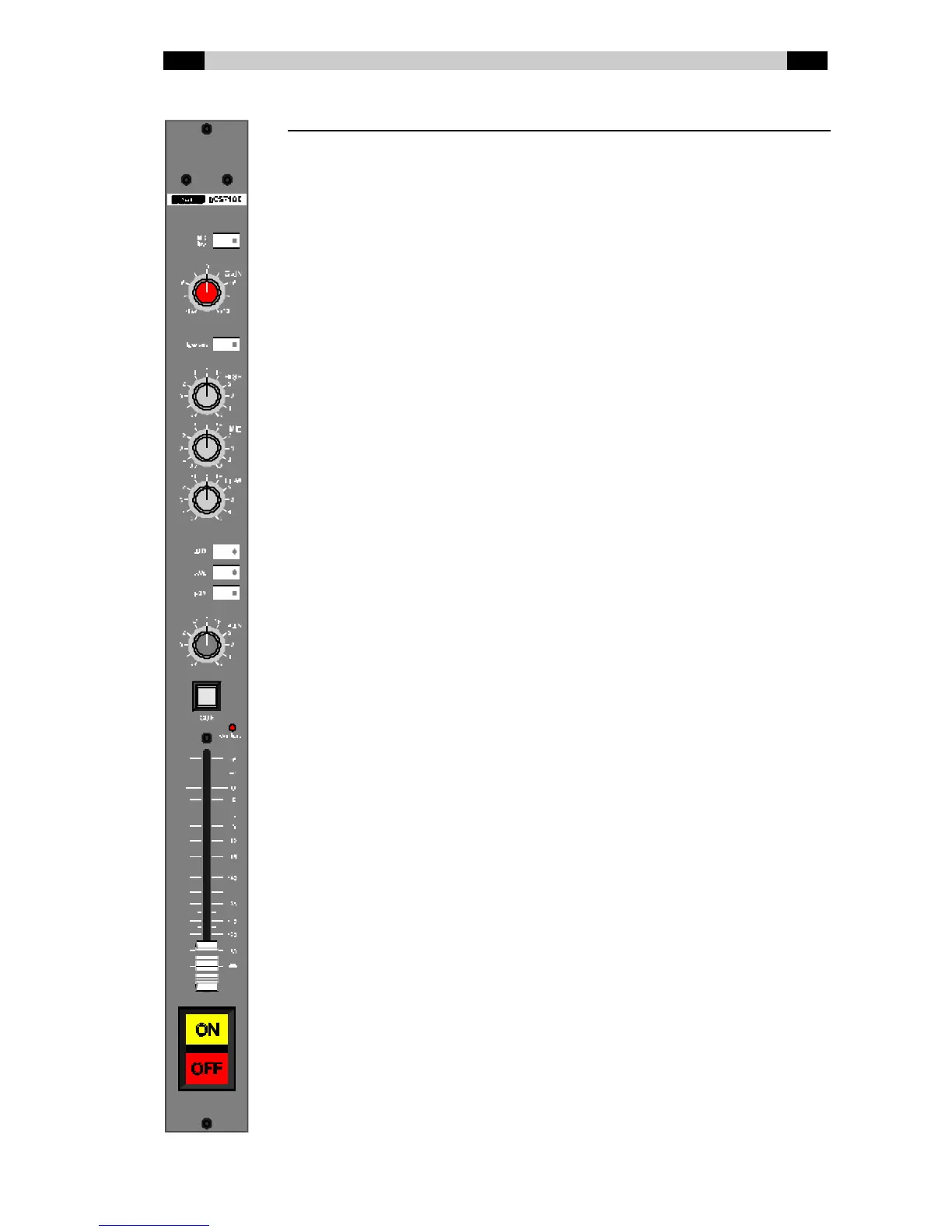

BCS71(GE) dual mono input module
BCS71 Mono module w ithout gain or tone control
BCS71E Mono module w ithout gain, w ith tone control
BCS71G Mono module w ith gain, w ithout tone control
BCS71GE Mono module w ith gain and tone control
Mic / Line Input selection. Sw itch pressed in is Line (LED lights
up).
Gain Volume presetting (only on the BCS71G and
BCS71GE). Limited adjustment range: ± 12dB.
Low Cut Low cut filter (20/80 Hz). Sw itch pressed in (LED
lights up) is active.
Hig h High tone control (only on the BCS71E and
BCS71GE). Shelving: ± 12dB @ 12kHz.
Mid Mid tone control (only on the BCS71E and BCS71GE).
Bell curve: ± 16dB @ 1.3 kHz.
Low Low tone control (only on the BCS71E and
BCS71GE). Shelving: ± 16dB @ 60 Hz.
AUX / AUD / PGM Bus routing sw itches. The sw itch pressed in (LED
lights up) indicates that the signal is being routed
from the module to the bus concerned. AUX can be
set to PRE or POST fader w ith jumpers.
PAN Panorama control. The signal is placed at the desired
position in the stereo image.
CUE Monitoring. This button lights up green if the CUE
function on this module is active. The button lights up
red if an (external) mute is active.
Ove rload This LED lights up if the signal level anyw here in the
module is too high and distortion can or does occur
(the limit is 6 dB under clip level).
Fade r 100mm long volume control. Depending on the jumper
settings on the module, the volume on the AUX bus is
dependent (POST) or independent (PRE) of the
position of this fader.
ON / OFF Sw itches w ith w hich the channel can be turned on
and off (if button start w as configured) and/or the
equipment connected can be started / stopped. The
lamps in the sw itches can light up dependent on the
channel status (internal tally) or can be controlled by
connected equipment (external tally).
