EN Dateq BCS70 Manual BCS70 connector board 19

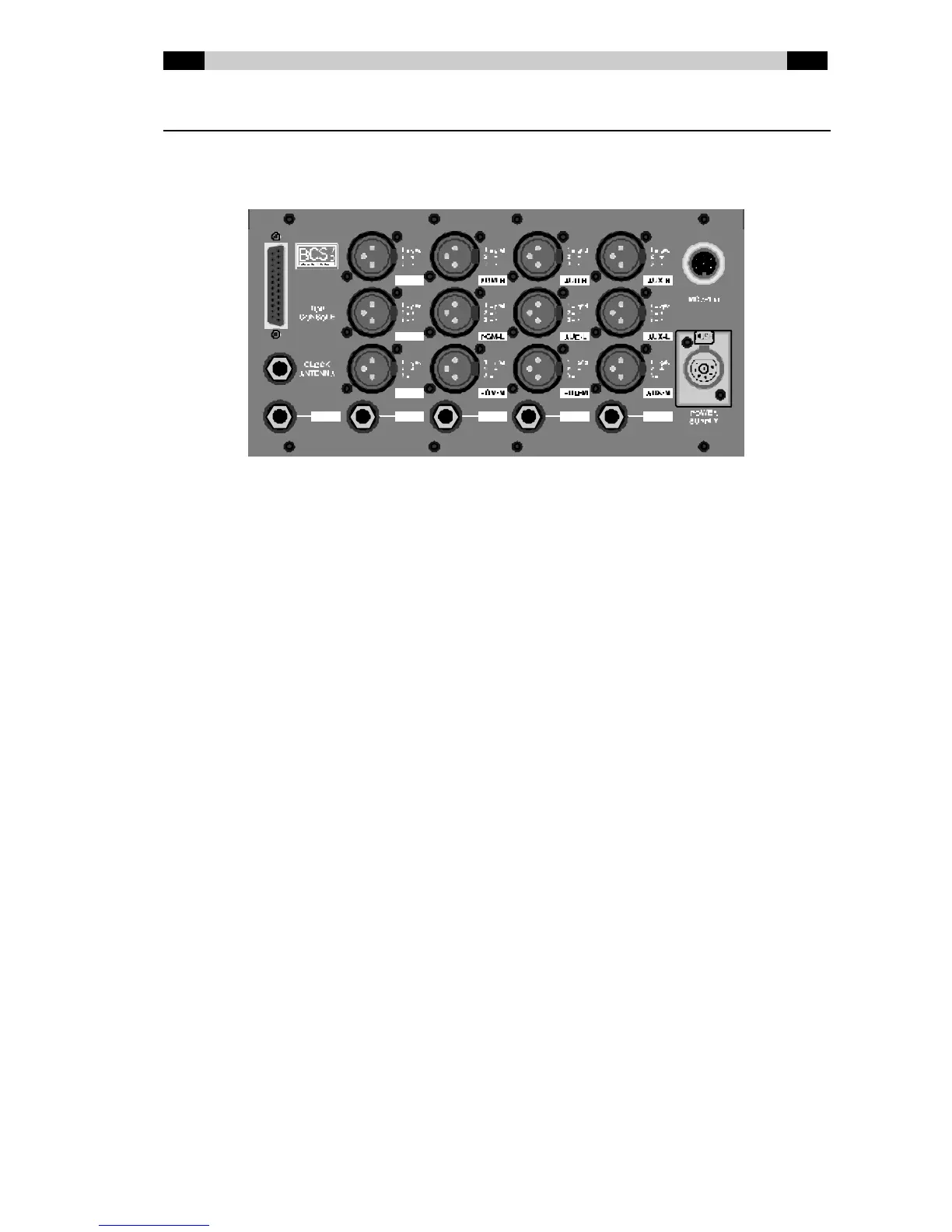

BCS70 Connector board
At the back of the script space there are, in addition to the audio outputs of the BCS70,
various other connectors. There is also space for expansions such as extra audio outputs or
special accessories.
PGM-L/R/M ProGraM outputs (Left, Right and Mono). The PGM output is the mixer
unit's main output. These balanced outputs are electrically isolated
using transformers and are therefore suitable for carrying signals to
cable modulators, transmitters and music lines, for example.
AUD- L/R/M AUDition outputs (Left, Right and Mono). All channels for w hich the
AUD sw itch is pushed in can be heard on the AUD output. The AUD
output can, for example, be used as decor output, as post-fader
effect send, as extra output for a second edition of a programme, or to
quickly record a telephone interview w hilst the broadcast carries on
normally over the PGM output. The AUD control on the master module
controls the total AUD level.
AUX-L/R/M A UXiliary outputs (Lef t, Right and Mono). These outputs can be used
to connect special-effects equipment, for example. Whether a channel
can be heard on the output is dependent on the setting of the AUX-
routing sw itches. In addition, the PRE / POST jumpers can be used to
select w hether a channel must be mixed independent of or dependent
on the fader status on the AUX output. The AUX control on the master
module controls the total AUX level. Return signals from effects
equipment can be sent to the PGM output via a normal input module.
CL OCK ANTENNA If a Dateq BCS81 clock / timer is used, the external DCF-77 aerial can
be connected here.
TOP CONSOLE 25-pin female Sub-D connector for the meter bridge.
MCA-100 Connector f or Dateq MCA-100 headphone amplif iers so that more
headphones f or announcers and guests can be connected - each
w ith their ow n volume control and cough / speak button.
POWER SUPPLY 7-pin XLR connector for the external pow er supply.
