Tec 5 Vaporizer Page 11
O & M Manual Part No. 1105-0100-000 August 1999
4.6.6 Filling A Vaporizer Which Incorporates A Quik-Fil™ Filler
w Warning: Ensure that the drain plug screw (1), located on the lower front of the vaporizer, is
correctly tightened to prevent loss of liquid agent.
1. Remove the protective cap from the anaesthetic agent bottle filler, checking that the bottle and filler
mechanism are not damaged.
2. Remove the filler cap (2) and insert the bottle nozzle into the filler block. Rotate the bottle to align
the bottle filler nozzle keys (3) with the index slots (4) in the filler block as illustrated on Fig. 10.
3. Press the agent bottle fully into the vaporizer filler block. Allow the liquid to flow into the vaporizer
until the maximum level mark ¥ is reached, paying particular attention to the level in the sight
glass and the air return bubbles flowing into the bottle.
4. Release the bottle when the vaporizer is full and the continuous stream of bubbles ceases.
5. Withdraw the bottle from the vaporizer filler and replace the filler cap (2) and the cap on the agent
bottle. Ensure that the filler cap is tightened to minimise any possibility of leaks.
2
3
1
4

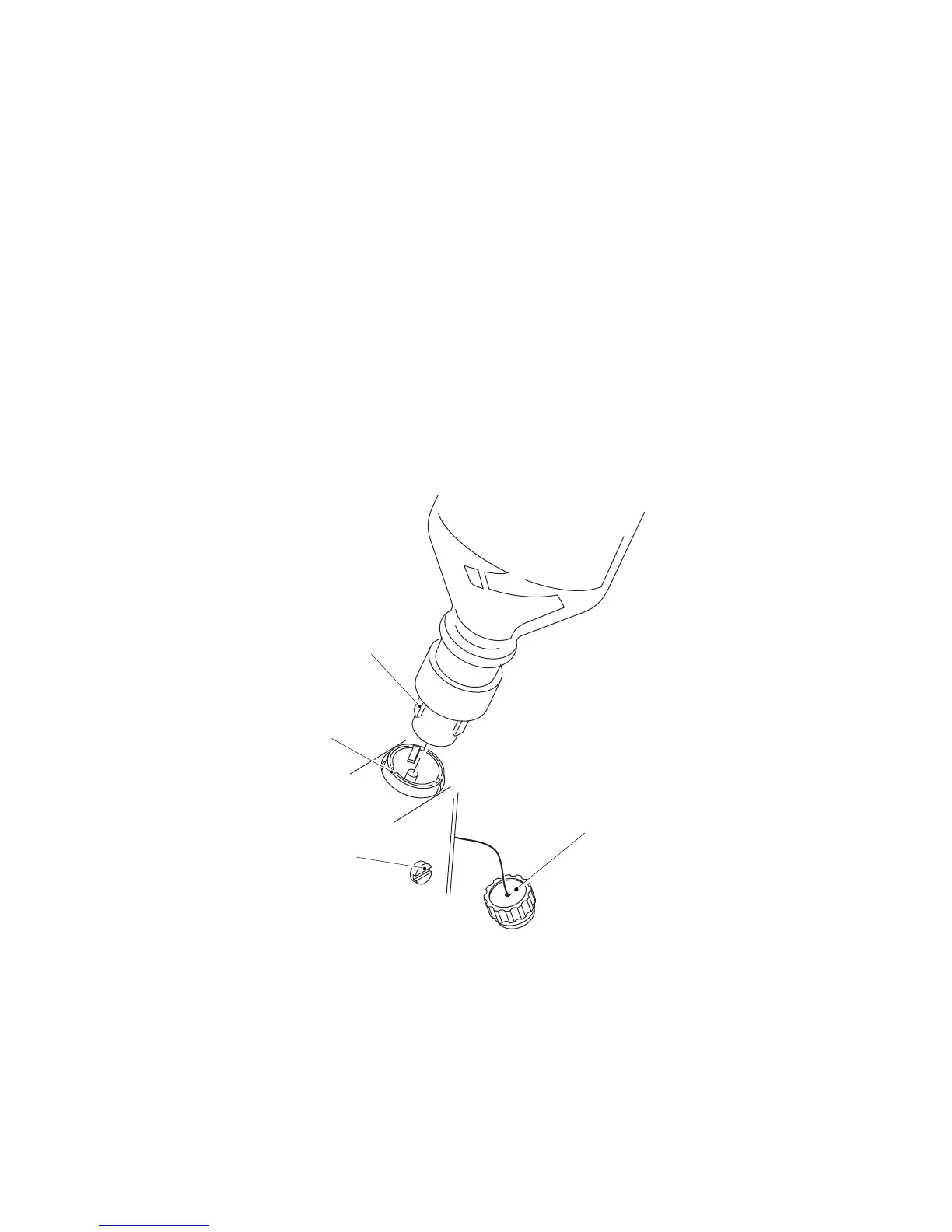

Fig. 10 Filling A Vaporizer Which Incorporates A Quik-Fil™ Filler
AA.13.056
