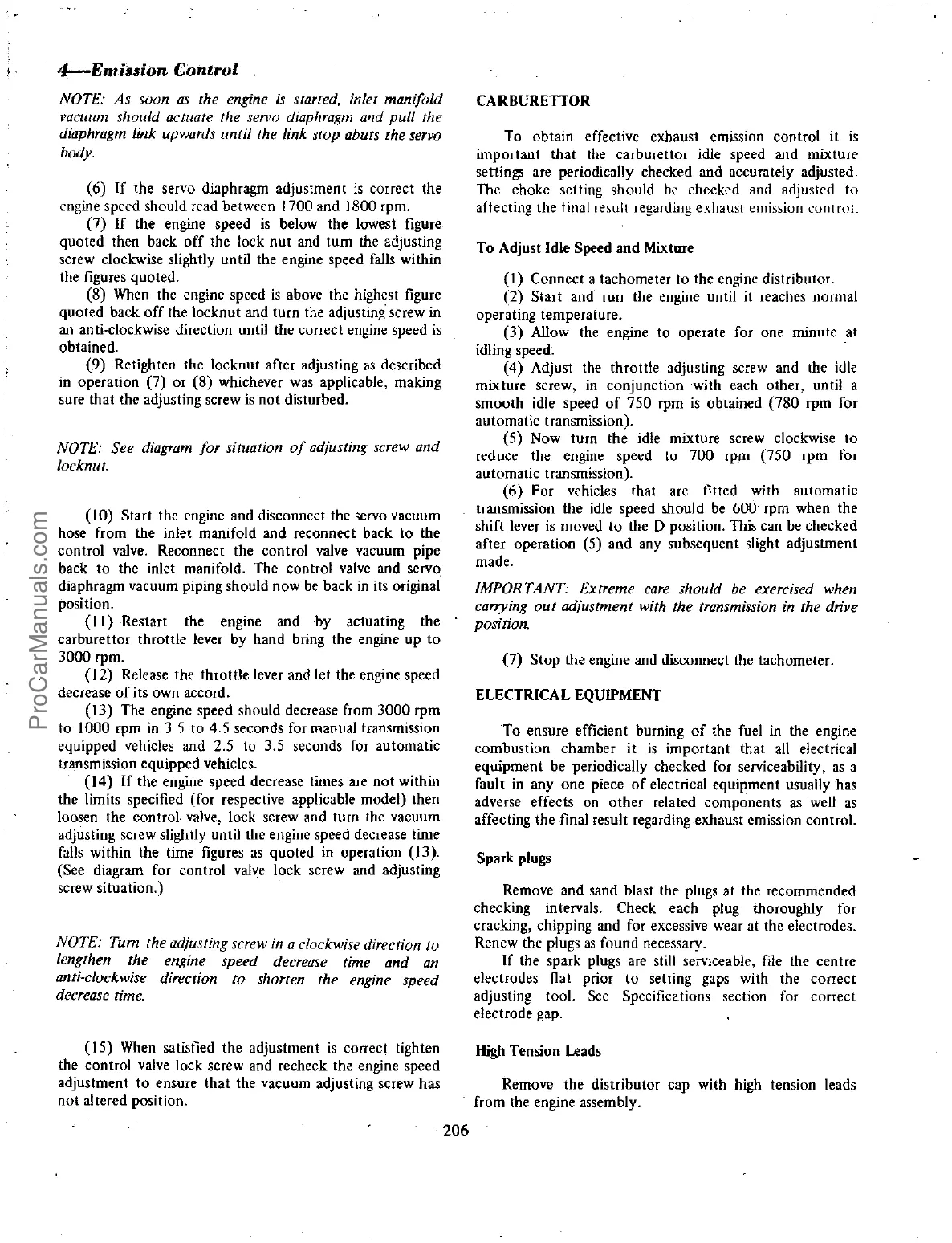

4
EmiJJ
ion
Control
NOTE
As
soon
as
the
engine
is
started
inlet
manifold
vacuum
should
actuate
the
seroo
diaphragm
and
pull
the
diaphragm
link
upwards
until
the
link
stop
abuts
the
servo
body
6
If
the
servo
diaphragm adjustment
is
correct
the
engine
speed
should
read
between
1700
and
1800
rpm
7
If
the
engine
speed
is
below
the
lowest
figure
quoted
then
back
off
the
lock
nut
and
turn
the
adjusting
screw
clockwise
slightly
until
the
engine
speed
falls
within
the
figures
quoted
8
When
the
engine speed
is
above
the
highest
figure
quoted
back
off
the
locknut
and
turn
the
adjusting
screw
in
an
anti
clockwise
direction
until
the
correct
engine speed
is
obtained
9
Retighten
the
locknut
after
adjusting
as
described
in
operation
7
or
8
whichever
was
applicable
making
sure
that
the
adjusting
screw
is
not
disturbed
NOTE
See
diagram
for
situation
of
adjusting
screw
and
locknut
10
Start
the
engine
and
disconnect
the
servo
vacuum
hose
from
the
inlet
manifold
and
reconnect
back
to
the
control
valve
Reconnect
the
control
valve
vacuum
pipe
back
to
the inlet
manifold
The
control
valve
and
servo
diaphragm
vacuum
piping
should
now
be
back
in
its
original
position
II
Restart
the
engine
and
by
actuating
the
carburettor
throttle
lever
by
hand
bring
the
engine
up
to
3000
rpm
12
Release
the
throttle
lever
and
let
the
engine speed
decrease
of
its
own
accord
3
The
engine
speed
should
decrease
from
3000
rpm
to
1000
rpm
in
3 5
to
45
seconds
for
manual
transmission
equipped
vehicles
and
2
5
to
3
5
seconds
for
automatic
transmission
equipped
vehicles
14
If
the
engine
speed
decrease
tUnes
are not
within
the
limits
specified
for
respective
applicable
model
then
loosen
the
control
valve
lock
screw
and
turn
the
vacuum
adjusting
screw
slightly
until
the
engine speed
decrease
time
falls
within
the
lime
figures
as
quoted
in
operation
13
See
diagram
for
control
valve
lock
screw
and
adjusting
screw
situation
NOTE
Turn
the
adjusting
screw
in
a
clockwise
direction
to
lengthen
the
engine
speed
decrease
time
and
an
anti
clockwise
direction
to
shorten
the
engine speed
decrease
time
IS When
satisfied
the
adjustment
is
correct
tighten
the
control
valve
lock
screw
and
recheck
the
engine speed
adjustment
to
ensure
that
the
vacuum
adjusting
screw
has
not
altered
position
CARBURETfOR
To
obtain
effective
exhaust
emission
control
it
is
important
that
the
carburettor
idle
speed
and
mixture
setting
are
periodically
checked
and
accurately
adjusted
The
choke
setting
should
be
checked
and
adjusted
to
affecting
the
tinal
result
regarding
exhaust
emission
control
To
Adjust
Idle
Speed
and
Mixture
I
Connect
a
tachometer
to
the
engine
distributor
2
Start
and
run
the
engine
until
it
reaches
normal
operating temperature
3
Allow
the
engine
to
operate
for
one
minute
at
idling
speed
4
Adjust
the
throttle
adjusting
screw
and
the
idle
mixture
screw
in
conjunction
with
each
other
until
a
smooth
idle
speed
of
750
rpm
is
obtained
780
rpm
for
automatic
transmission
5
Now
turn
the
idle
mixture
screw
clockwise
to
reduce
the
engine
speed
to
700
rpm
750
rpm
for
automatic
transmission
6
For
vehicles
that
are
fitted
with
automatic
transmission
the
idle
speed
should
be
600
rpm
when
the
shift
lever
is
moved
to
the
D
position
This
can
be
checked
after
operation
5
and
any
subsequent
slight
adjustment
made
IMPOR
T
ANT
Ex
treme
care
should
be
exercised
when
carrying
out
adjustment
with
the
transmission
in
the
drive
pas
tion
7
Stop
the
engine
and
disconnect
the
tachometer
ELECTRICAL
EQUIPMENT
To
ensure
efficient
burning
of
the
fuel
in
the
engine
combustion
chamber
it
is
important
that
all
electrical
equipment
be
periodically
checked
for
serviceability
as
a
fault
in
anyone
piece
of
electrical
equipment
usually
has
adverse
effects
on
other
related
components
as
well
as
affecting
the
final
result
regarding
exhaust
emission
control
Spark plugs
Remove
and sand
blast
the
plugs
at
the
recommended
checking
intervals
Check
each
plug
thoroughly
for
cracking
chipping
and
for
excessive
wear
at
the
electrodes
Renew
the
plugs
as
found
necessary
If
the
spark plugs
are
still
serviceable
file
the
centre
electrodes
flat
prior
to
setting
gaps
with
the
correct
adjusting
tool
See
Specifications
section
for
correct
electrode
gap
High
Tension
Leads
Remove
the
distributor
cap
with
high
tension
leads
from
the
engine
assembly
206
