I5 Brakes
Rear

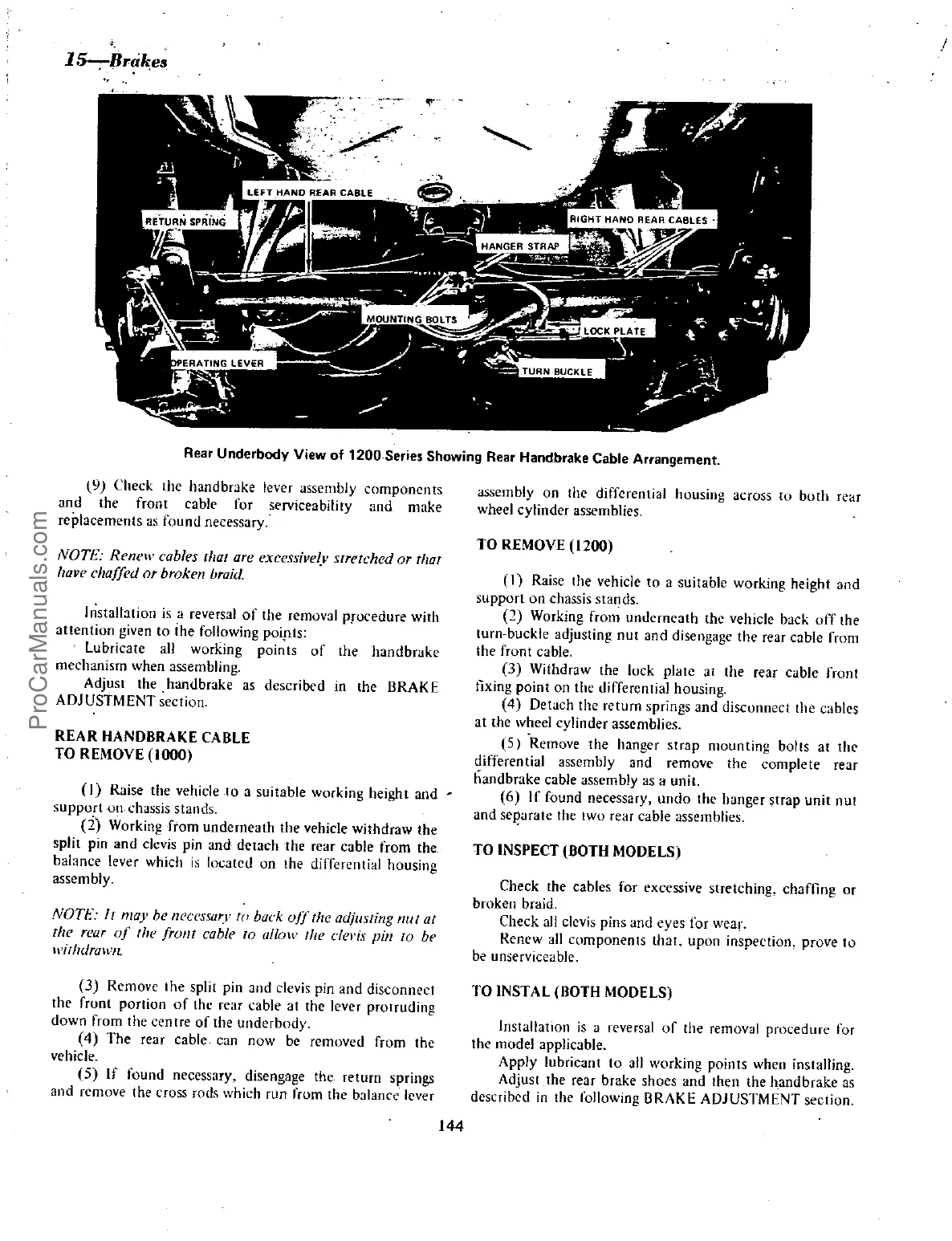

Underbody
View of 1200 Series
Showing
Rear Handbrake Cable
Arrangement
9 Check the
handbrake
lever
assembly components
and the
front cable for
serviceability
and make
replacements
as
found
necessary
NOTE Rench cables thai
are
excessiveJv stretched or
that
have
chaffed
or broken
braid
Install J
tion is a reversal
of
the
removal
procedure
with
attention
given
to the
following poir
IS
Lubricate
all
working
points
of the handbrake
mechanism when
assembling
Adjust
the handbrake
as
described
in the
BRAKE
ADJUSTMENT
section
REAR HANDBRAKE CABLE
TO REMOVE
1000
I
Raise the vehicle to a suitable
working height
and
support
on chassis stands
2
Working
from underneath the vehicle withdraw
the
split pin
and
clevis
pin
and detach the rear
cable
from
the
balance lever which
is
located on the
differential
housing
assem
bly
NOTE
It
mal
be
necessar
In
back
off
thc
adjusting
nut at
the rear
of
the
fron
cable
10 aI
ow the
cleris
pill
fO be
wil ulralVll
3 Remove the
split pin
and
clevis
pin
and disconnect
the front
portion
of
the
rear cable at
the lever
protruding
down
from
the centre of the
underbody
4 The
rear
cable
can now
be removed
from the
vehicle
5 If found
necessary disengage
the
return
springs
and remove
the cross rods which run from
the
balance
lever
assembly
on
the
differential
housing
across
0 both rear
wheel
cylinder
assemblies
TO REMOVE 1200
II
Raise the vehicle to
a
suitable
working
height
and
support
on chassis
staf
ds
1
Working
from underneath the vehicle back
off
the
turn buckle
adjusting
nut
and
disengage
the
rear cnbJe
from
the front
cable
3 Withdraw
the lock
plate
at the
rear
cable front
fi
xing point
on the differcnt
al
housing
4
Detach the
retorn
springs
and disconnect
the
cables
at the
wheel
cylinder
assemblies
5 Remove the
hanger strnp
mounting
holts
at
the
differential
assembly
and
remove
the
complete
rear
handbrake
cable
assembly
as
a
unit
6 If found
necessary
undo
the
hanger strap
unit
nut
and
separate
the
two
rear cable assemblies
TO
INSPECT
BOTH MODELS
Check
the
cables
for excessive
stretching chaffing
or
broken
braid
Check
all clevis
pins
and
eyes
for
wear
Renew all
components
that
upon
inspection
prove
to
be unservil
eable
TO INSTAL
BOTH MODELS
lnstallation
is a reversal
of
the
removal
procedure
for
the model
applicable
Apply
lubricant to
all
working
points
when
installing
Adjust
the rear brake shoes
and
then
the hand brake as
described in
the
following
BRAKE
ADJUSTMENT
section
144
