3.6 Stadia Measurements

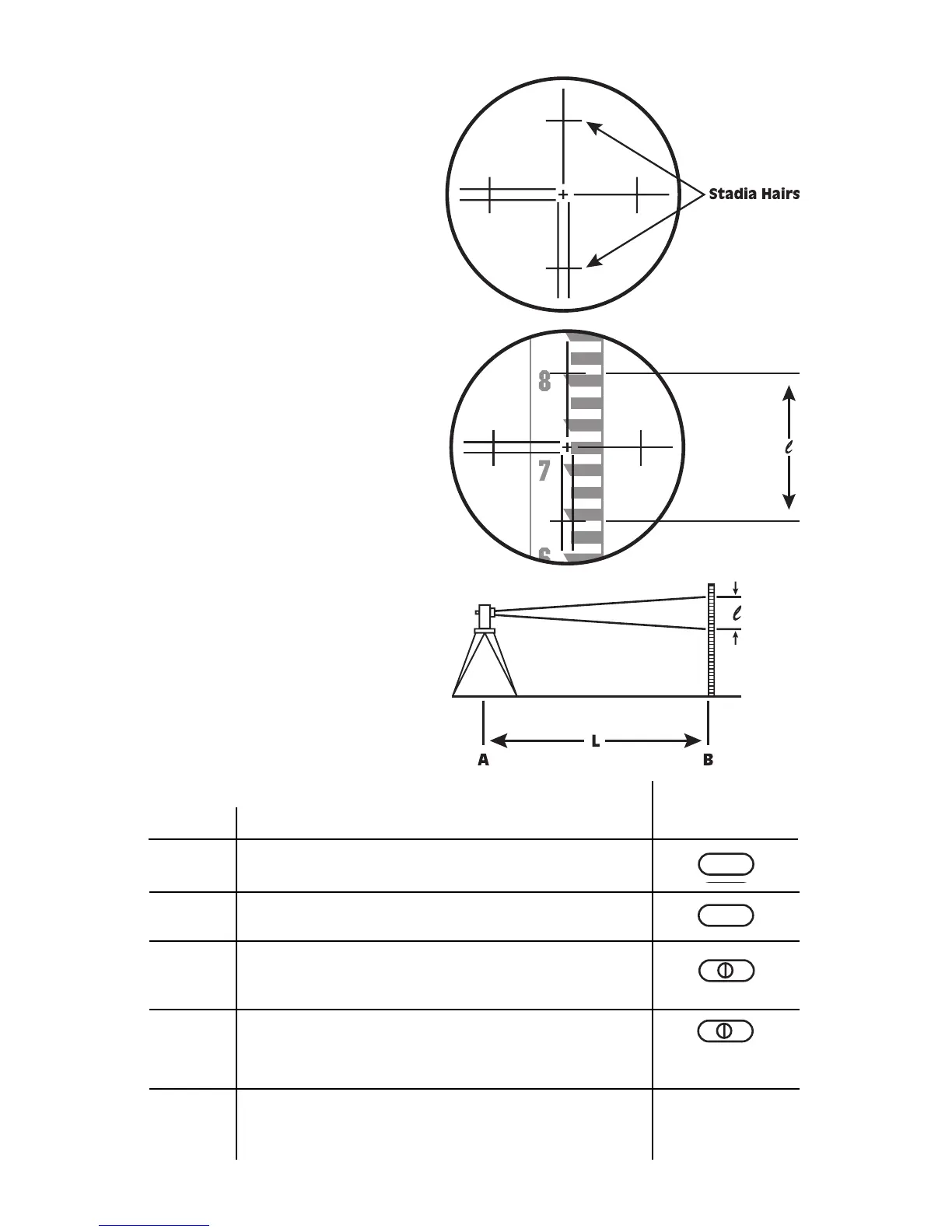

1. Distance measurement
can be done using the
stadia hairs of the reticle.
2. Read the length " l " of a
level rod shown between
the stadia hairs.
3. The distance to the target is 100
multiplied by " l ". The distance between
point A and point B is L.
L=100 x " l "
3.7 Displayed Error Codes
PRESS TO
CLEAR
DISPLAY CAUSE ERROR
E01 Instrument spun horizonitally at too
great a speed for the horizontal detector.
E02 Telescope spun vertically at too great a
speed for the vertical detector.
E03 Error in the vertical angle measurement
system. Re-start the instrument.
If error is still shown, return instrument for repair.
E04 Error in the horizontal angle measurement
system. Re-start the instrument
If error is still shown, return instrument for repair.
E06 Error in the setting of the vertical zero point. N/A
Return instrument for repair.
OSET
V%
2X
2X
