13

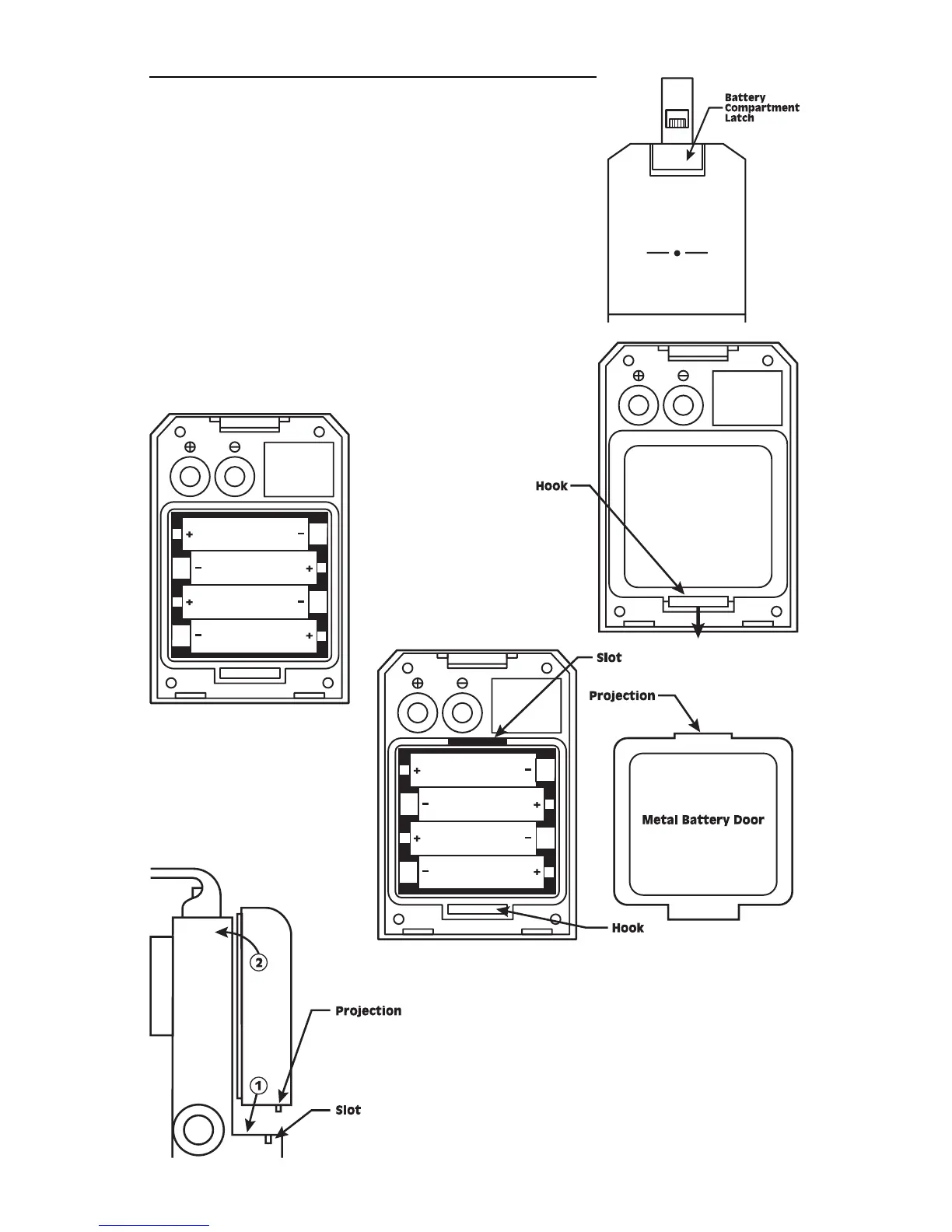

4.2 Replacing Batteries
1. Push down on the hook to remove
the metal battery door.
2. Install batteries as shown.
3. Slip the projection
shown on the metal
battery door into the slot
shown and push down on
the door until the hook
locks the door in place.
4.3 Mounting Battery Compartment
1. Slip the projection on the bottom of the battery
compartment into the slot .
2. Push the top of the battery compartment
toward the housing until the battery compartment
latch clicks into place.
4. HANDLING OF POWER SUPPLY
4.1 Removing The Battery Compartment
Push down on the battery compartment latch
and pull the top of the battery compartment
away from the instrument.
