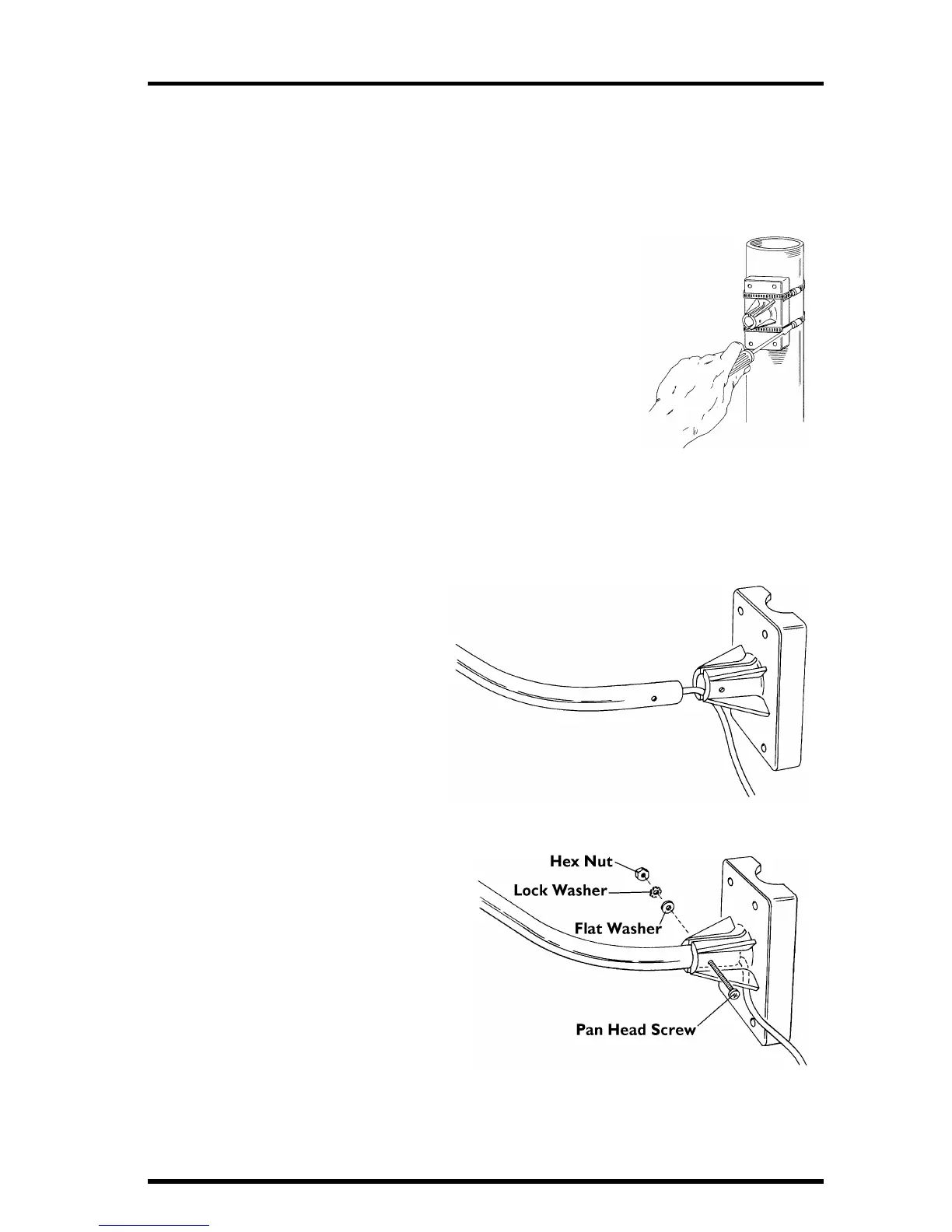

Installing the Anemometer
Page 7
Installing the Base on a Metal Mast or Pipe: Outside Diameter
Greater than 11/4 inch (32 mm)
Use stainless steel hose clamps to attach the mounting base to masts or pipes
larger than 1 1/4” diameter.
1.
Use two stainless steel hose clamps large enough
to fit around the mast or pipe and the anemometer
base.
You may purchase hose clamps at your local hard-
ware store.
2.
Hold the anemometer base against the pipe and
fasten the hose clamps over the anemometer base
and around the metal mast or pipe.
Attaching the Anemometer Arm to the Base
1.
Insert the anemometer
arm into the anemometer
base.
Guide the anemometer
cable through the slot as
you insert the arm.
2.
Insert the pan head screw
into one of the holes in the
base and slide it through
the arm.
3.
Secure the pan head
screw using the flat washer,
lock washer, and hex nut as
shown.
Attaching base to a pipe
using hose clamps
Inserting arm into base
Attaching the anemometer arm to the base
