Mounting on a Flat Surface

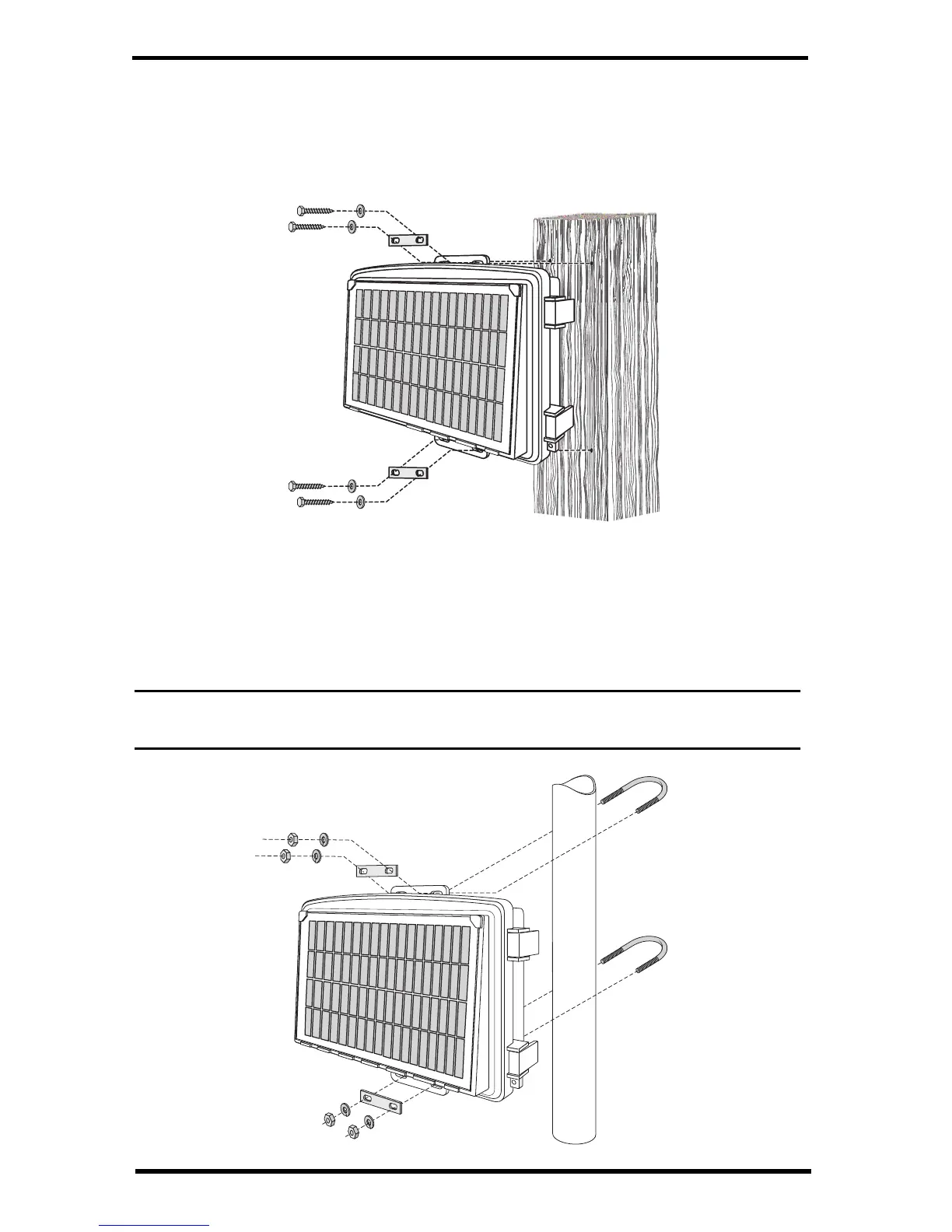

Attach the shelter to the mounting surface in the desired location using the lag
screws and backing plates as shown below. Use a pencil or a center-punch to mark
the location of the pilot hole.
Mounting On a Pipe
Mount the Vantage Connect onto a pipe with an outside diameter of 0.84'' to 1.84''
(21 mm to 27 mm) using the U-bolts, backing plates, washers, and hex nuts
provided.
Note: For mounting on larger diameter pipes, the housing can accommodate U-bolts with
5/6'' (8 mm) threads for pipes up to 2.40'' (61 mm) outside diameter (not provided).
