Installing the Repeater on a Pole

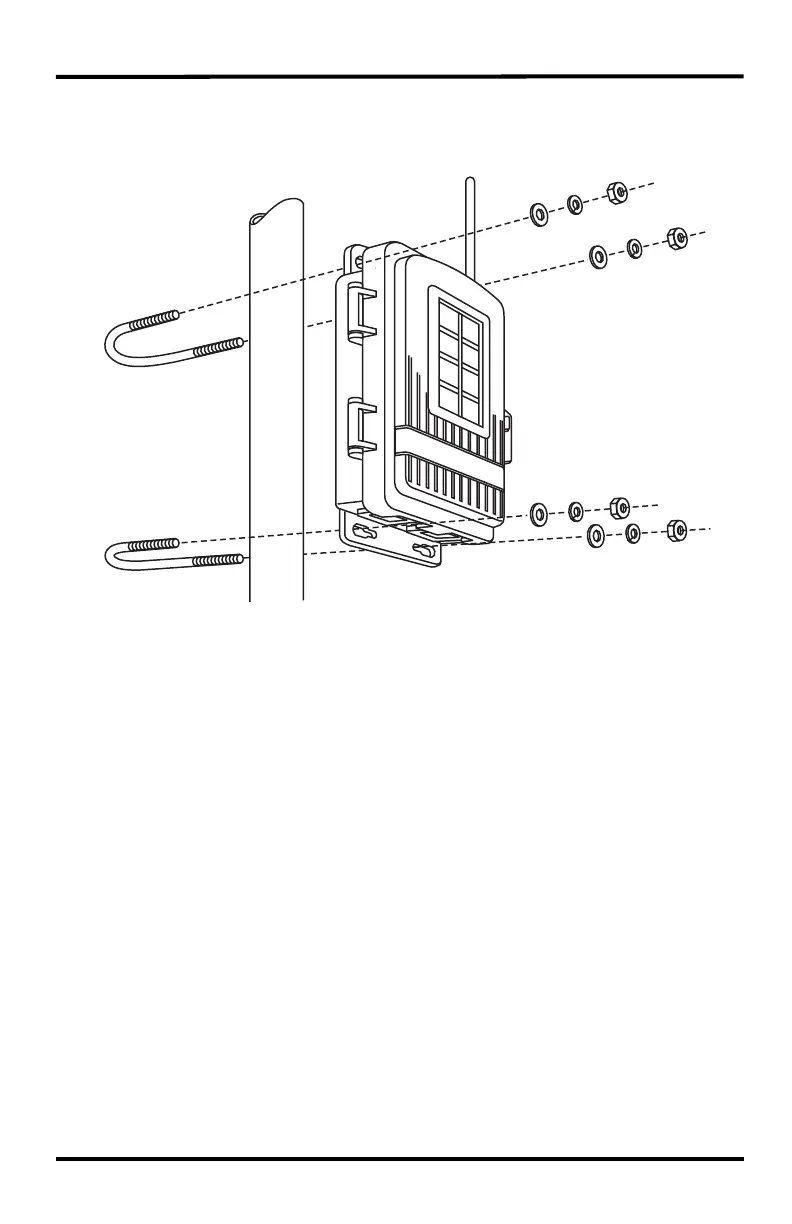

Refer to the following illustration to install the repeater on a pole:
1. While holding the shelter against the pole, place a U-bolt around the pole and through
the two holes on at the top of the shelter.
2. Place a flat washer, a lock washer and a hex nut on each of the bolt ends.
3. Using an adjustable wrench or 7/16" wrench, tighten the nuts.
4. Place the second U-bolt around the pole and through the two holes at the bottom of the
shelter.
5. Put a flat washer, a lock washer, and a hex nut on each bolt end, and tighten the hex
nuts.
Flat
Washer
Lock
Washer
Hex
Nut
U-Bolt
