DAVIS Envoy8X - First in Chain Topology Illustration

43

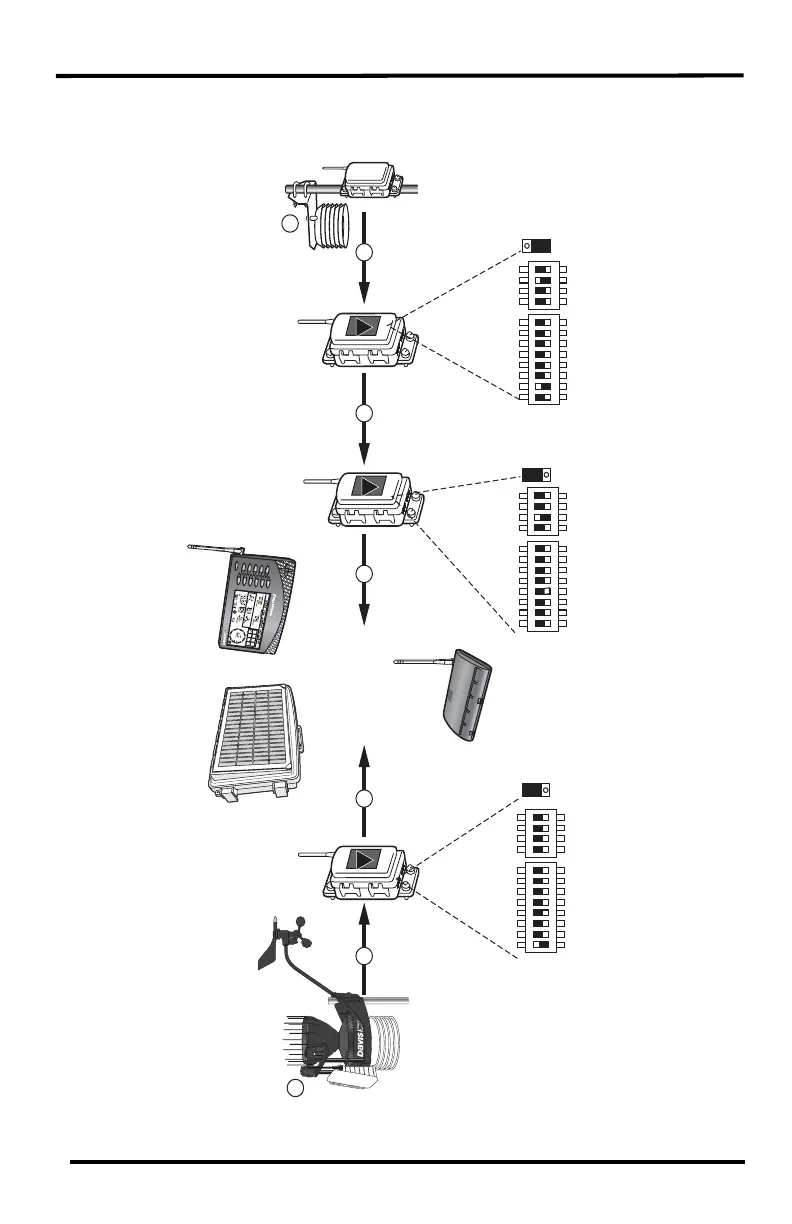

First In Chain Topology with Switch and Jumper Positions
1
B
C
A
1 1 2 2 2
2
Any Vantage Pro2
Station
Repeater
Repeater
First
In Chain
Repeater
Transmitter DIP Switch 1 ON
Repeater
DIP Switch
all OFF
Default
Jumper
Position
Transmitter DIP Switch all OFF
Repeater
DIP Switch
2 ON
Default
Jumper
Position
Transmitter DIP Switch 2 on
Repeater
DIP Switch
3 ON
Jumper
Position (First in
Chain)
Vantage Pro2
Console, Vantage Connect
OR
Weather Envoy
Temperature
/
Humidity
Station
™
