Installation Diagram #14 • Rev. A • 04/18/08
USB-mini B
USB-A
USB Port
WeatherLink Data Logger
PRODUCT #6510USB
AC Power Adapter
PRODUCT #6625
Data Logger Cable
Weather Envoy
PRODUCT #6316
Computer
INSTALLATION DIAGRAM

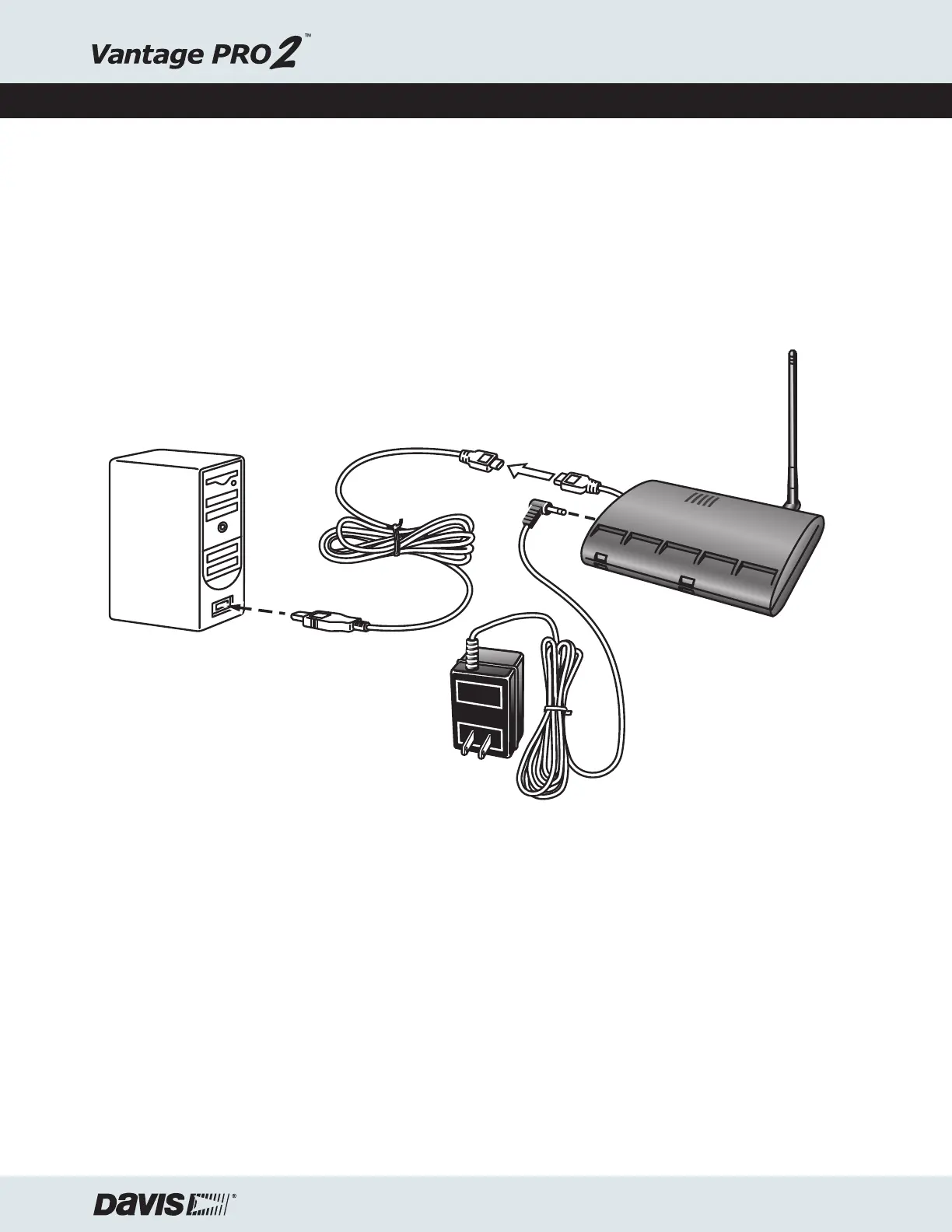

Connecting a Wireless Weather Envoy™ to a Computer via WeatherLink®
This diagram shows a Wireless Weather Envoy and a WeatherLink Data Logger connected to a computer via a
USB Data Logger cable.
