24Page
Motor Gasket
1 121300
5 101329
Reservoir Gasket
1 121305
6 101400
Upper Plate
1 151300
7 101375
1/16-27 NPTF Pipe Plug
5
8 9528K15
Ø1/4" Precision Ball
2 350301
9 101340
1/4-20 X 2 1/4 Serrated Hex FLHCS
4 345307
10 101477
Lower Plate & Gear Pump Ass'y.
1 200467
11 101406
Wear Washer
2 364300
12 101425
Eccentric - 5/8" Shaft
1 190300
13 101473
Bearing Sleeve Assembly
1 349200
14 101382
1/8 X 3/8 Dowel Pin
4 342301
15 101478
Piston Block Assembly
2 200215
16 101352
010 O-Ring
4 354313
17 101476
Unloading Block Assembly
1 200346
18 101355
014 Disogrin O-Ring
3 354302
19 101443
Dump Block Assembly
1 200203
20 92323A525
1/4-20 X 2" Serrated Hex FLHCS
8 345306
21 101385
1/4-20 X 2 1/2 Serrated Hex FLHCS
4
345308
22 101328
CR-6247 Shaft Seal
1 355303
Item Part Number Description
Qty Ref. Part No.
1 HP/2 HP Pump Sub-Assembly (101395)
4
14
1
22
5
6
11
15
16
12
13
11
10
21
20
20
19
2
9
8
17
18
7
7
3
1 101335
Reservoir Cover
1 132301
2 101337
Port Block Gasket
1 121304
3 101584 Port Block Assembly 1
4
101330

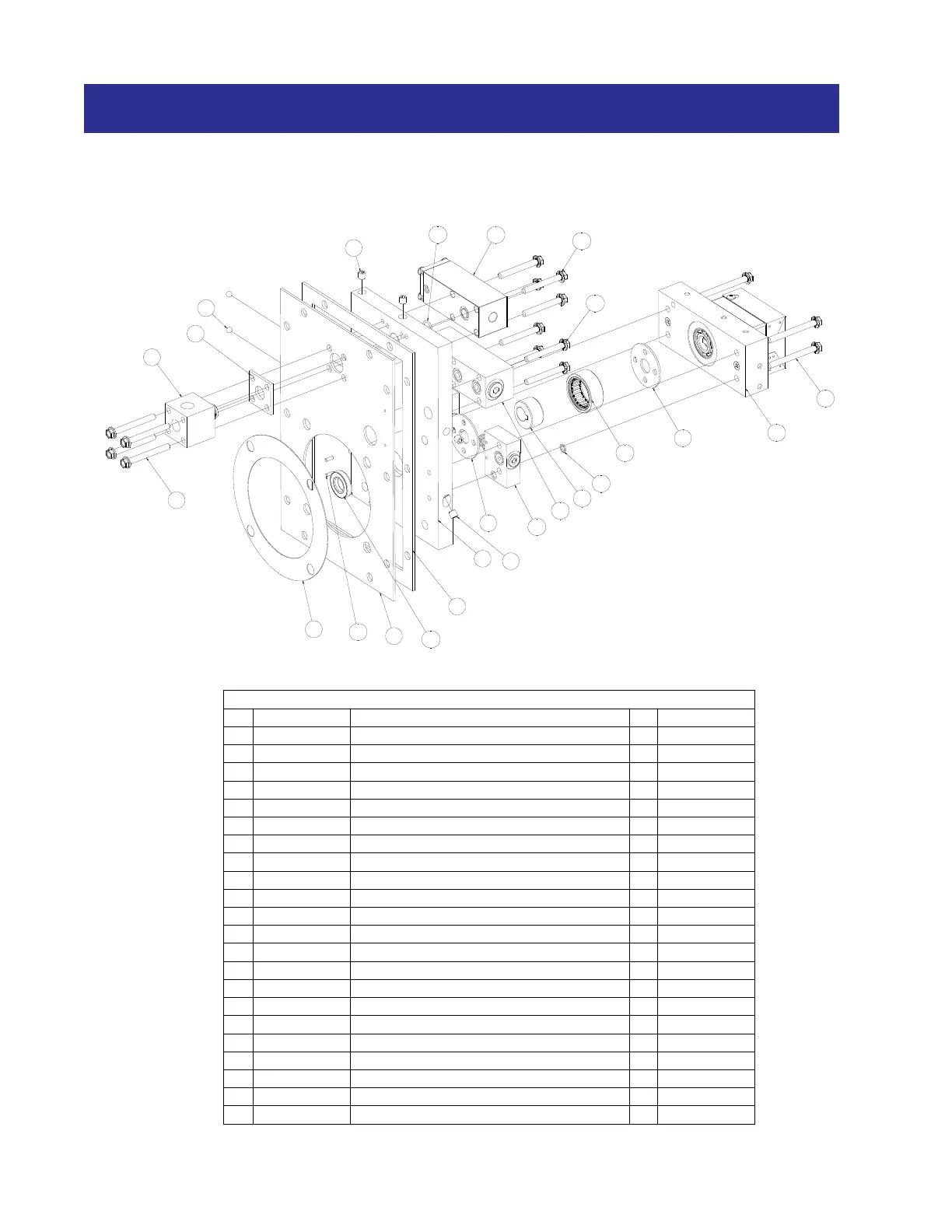

COMPONENT PARTS BREAKDOWN
