DAYCO D105DC - Page 23

23Page
1
101435 1 Gallon Reservoir
1
1
101336
2 Gallon Reservoir
1
2
101358
015 Buna 70 O-Ring Seal
4
3 101432
Reservoir Standoff 4
4
95462A525
1/2-20 Hex Nut
4
5
101395
1HP/2HP Pump Sub-Assembly
1
6 101470
Square Shaft Key
1
7
116259 1HP Electric Motor
1
7
116260 2HP Electric Motor
1
8 101338
3/8-16 x 7/8 SHCS
4
9 101339
1/4-20 x 1/2 SHFCS
10
10 101377
3/8-18 NPTF Pipe Plug
1
11
101378
3/8-18 NPT Shipping Plug
1
12
101341
3/8-18 NPT Vented Filler Cap (Shipped Loose)
1
13 101438-110 110V Electrical Enclosure
1
13 101438-220 220V Electrical Enclosure
1
14
91251A540 1/4-20 x 3/4 SHCS
2
15 90126A029
1/4 Flat Washer 4
16 90675A029 1/4-20 KEPS Nut
2
Pump Assembly (101633)
Item Part Number
Description
Qty
7
16
13
6
11
9
10
5
12
8
4
2
3
1
14
15

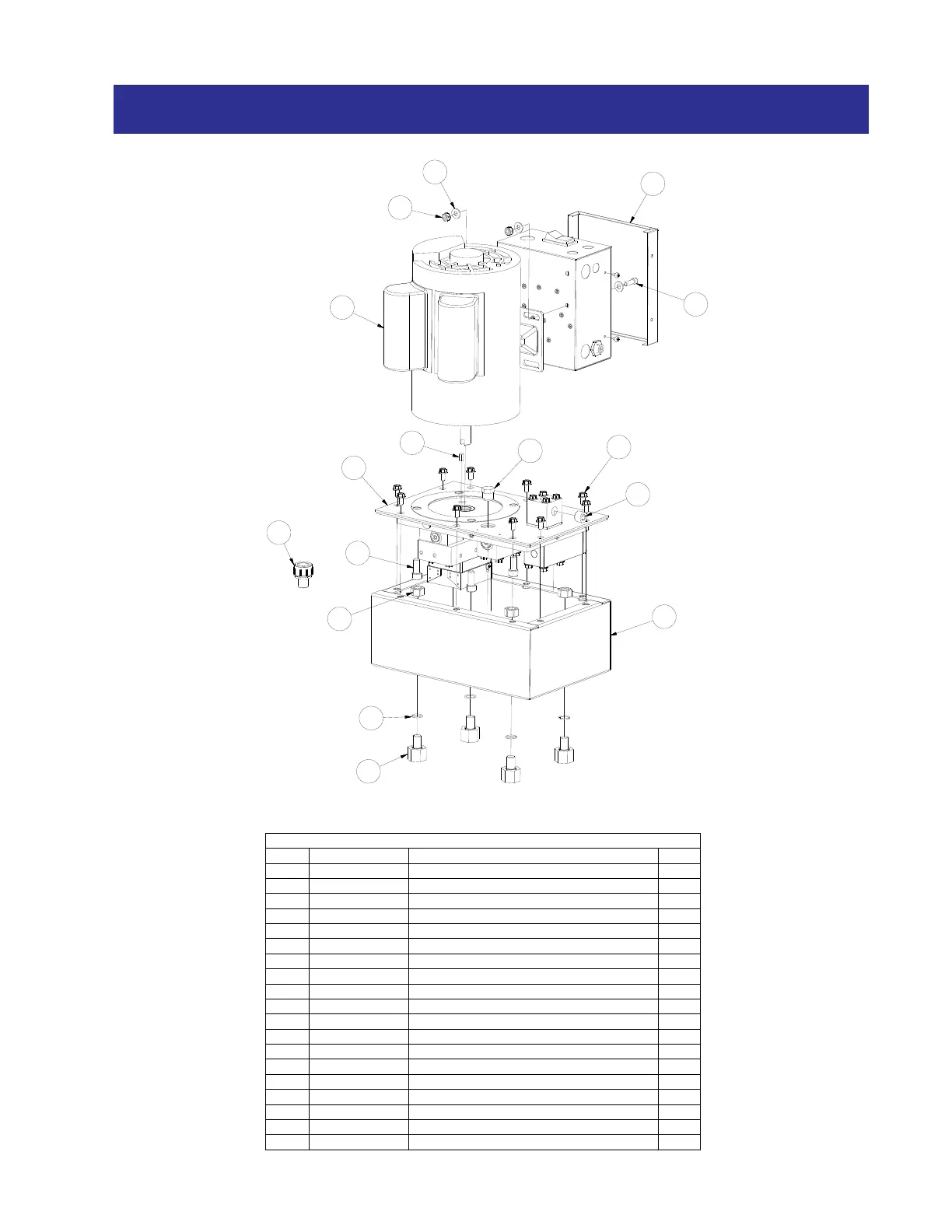

COMPONENT PARTS BREAKDOWN
