1 100689
Ram End Cap
1
2 030D90
030 Disogrin O-Ring
1
3 101282 Retraction Spring 1
4 101516
Spring Retainer
1
5 101515 Ram 1
6 102-33400-173-0450
Ram Guide Ring/Seal
1
7
72096
1/4-20 X 3/4 SHCS Gd 8
8
8 101517
Cylinder Body
1
9 93744A030
5/16 Washer - Copper
1
10 92865A585
5/16-18 X 1 1/4 HHCS Gd.5
1
11 101514
Ram Guide
1
12
SH959-26
Wiper 1
Item Part Number Description
Qty
35 Ton Cylinder Assembly (100685)
8
9
4
3
6
5
2
7
11
12
10
1

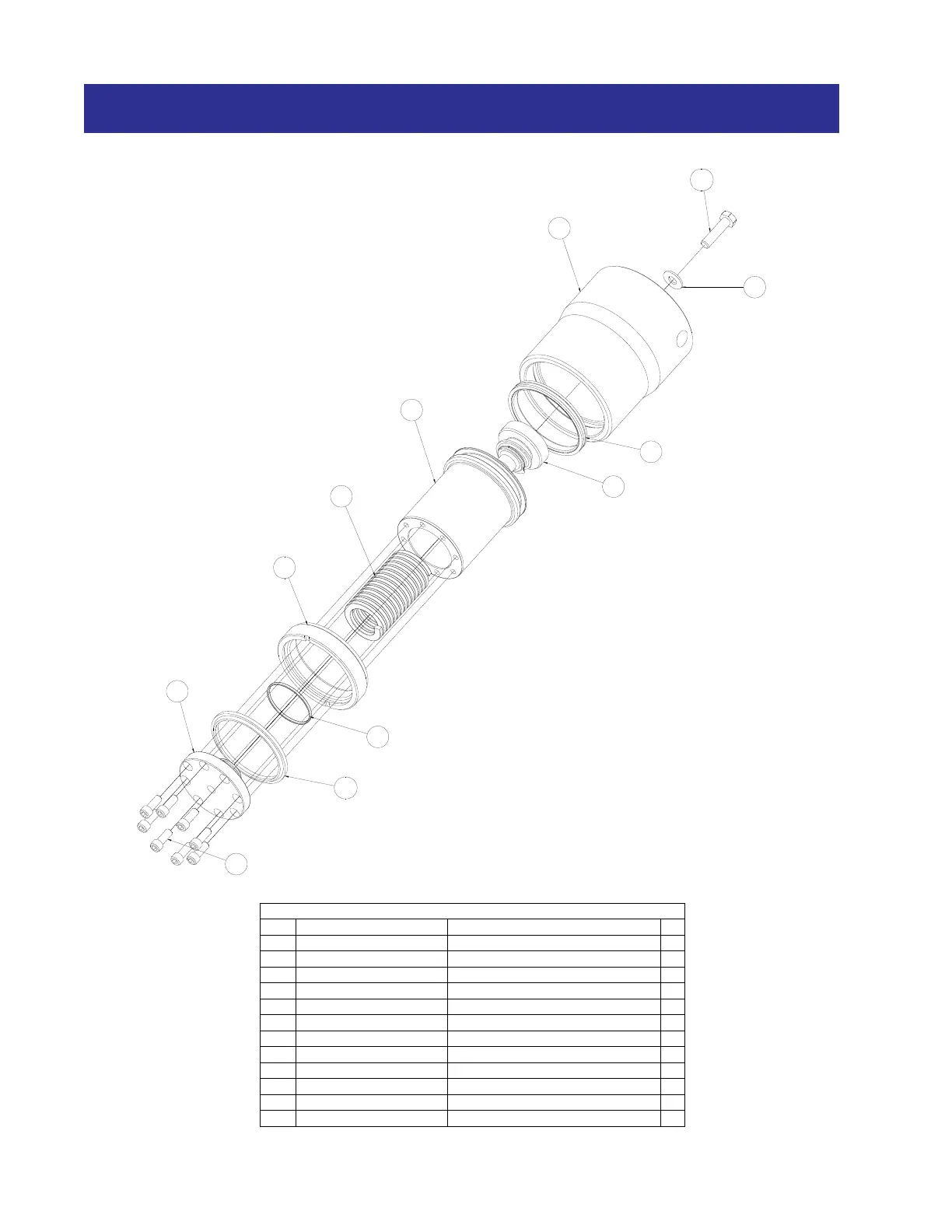

COMPONENT PARTS BREAKDOWN
