2.2.14 Rear Brake Swing Arm Solution & Replacement
Problem: Rear brake swing arm becomes loose, and is hard to fix when vehicle
brakes in suddenly.
Solution:
a) Weld the rear brake swing arm, adjust bolt,
and fastening nut together ;
b) When adjusting the brake, only need adjust
the adjust nut of brake cable .

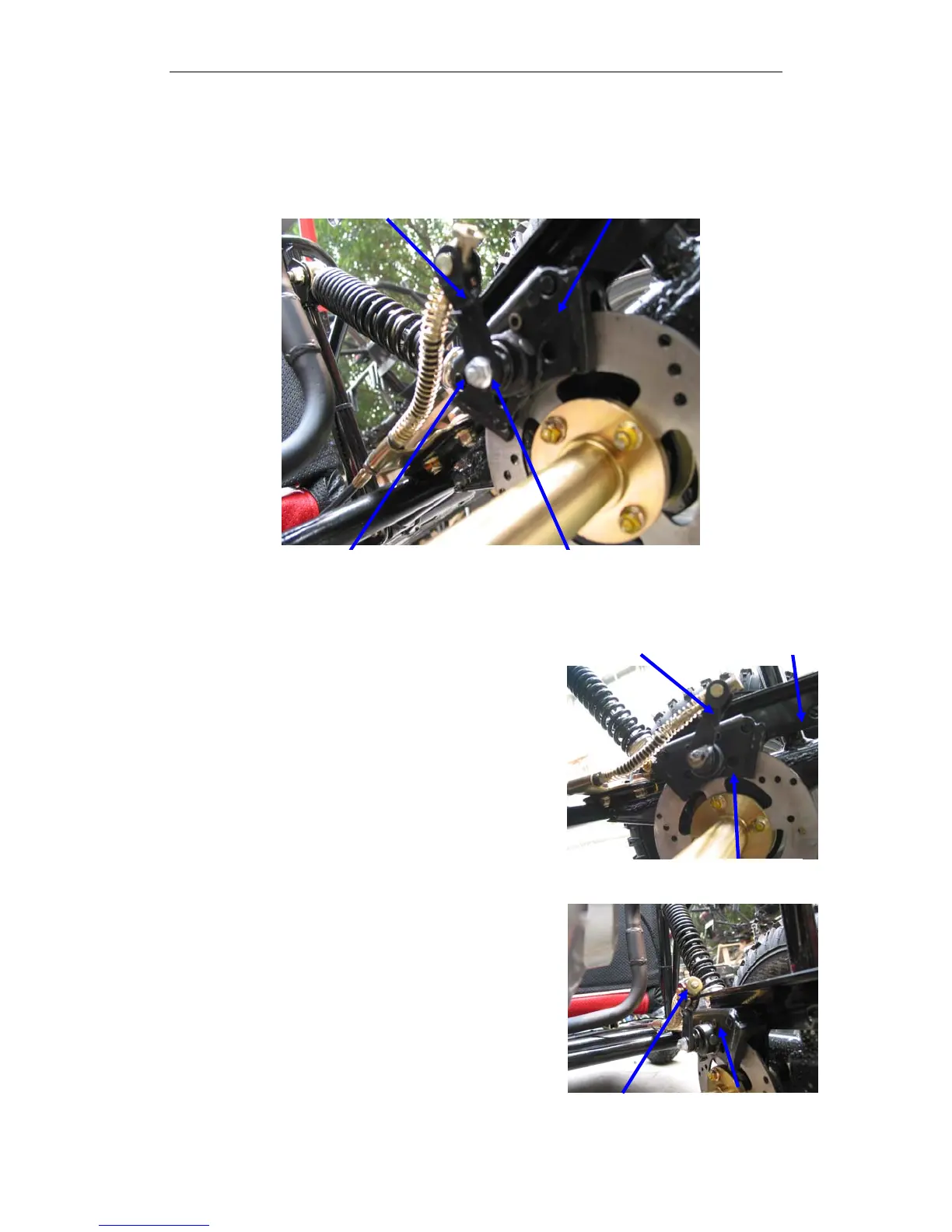

Rear Brake Swing Arm Rear Brake Caliper Assy.
Adjust Bolt Fastening Nut
Rear Brake Swing Arm Rear Brake Caliper Assy.
Welding Spot
Adjust Nut of
Brake Cable
Rear Brake
Caliper Assy.
