Raider Mini 90 (single/double-seat): Service Manual Version：2.0 Feb. 2006
18

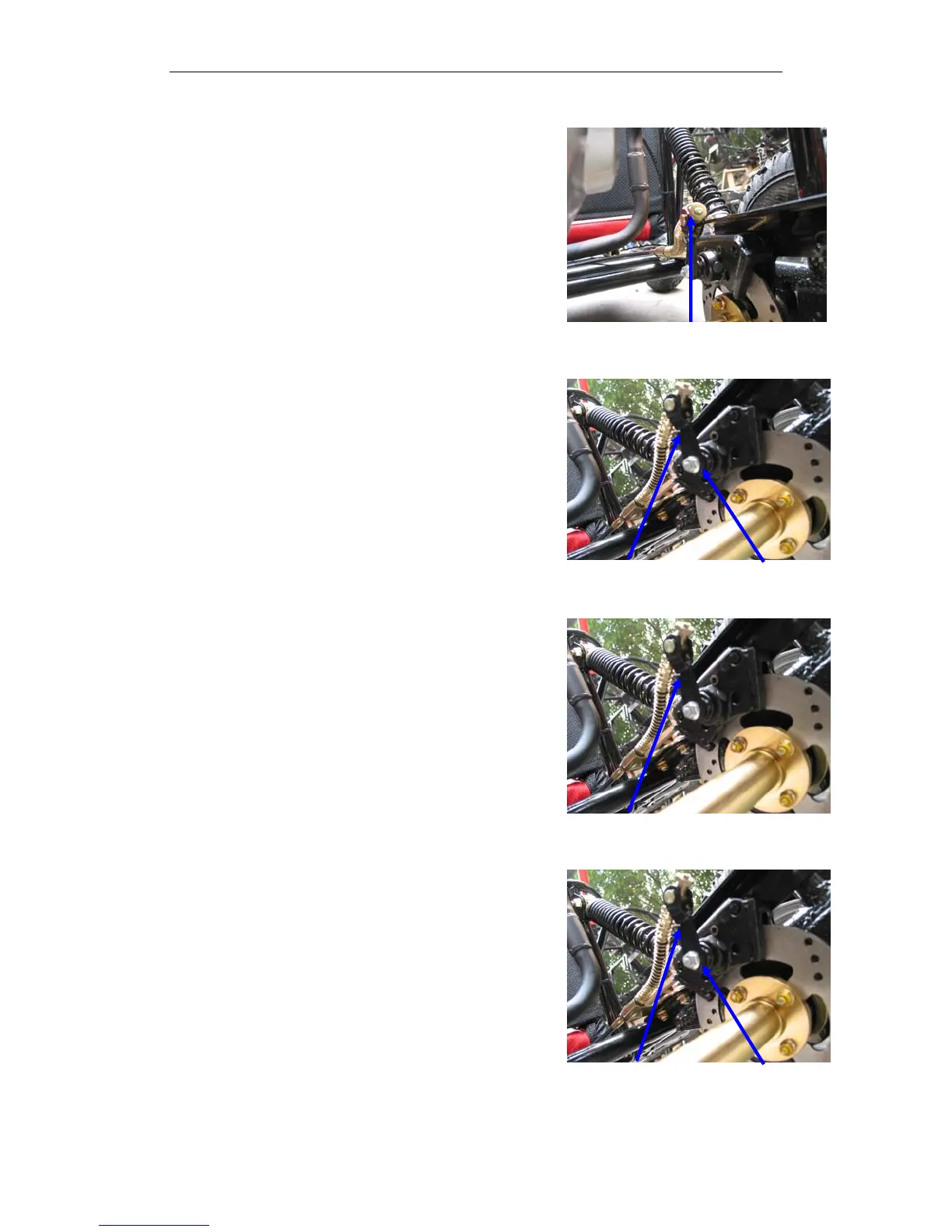

2. Replacement
a) Remove the adjust nut of brake cable;
b) Remove the fastening nut of rear brake
swing arm ;
c) Remove the rear brake swing arm;
d) Assemble the new rear brake swing arm and
fastening nut;
Adjust Nut of Brake Cable
Rear Brake Swing Arm
Fastening Nut
Rear Brake Swing Arm
Fastening Nut
Rear Brake Swing Arm
