Raider Mini 90 (single/double-seat): Service Manual Version：2.0 Feb. 2006
47
z Spec. Unit: mm (in)
Item Standard value Limit value
Length of electric starter carbon brush 12.0mm 4.0mm
z Trouble Shooting
NOTE: Check the following items before looking
for the system failure:
a) If the main fuse has been burned (10A);
b) If the wire of the battery or electric starter
has
got loose;
c) If the battery is leaking.
The electric starter doesn’t work
Undercharged: Below 12.0 V
z Check

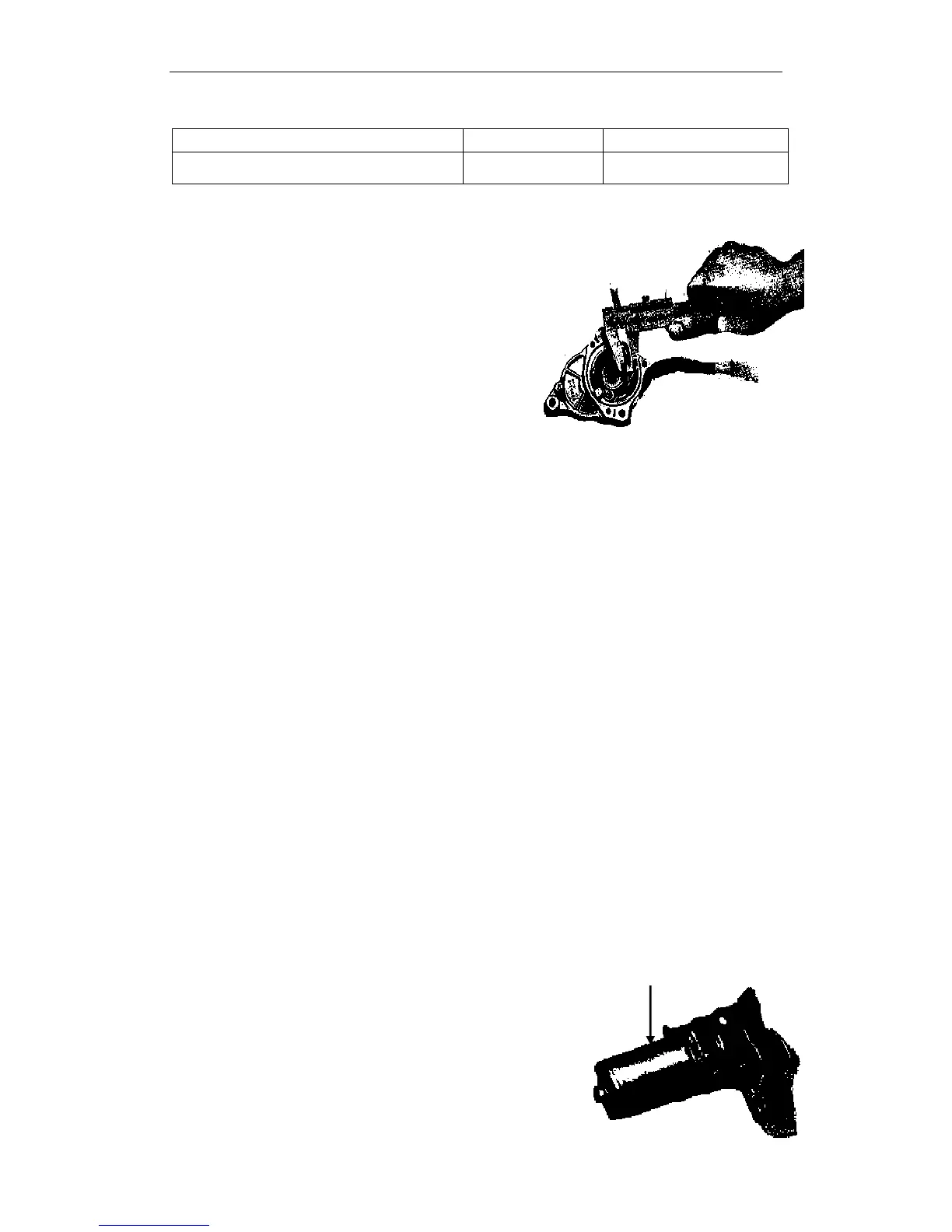

a) Check the carbon brush and measure the length of the brush;
Limit value: 4.0mm
b) Check if the rectifier bar has depigmentized;
The depigmentation of couples of rectifier bars shows the armature coil has
earthed;
NOTE: The rectifier bar can’t be burnished by emery cloth or sand paper.
c) Check the connectivity between couples of rectifier bars;
Check the connectivity between the rectifier bar and the armature shaft;
Rectifier bars: connected;
Armature ---shaft: disconnected;
d) Check the connectivity between the cable terminal and the black wire brush;
Check the connectivity between the cable terminal and the electric starter shell;
If the connecting wire is broken or disconnected with the starter shell, the wire
needs repairing.
Cable terminal --- starter shell: disconnected;
Cable terminal ---brush: connected.
z Assembly
a) Assemble the electric starter;
Align the carbon brush pin with the shell groove;
Electric Starter
