Raider Mini 90 (single/double-seat): Service Manual Version：2.0 Feb. 2006
48
b) Align the rear shell groove with the carbon brush pin;
Install the rear shell;
c) Check if the O-ring is in good condition; replace it if it is defective.
Lubricate the O-ring;
Install the electric starter and fasten the bolt;
Connect the connector of the electric starter;
d) Install the snap ring into the shaft groove;
Install the left crankcase cover.

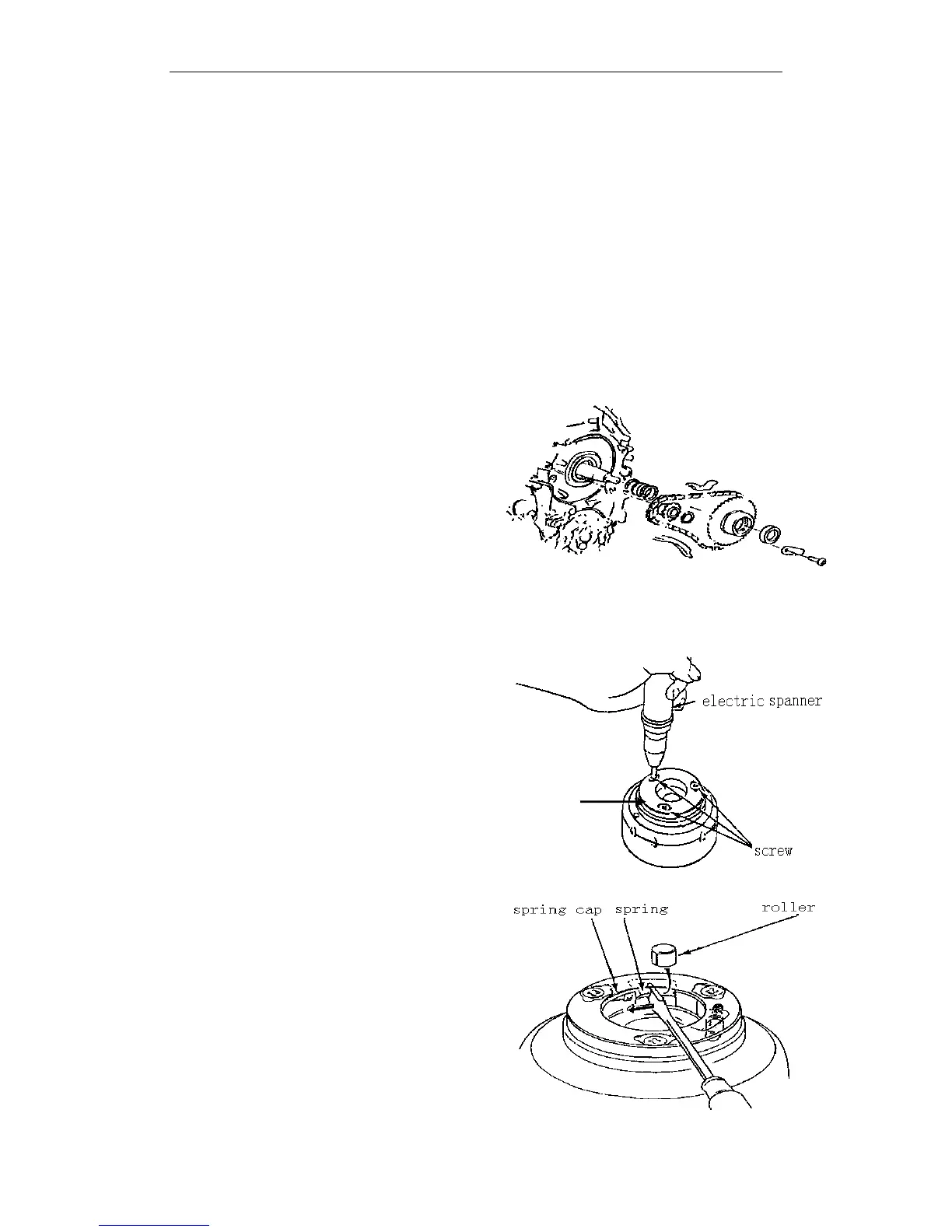

4.6.2 Starting Clutch
z Remove Main/Follower Sprocket
a) Remove the following parts:
--- Flywheel;
---Drive chain slide plate
---Screw and locating plate;
---Snap ring;
b) Remove the starting chain and sprocket
Assembly:
c) Install by reversing the dismantling procedure.
z Remove Starting Clutch
a) Remove the 3 screws and starting clutch
shell;
b) Remove the roller, spring cap and spring.
z Check
a) Check if the roller runs smoothly;
Check if the roller has been over abraded;
Starting Clutch
Shell
