Raider Mini 90 (single/double-seat): Service Manual Version：2.0 Feb. 2006
49
b) Check the abrasion and damage of the
Main/follower sprocket and chain:
Measure the outer diameter of the main
Sprocket.
z Assembly

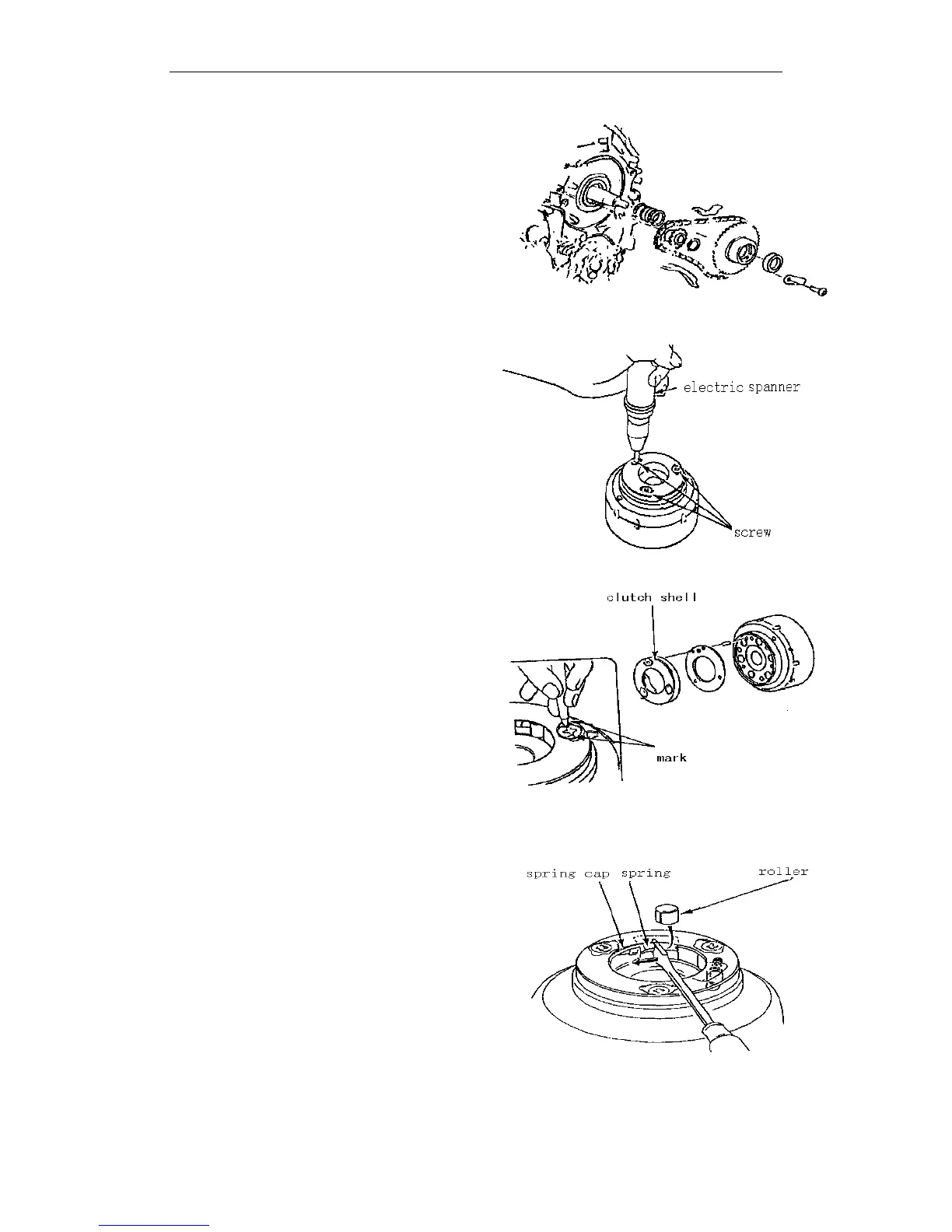

a) Install the starting clutch shell;
Apply the locking agent to the screw
threads of the starting clutch shell;
Install the screws and fasten them;
b) Put a mark on every screw of the clutch
shell;
c) Install the spring, spring cap and roller;
