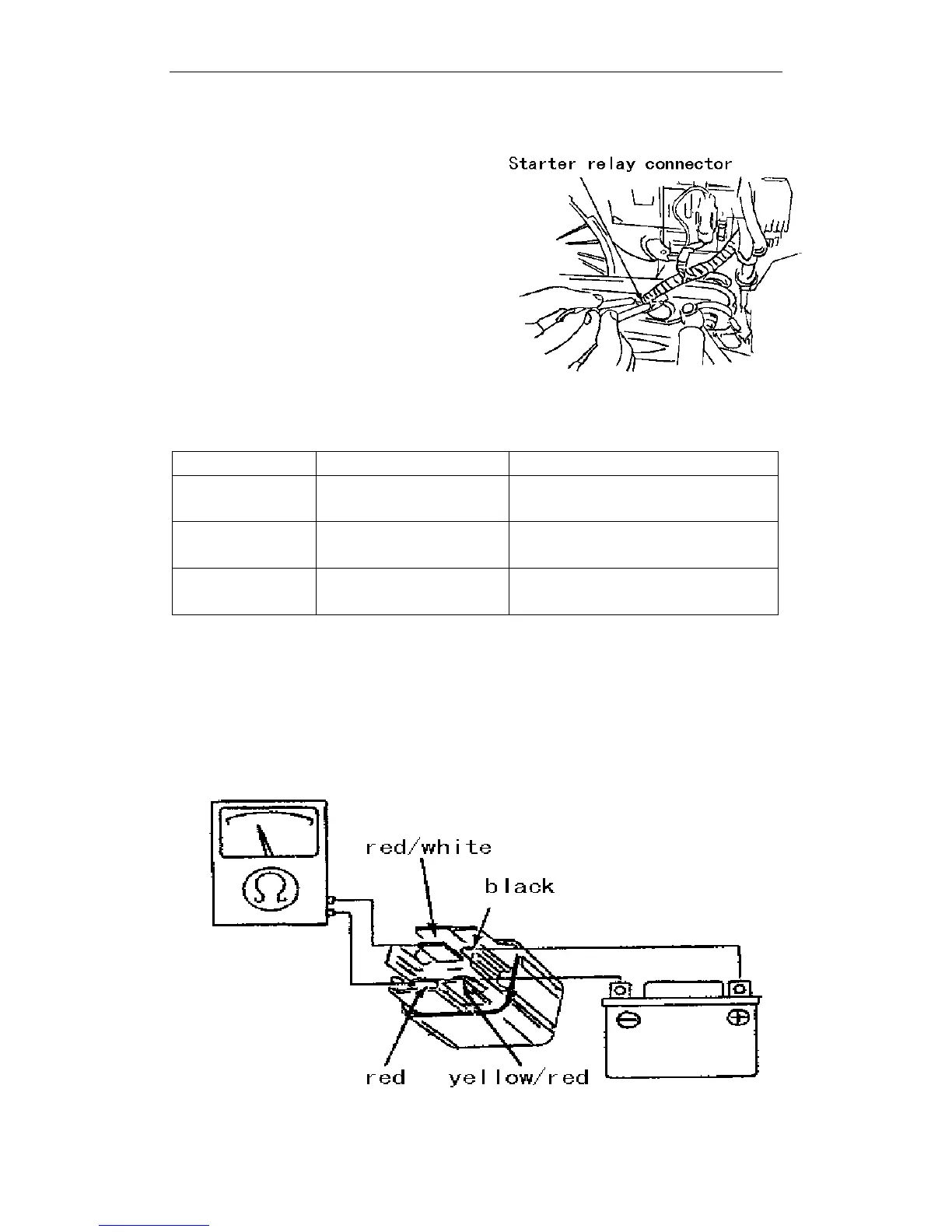

4.6.3 Starting Relay
z System Check
a) Turn on the ignition switch;
Press the starting switch;
It is normal if the starting relay makes
“Kata” Sounds.
b) Pull out the connector from the starting
relay;
Measure the voltage of the connection
terminal;
Check the connectivity of the connection
terminal;
Item Connection Terminal Technical Criterion
Starting relay coil Yellow/red wire and
ground wire
Turn on the starting switch: it
should be connected.
Battery voltage
input wire
Black wire(+)and
ground wire(-)
Turn on the ignition switch: the
battery should be connected.
Electric starter
input wire
Red wire (+)and ground
wire(-)
The battery should be connected.
z Elements Check
a) Connect a DC12V battery between the black wire and yellow/red wire;
b) Connect an ohmmeter between the red wire and red/white wire of the starting
relay; at this time, the circuit should be connected;
c) If the circuit is disconnected, replace the starting relay.
