ES 602 - 802 Cod. 420120228 REV. 1.2
INSTALLATION

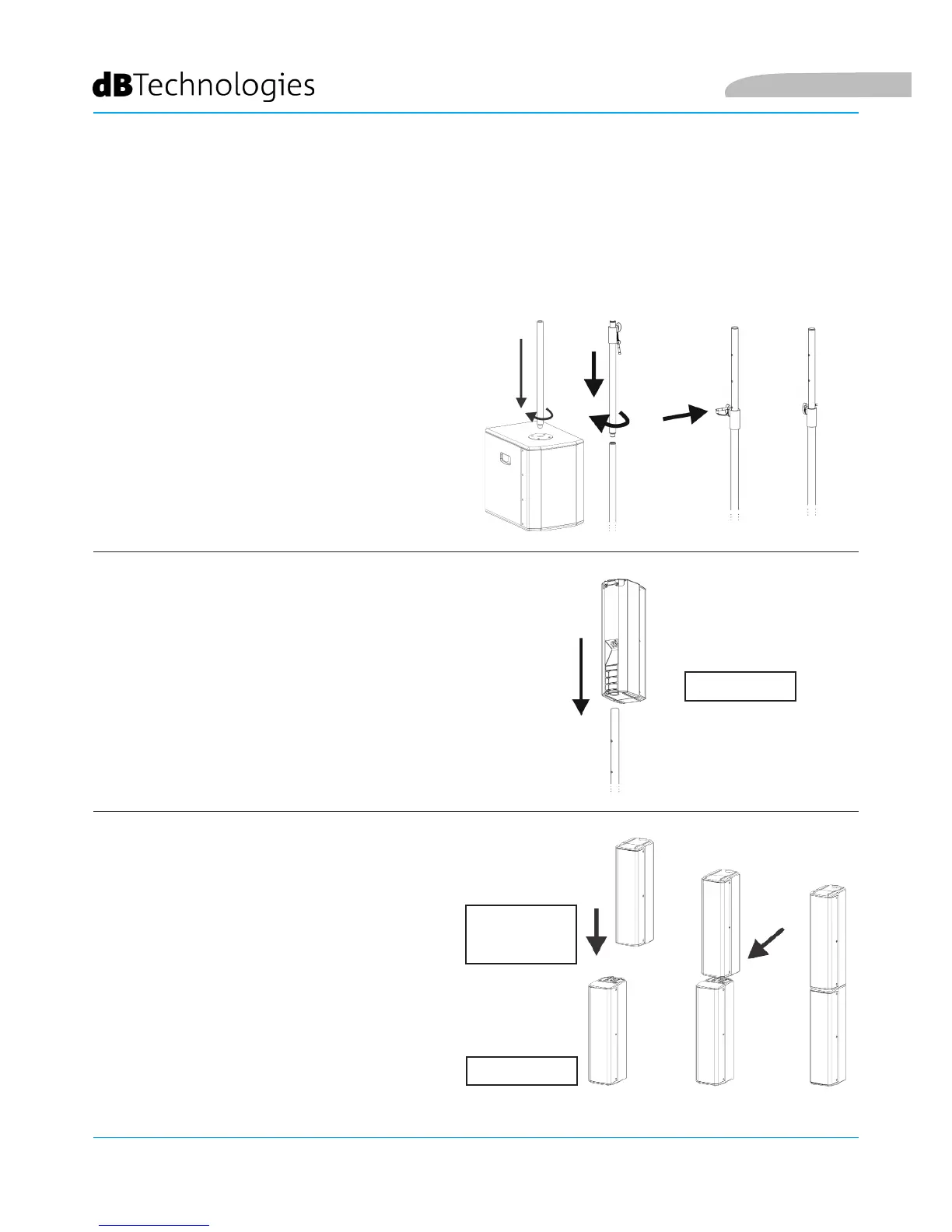

INSTALLING THE SATELLITE (ES 602) OR THE SATELLITES (ES 802) ON THE
SUBWOOFER
1. Screw the lower 25 mm pole into
the specically designed hole on the
subwoofer top side, as shown.
2. Screw the telescopic pole onto the latter.
3. Then adjust the rod height, rst loosening
the hand wheel, then inserting the pin
into the hole of the telescopic rod at the
desired height. Then retighten the hand
wheel.
1. Insert the ES-TOP A speaker on the pole using the
hole located in the lower section.
1. Flip ES-TOP B and stack it onto ES-TOP A
as shown.
2. Then insert ES-TOP B into the guide of ES-
TOP A, ensuring that the contacts touch
each other
3. To complete the installation of the 2
speakers slightly move them to the
outside as shown in the gure until they
lock with a click.
ES 602 and 802:
ES 602:
ES 802:
ES-TOP A
ES-TOP A
ES-TOP B
upside down
