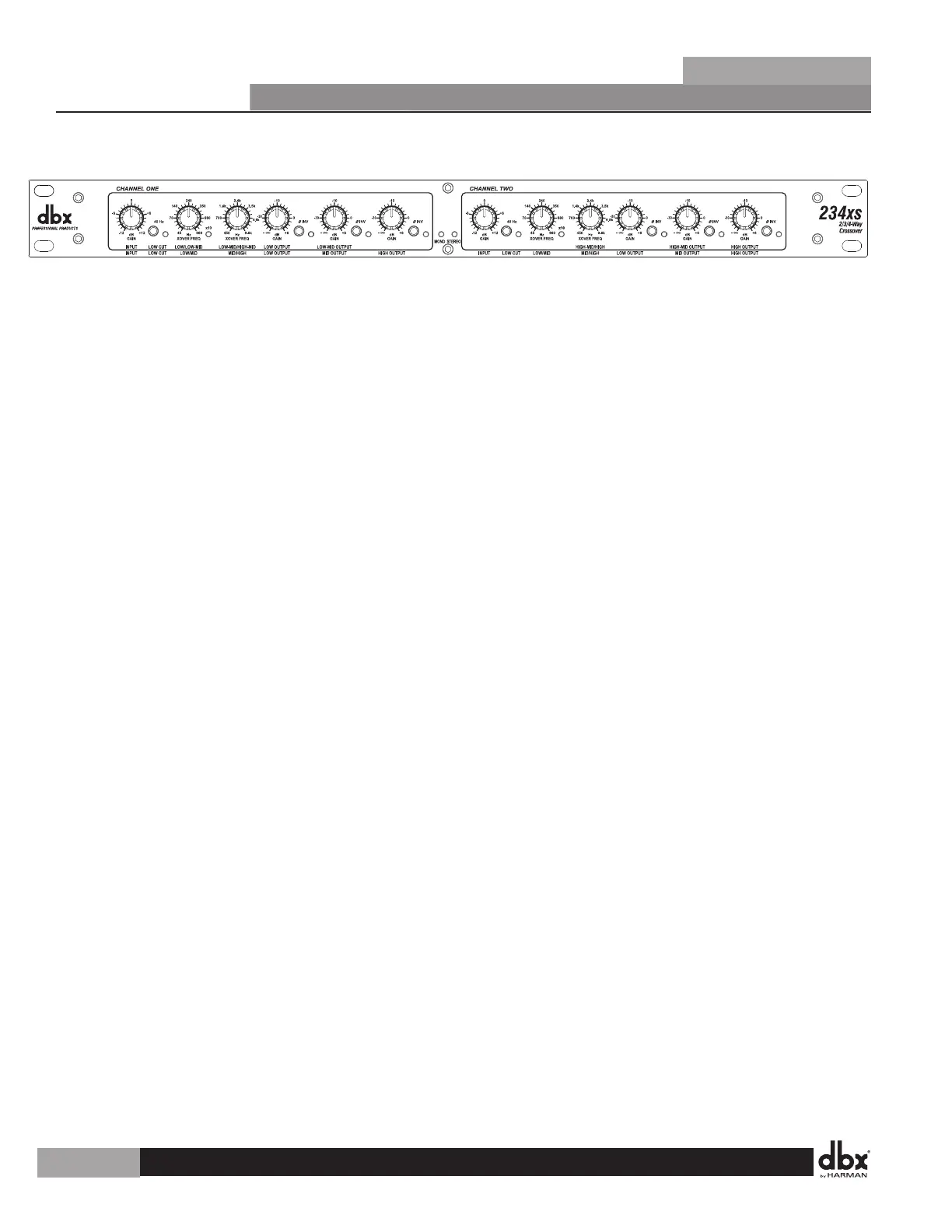

MONO 4-WAY MODE
In 4-way mono operation the controls are marked in red ABOVE the horizontal black line.
Front panel controls not described in this section are not active in mono 4-way mode. LEDs
are disabled for controls which are non-functional in mono 4-way mode.
[1] Input GaIn Controls the INPUT level with +/- 12 dB of gain.
[2] Low/Low-MId Selects crossover point between LOW and LOW-MID
frequencies.
[3] Low-MId/HIGH-MId Selects the crossover point between LOW-MID and
HIGH-MID frequencies.
[4] Low output Controls the LOW frequency output level with a
range of -∞ to +6 dB.
[5] Low-MId output Controls the LOW-MID frequency output level with
a range of -∞ to +6 dB.
[6] HIGH-MId/HIGH Selects the crossover point between HIGH-MID
and HIGH frequencies.
[7] HIGH-MId output Controls the HIGH-MID frequency output level
with a range of -∞ to +6 dB.
[8] HIGH output Controls the HIGH frequency output level with a
range of -∞ to +6 dB.
[9] Low Cut Switch for selecting the 40 Hz high pass filter. An
LED indicates the selection.
[10] x10 LEd Indicates that the LOW/LOW-MID crossover
frequency range is 450 Hz to 9.6 kHz.
[11] pHasE InvErt Switch for reversing the polarity on the LOW
Output. An LED indicates the selection.
[12] pHasE InvErt Switch for reversing the polarity on the LOW-MID
Output. An LED indicates the selection.
[13] Mono LED indicating mono mode operation.
[14] pHasE InvErt Switch for reversing the polarity on the HIGH-MID
Output. An LED indicates the selection.
[15] pHasE InvErt Switch for reversing the polarity on the HIGH
Output. An LED indicates the selection.
Section 2
Operating Controls
5
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
