VT3600 Installation Guide | 10

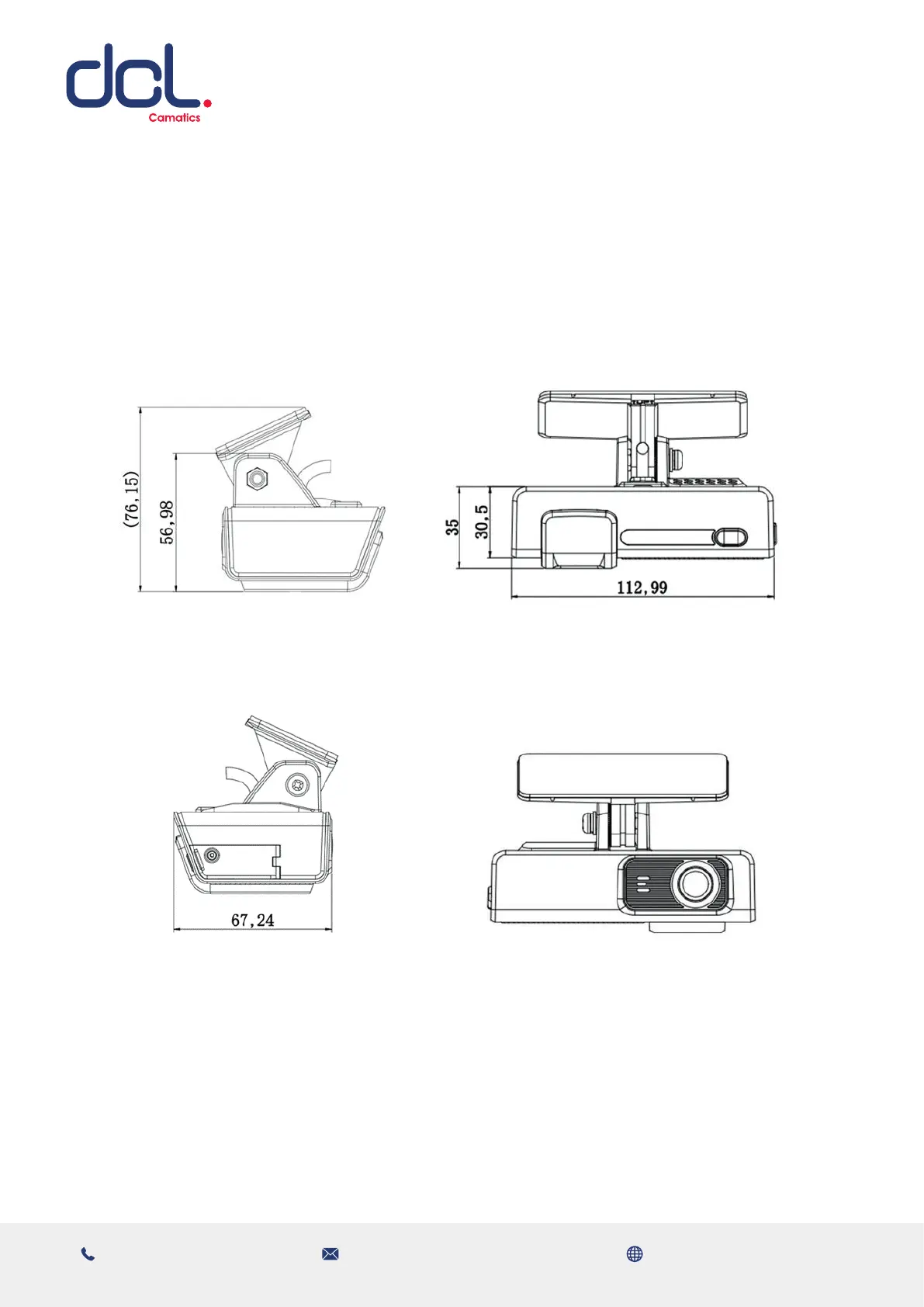

4. Dimensional Drawings (Unit: mm)
Take out the Dashcam (power-o), and use the Allen key in the kit to open the card slot panel
on the right of the Dashcam by turning counterclockwise.
5. System Connection Diagram
The standard packing list contains a standard power cable that supports ACC power supply
and vehicle connection. You can select the OBD power cable which supports OBD power
supply and vehicle connection.
5.1 Connection Diagram for ACC Power Supply System
Right view Rear view
Left view Front view
