VT3600
VT3600 Installation Guide | 11

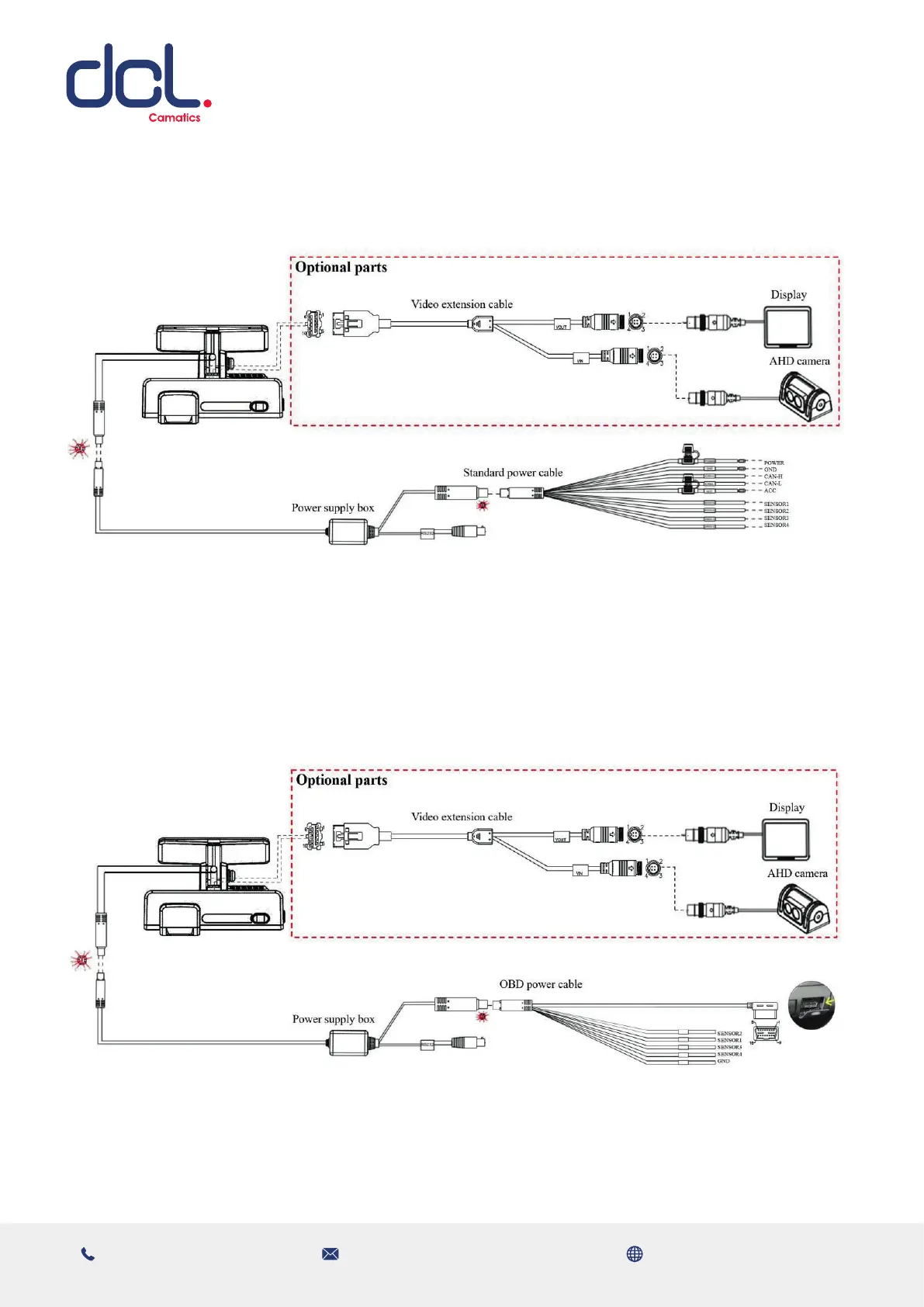

5.1 Connection Diagram for ACC Power Supply System
VT3600
5.2 Connection Diagram for OBD Power Supply System
