VT3600 Installation Guide | 13

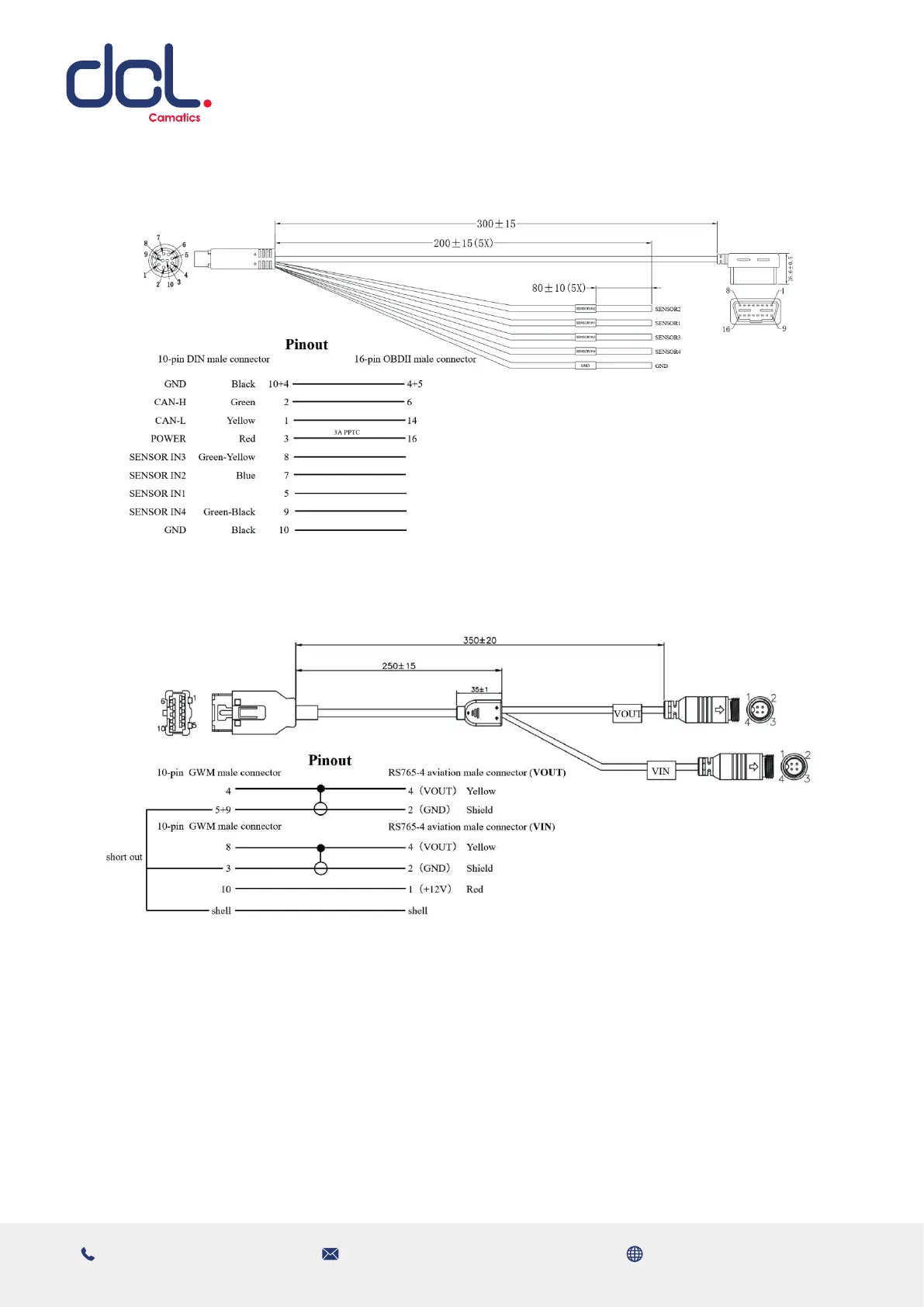

5.3.3 OBD Power Cable Connector Pinout
5.3.4 Video Output Cable Connector Pinout
6. Notice
1. The product needs to be installed by a professional, otherwise there may be a risk
of electric shock or damage to the vehicle.
2. The surface temperature may exceed 60°C when the product is in use under
direct sunlight.
3. Please do not touch the surface exposed to direct sunlight to avoid any injury.
