VT3600 Installation Guide | 12

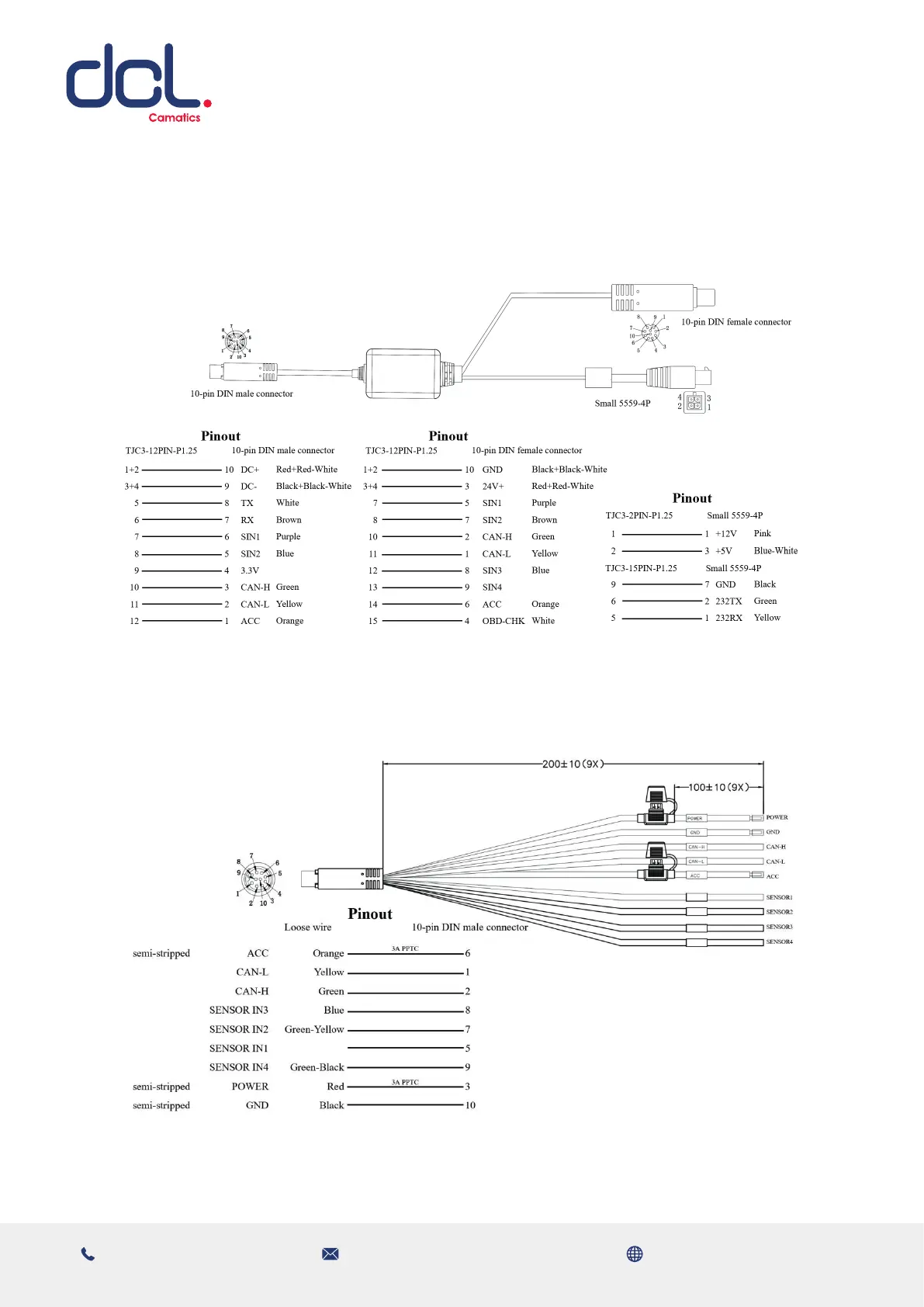

5.3 Cable Connector Pinouts
5.3.1 Power Supply Box Connector Pinout
5.3.2 Standard Power Cable Connector Pinout
