DCS ATrack AK11 - LED Indicator Meanings

Confidential Document
Page 11 of 27
3
3
.
.
7
7
.
.
L
L
E
E
D
D
I
I
n
n
d
d
i
i
c
c
a
a
t
t
o
o
r
r
s
s

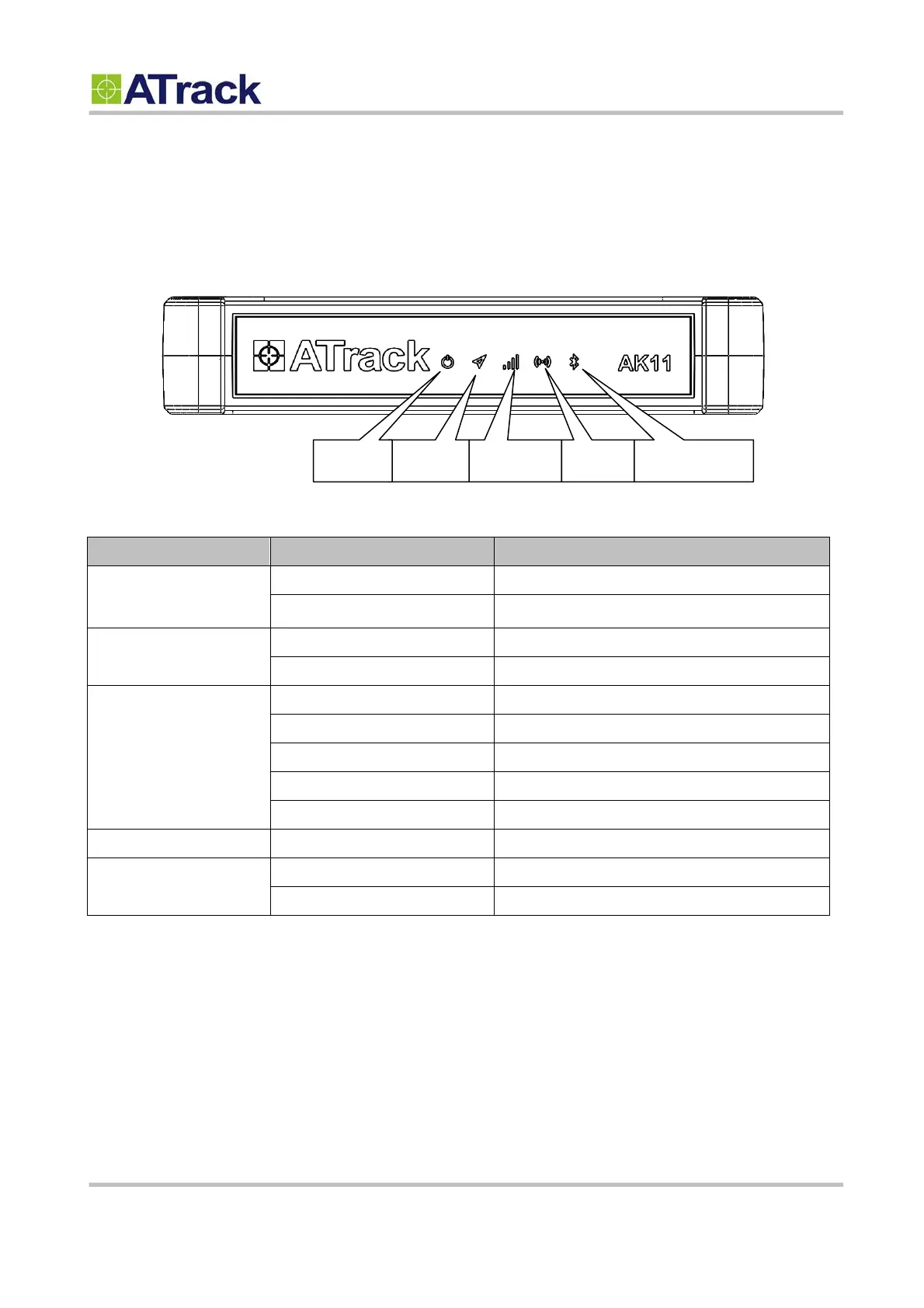

The following figure shows the location of AK11’s LEDs.
LED
Indication
Description
PWR (Green)
Solid On
In full operation mode
1 blink (0.1 sec.) in every 8 sec.
In sleep mode
GPS (Red)
0.7 sec. On, 0.7 sec. Off
Searching for GPS signal
Solid On
Position fixed
WWAN (Red)
Off
WWAN module off
0.7 sec. On, 0.7 sec. Off
Searching for WWAN signal
0.2 sec. On, 2 sec. Off
Registered to WWAN network
2 blinks in every 2 sec.
Connected to WWAN network
Continuous blinking
SIM PIN Error
WIFI Hotspot (Red)
Bluetooth
Solid On
If a BT gadget is connected
Off
No BT gadget is connected
Note: In the case of SIM PIN Error, the device will check the AT$SPIN every 10 minutes and try to
access the SIM again. The PIN will be validated 3 times and if it fails the 3
rd
attempt, including the first
inserting time, the SIM card will be locked. Once the SIM is locked, you need to contact your GSM
carrier for the PUK in order to unlock the SIM card using your cell phone.
PWR
GPS
WWAN
WIFI
Bluetooth
