DCS ATrack AK11 - Power and I;O Pinout Details

Confidential Document
Page 7 of 27
3
3
.
.
3
3
.
.
P
P
o
o
w
w
e
e
r
r
I
I
/
/
O
O
P
P
i
i
n
n
A
A
s
s
s
s
i
i
g
g
n
n
m
m
e
e
n
n
t
t
Pin1
Yellow
Pin3
Purple
Pin5
Pink
Pin7
White
Pin9
Dark Brown
Pin11
Light Blue
Pin13
Red
Pin2
Dark Green
Pin4
Blue
Pin6
Light Brown
Pin8
Orange
Pin10
Gray
Pin12
Green
Pin14
Black

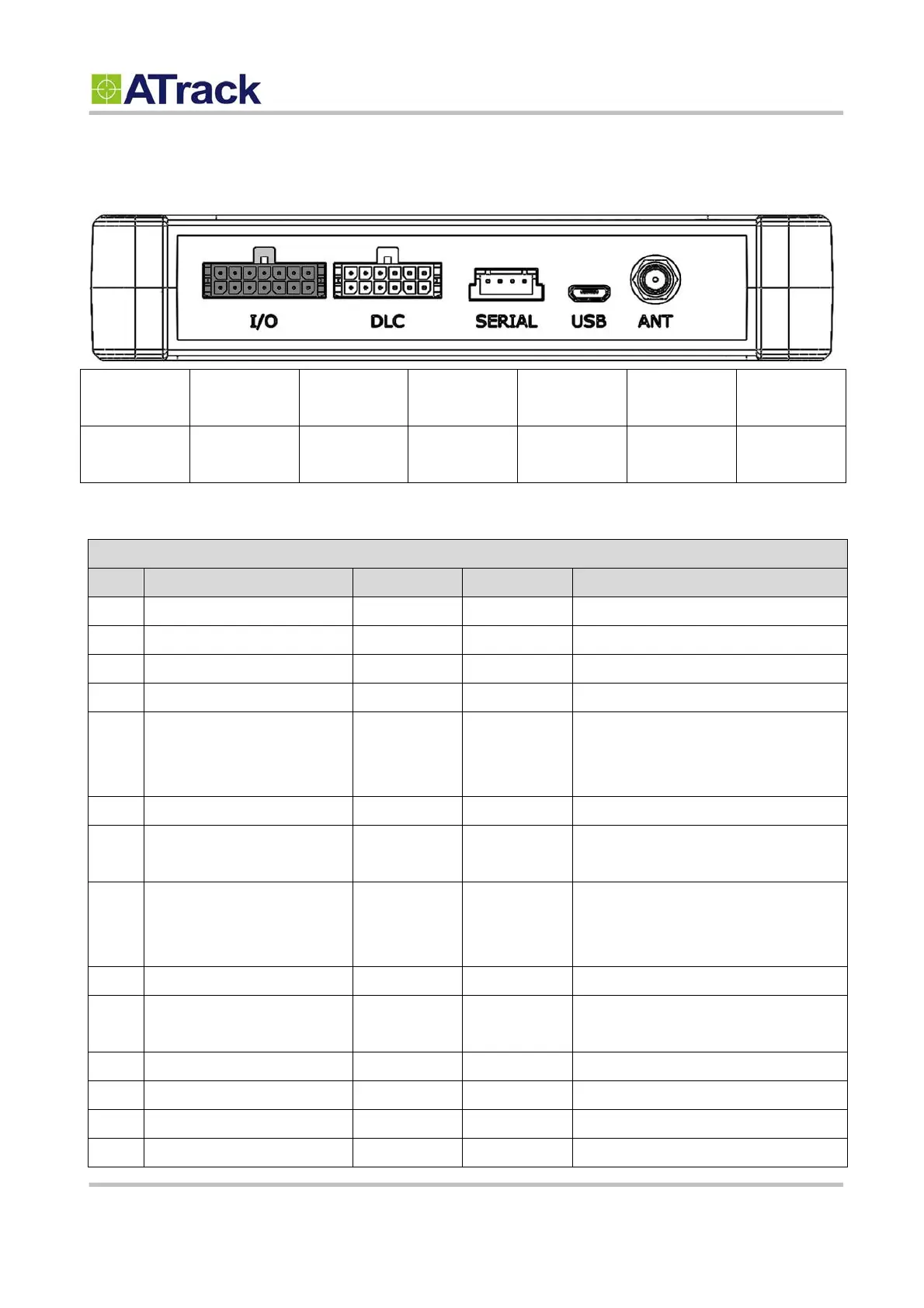

The following table describes the function of each bare wire.
Power I/O Connector
Pin#
Function
Color
Designation
Note
1
ACC Input
Yellow
ACC
Ignition status positive trigger input
2
General Input1
Dark Green
IN1
Positive trigger input
3
General Input2
Purple
IN2
Negative trigger input
4
General Input3
Blue
IN3
Negative trigger input
5**
General Input4 (Default)
General Output5
Analog Input1
Pink
IN4/O5/A1
Positive trigger input
Open collector output (Max.300mA)
Analog input (DC0V~40V)
6
General Input5
Light Brown
IN5
Negative trigger input
7**
General Input6
General Output1 (Default)
White
IN6/O1
Negative trigger input
Open collector output (Max.300mA)
8**
General Input7
General Output2 (Default)
Analog Input2
Orange
IN7/O2/A2
Positive trigger input
Open collector output (Max.300mA)
Analog input (DC0V~40V)
9
General Output3
Dark Brown
O3
Open collector output (Max.300mA)
10**
General Input8
General Output4 (Default)
White
IN8/O4
Negative trigger input
Open collector output (Max.300mA)
11
Analog Input3
Light Blue
A3
Analog input (DC0V~5V)
12
1-Wire Protocol Input
Green
1W
1-Wire Data Input
13
Main power input
Red
PWR
DC 8V~40V DC input
14
Common ground
Black
GNT
Ground
