DCS BGA36-BQAR User Manual

28
ITEM DESCRIPTION PART NO.
9Service Panel, BGA36-BQAR,BGA48-BQR 41196
Service Panel,BGA48-BQAR 41196-01
10 Firebox, BGA36-BQAR, BGA48-BQR 32981
Firebox, BGA48-BQAR 32981-01
11 Side Grill Box R/H 32963-01
12 Bottom/Back Panel,BGA36-BQAR 32954
Bottom/Back Panel,BGA48-BQAR,BGA48-BQR 32927
13 Side Grill Box L/H 32963-02
14 Landing Ledge,BGA36-BQAR 32979
Landing Ledge, BGA48-BQAR,BGA48-BQR 32923
15 Rack Roller 14197-02
16 Front Baffle,BGA36-BQAR 32986
Front Baffle,BGA48-BQR 32985
Front Baffle,BGA48-BQAR 32985-01
17 Safety Valve Box 33068
18 Shield, Smoker Valve 41198
19 Drip Pan Assembly, BGA36-BQAR 32960-01
Drip Pan Assembly, BGA48-BQAR,BGA48-BQR 32960-02
20 Grease Tray 32771
21 Screw 15002-17
22 Keps Nut 15021-04
23 Nut 15004-09
24 Drip Pan,BGA36-BQAR 32955
Drip Pan,BGA48-BQAR,BGA48-BQR 32769
25 Handle,Drip Pan,BGA36-BQAR 32956
Handle,Drip Pan,BGA48-BQAR,BGA48-BQR 32770
26 Screw 15002-41
27 Logo 17382-01
28 Valve Panel,BGA36-BQAR 32959-PA
Valve Panel, BGA48-BQR 32987-PA
Valve Panel, BGA48-BQAR 32959-01-PA
29 *Insulated Jacket 36, Stainless Steel BGA36-IJS
*Insulated Jacket 48,Stainless Steel BGA48-IJS
* For use when building into
combustible enclosures (see
page 11 for built-in details)

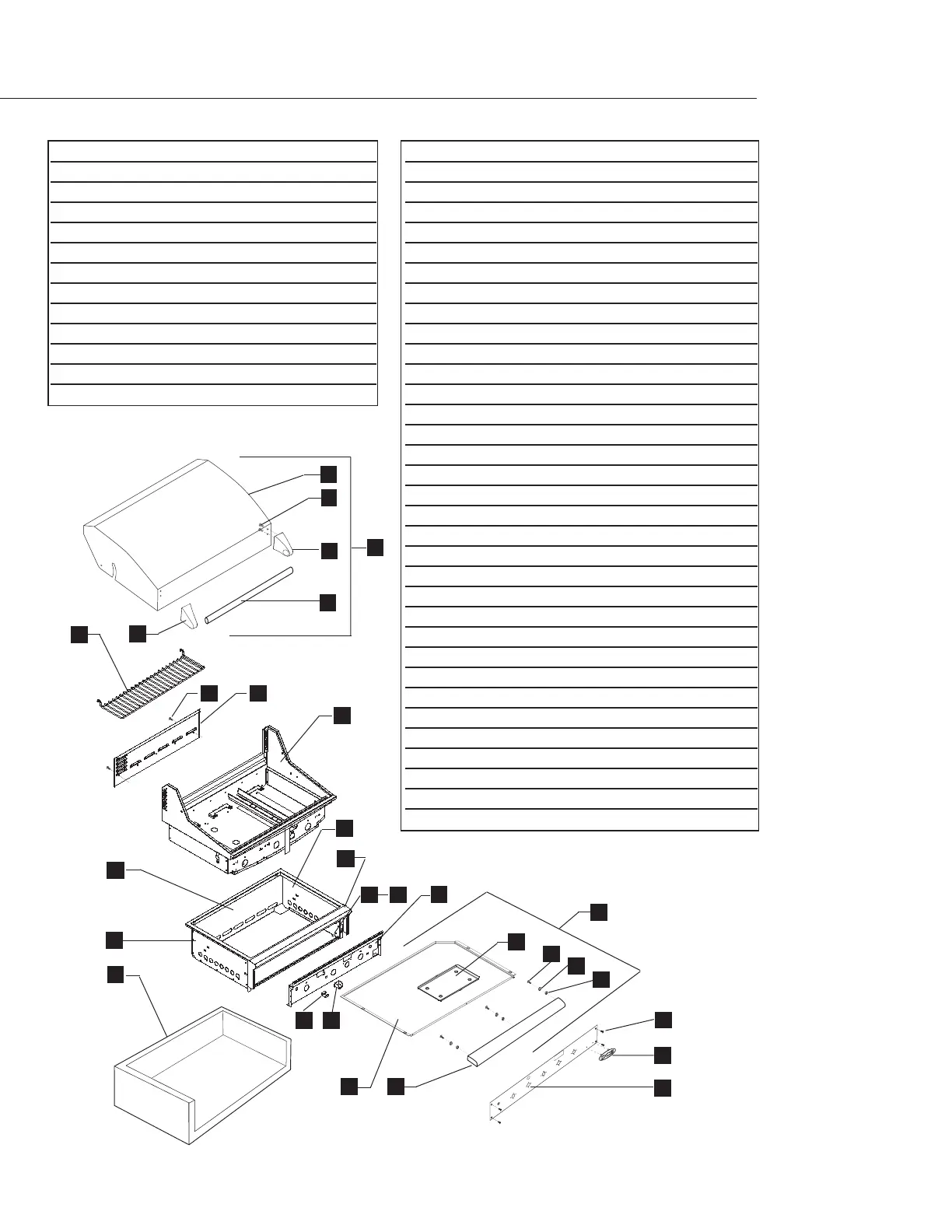

GRILL BODY PARTS LIST
20
7
3
5
23
25
21
29
24
22
19
2
4
11
9
10
14
13
12
1
6
8
15
16
17
18
22
26
27
28
ITEM DESCRIPTION PART NO.
1Lid Assembly,BGA36-BQAR, BGA48-BQR 32992
Lid Assembly,BGA48-BQAR 32992-01
2Lid,BGA36-BQAR,BGA48-BQR 32993
Lid,BGA48-BQAR 32993-01
3Bolt 15003-06
4Stanchion,Lid Handle,R/H 18372-01
5Lid Handle,BGA36-BQAR, BGA48-BQR 55773-05
Lid Handle,BGA48-BQAR 55773-06
6Stanchion,Lid Handle,L/H 18372-02
7Warming Rack, BGA36-BQAR,BGA48-BQR 32248-01
Warming Rack, BGA48-BQAR 32248-02
8Screw 15001-23

DCS BGA36-BQAR Specifications

General

Burners	3
Material	Stainless Steel
Configuration	Freestanding
Number of Burners	3
Grill Material	Stainless Steel
Total BTUs	75, 000 BTU
Width	36 inches
BTU	25, 000 BTU
Fuel Type	Natural Gas or Liquid Propane
