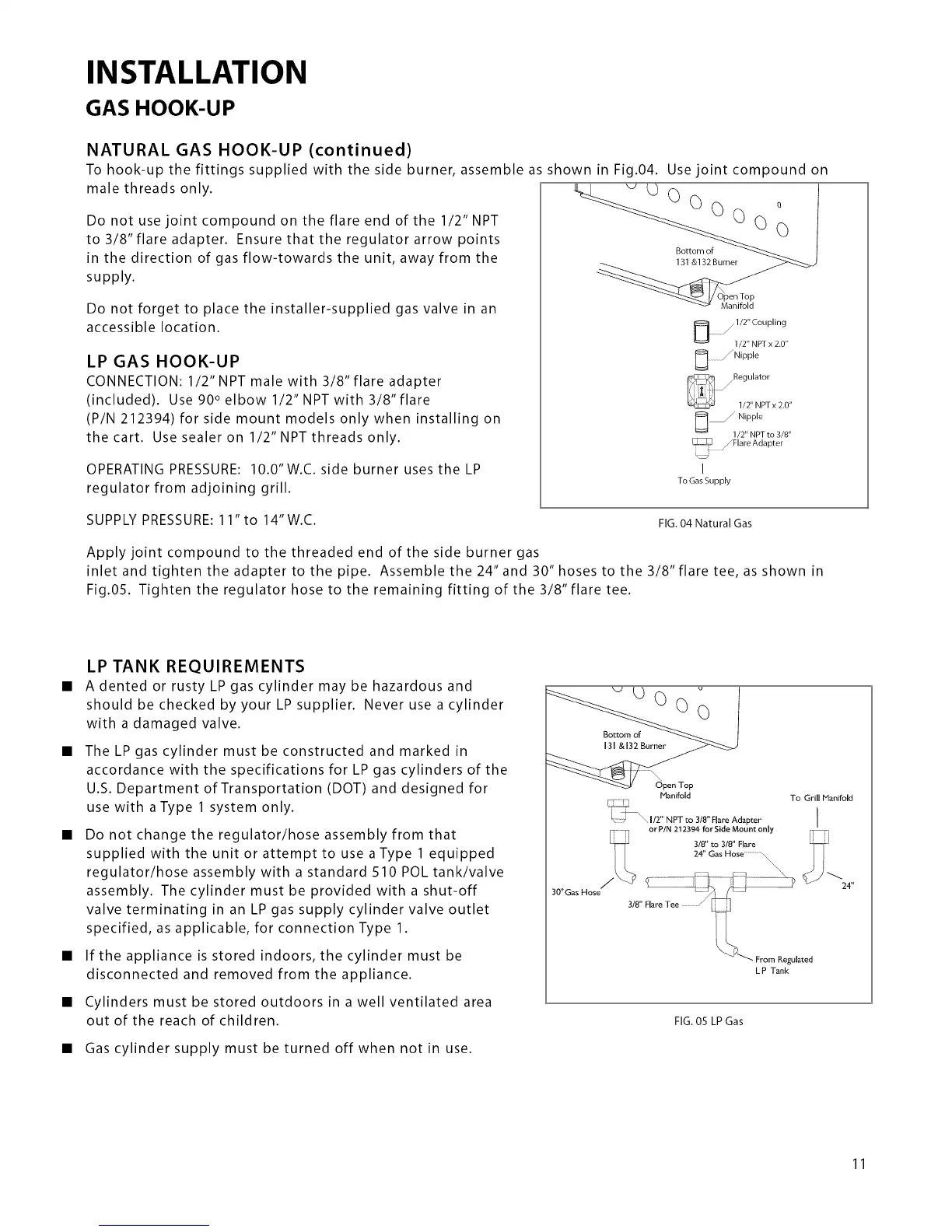

INSTALLATION
GAS HOOK-UP
NATURAL GAS HOOK-UP (continued)
To hook-up the fittings supplied with the side burner, assemble as shown in Fig.04.
male threads only.
Do not use joint compound on the flare end of the 1/2" NPT
to 3/8" flare adapter. Ensure that the regulator arrow points
in the direction of gas flow-towards the unit, away from the
supply.
Do not forget to place the installer-supplied gas valve in an
accessible location.
LP GAS HOOK-UP
CONNECTION: 1/2"NPT male with 3/8"flare adapter
(included). Use 90 ° elbow 1/2"NPTwith3/8"flare
(P/N 212394) for side mount models only when installing on
the cart. Use sealer on 1/2" NPT threads only.
OPERATING PRESSURE: 10.0"W.C. sideburner uses theLP
regulator from adjoining grill.
Use joint compound on
0 _l/2"Coupling
........... 1/2"NPTx2.0"
D _Nipple
_ Regulator
1/2" NPT x 2.0"
_ Nipple
1/2" NPT to 3/8"
_F are Adapter
I
To Gas Supply
SUPPLY PRESSURE: 11"to 14"W.C.
FIG. 04 Natural Gas
Apply joint compound to the threaded end of the side burner gas
inlet and tighten the adapter to the pipe. Assemble the 24" and 30" hoses to the 3/8" flare tee, as shown in
Fig.05. Tighten the regulator hose to the remaining fitting of the 3/8"flare tee.
LP TANK REQUIREMENTS
A dented or rusty LP gas cylinder may be hazardous and
should be checked by your LP supplier. Never use a cylinder
with a damaged valve.
The LP gas cylinder must be constructed and marked in
accordance with the specifications for LP gas cylinders of the
U.S. Department of Transportation (DOT) and designed for
use with a Type 1 system only.
Do not change the regulator/hose assembly from that
supplied with the unit or attempt to use a Type 1 equipped
regulator/hose assembly with a standard 510 POL tank/valve
assembly. The cylinder must be provided with a shut-off
valve terminating in an LP gas supply cylinder valve outlet
specified, as applicable, for connection Type 1.
If the appliance is stored indoors, the cylinder must be
disconnected and removed from the appliance.
Cylinders must be stored outdoors in a well ventilated area
out of the reach of children.
• Gas cylinder supply must be turned off when not in use.
30"Gas Hose t
Open Top
Manifold To Grill Manifold
L_:_ ll2" NPT t° 3/8" Flare Adapter I
or P/N 212394 for Side Mount only
L P Tank
FIG. 05 LP Gas
11
