DCS CS-364G User Manual

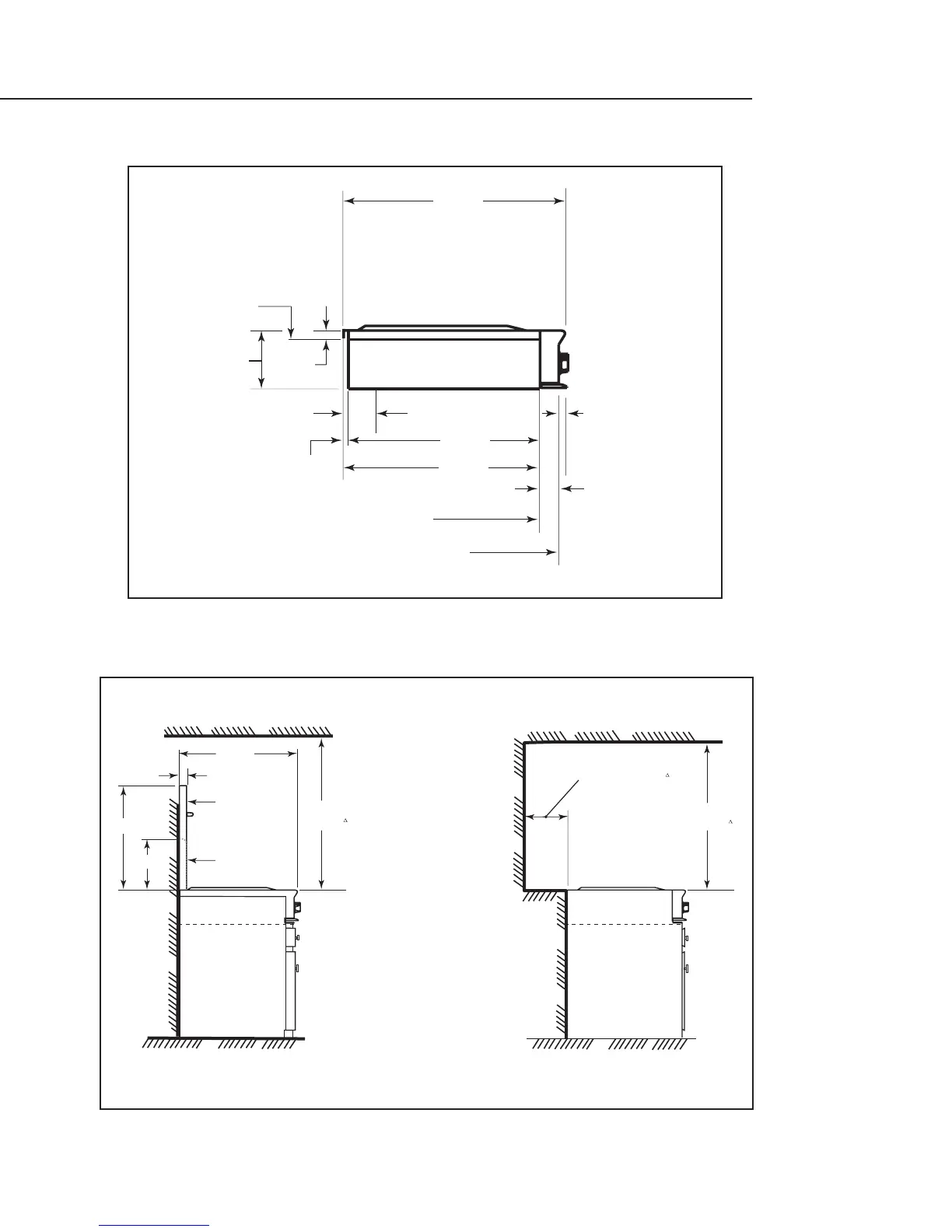

CABINET PREPARATION
10
8 7/16"
22-3/4"
26 1/2"
23-1/4"
3" To Center Line
of Gas Inlet
1/2"
1/2"
5/8"
Cabinet face for installation
with projecting control panel
Cabinet face for installation
with flush control panel
2-1/2"
Countertop level
Fig. 4
30"
26-1/2"
12" Min. to Combustibles
without Backguard
15/16"
12"
Wall Mount
Low Backguard
Base Cabinet
Wall Mount
Full Backguard
36” Min. to
Combustibles
36” Min. to
Combustibles
Fig. 5
Countertop Level
Cabinet face for installation
with projecting control panel
Cabinet face for installation
with flush control panel
8 7/16”
3”To Center Line
of Gas Inlet
1/2”
22 3/4”
23 1/4”
2 1/2”
1/2”
AB
26 1/2”
5/8”
